Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

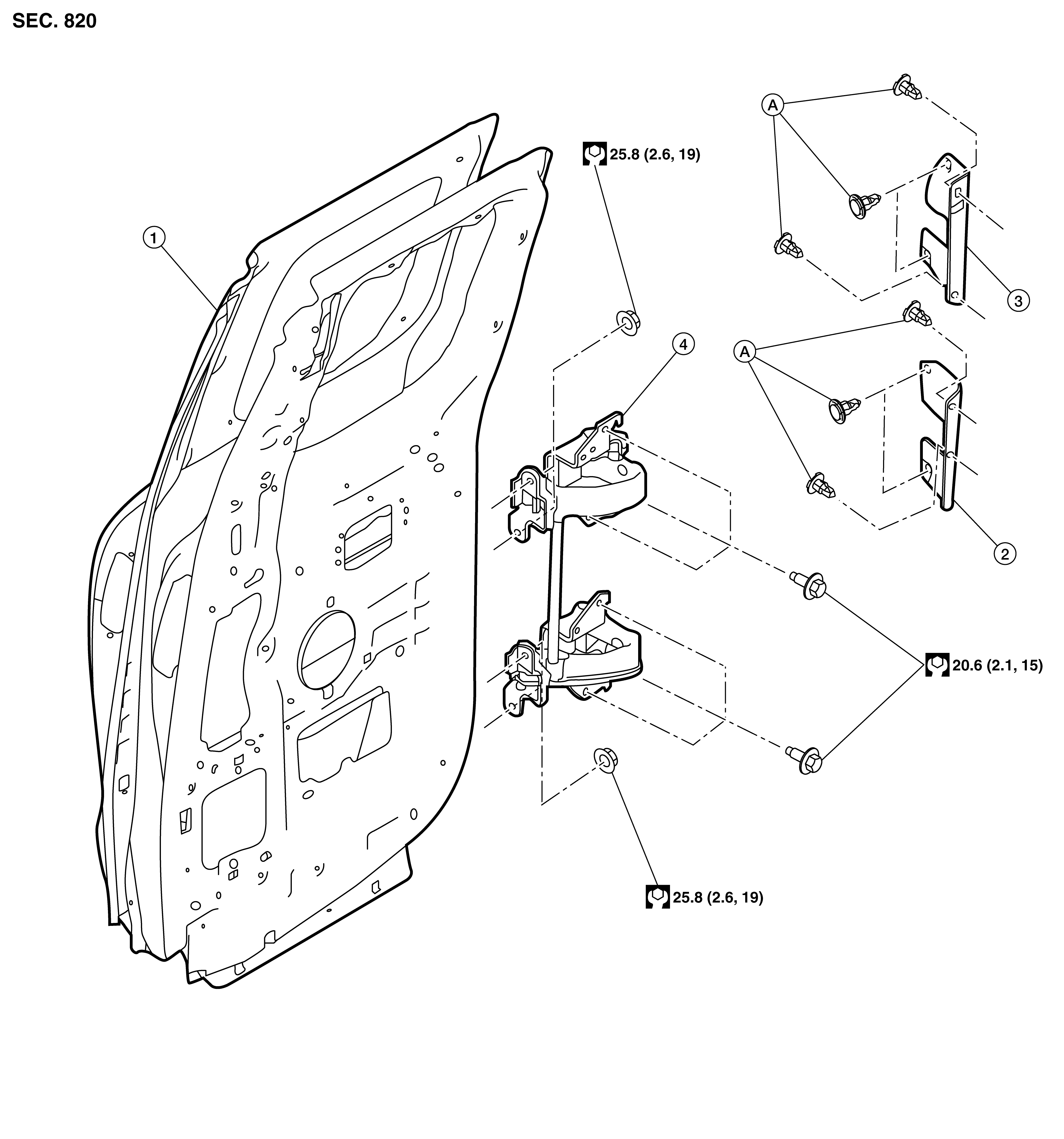

Fig 1: Rear Door Replacement Components With Torque Specifications (King Cab ®)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear door panel	2.	Rear door hinge cover lower	3.	Rear door hinge cover upper
4.	Rear door hinge	A.	Clip

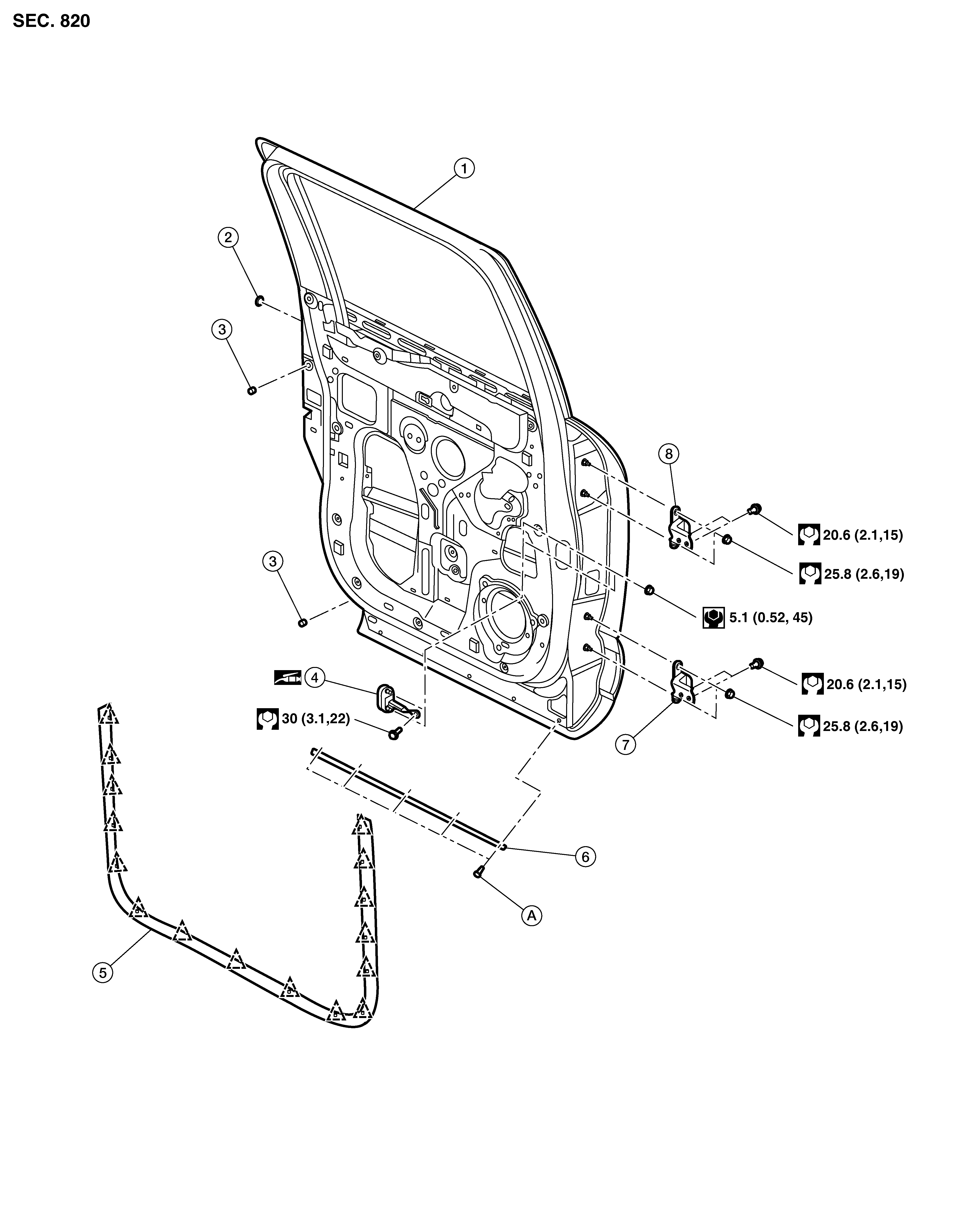

Fig 2: Rear Door Replacement Components With Torque Specifications (Crew Cab)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear door panel	2.	Grommet	3.	Bumper rubber
4.	Door check link	5.	Door weather-strip	6.	Door parting seal
7.	Door lower hinge	8.	Door upper hinge		Clip
