Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

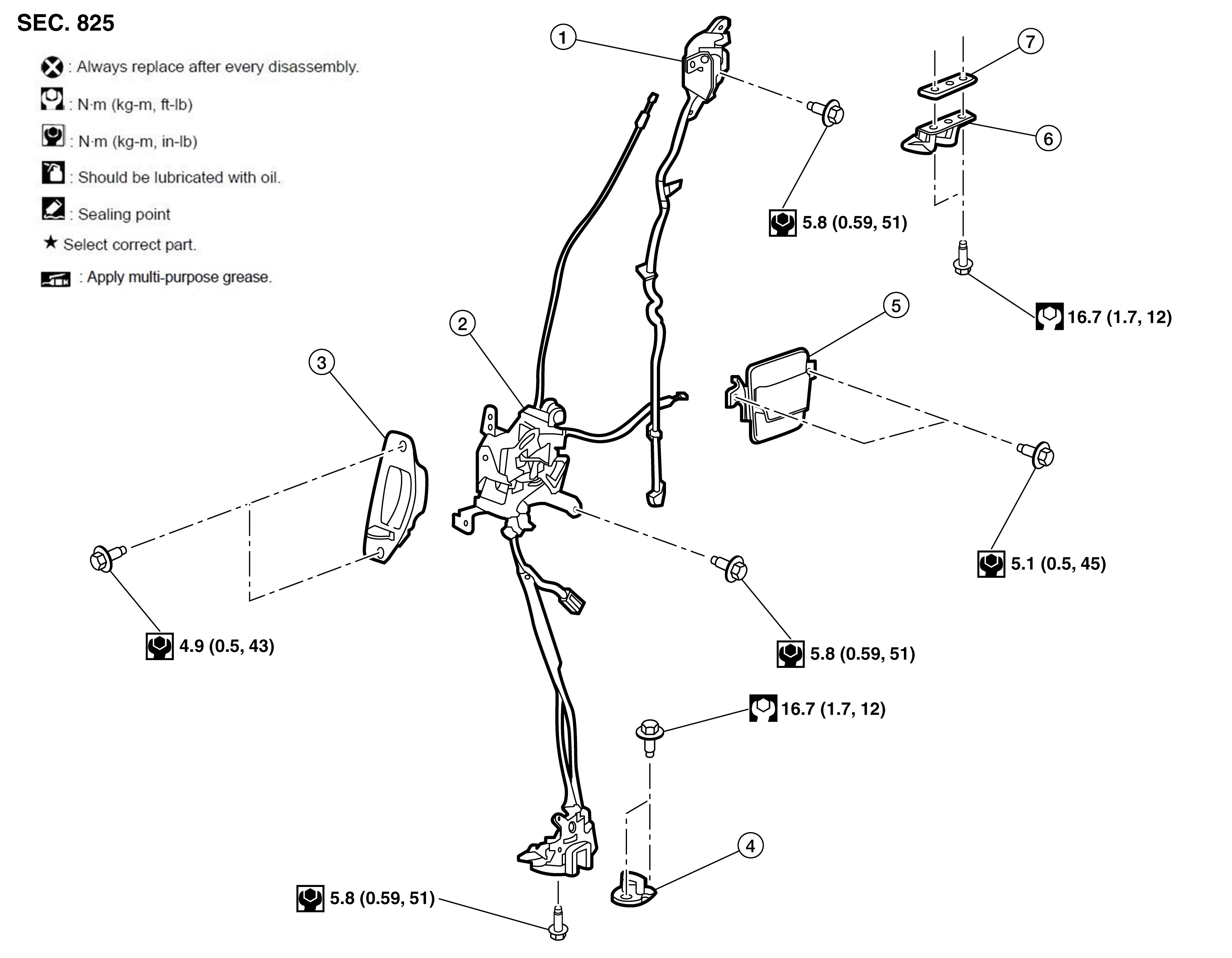

Fig 1: Rear Door Lock Replacement Components With Torque Specifications (King Cab ®)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear door upper latch	2.	Rear door lower latch	3.	Rear door outside door handle
4.	Lower striker	5.	Inside door handle	6.	Upper striker
7.	Upper striker shim

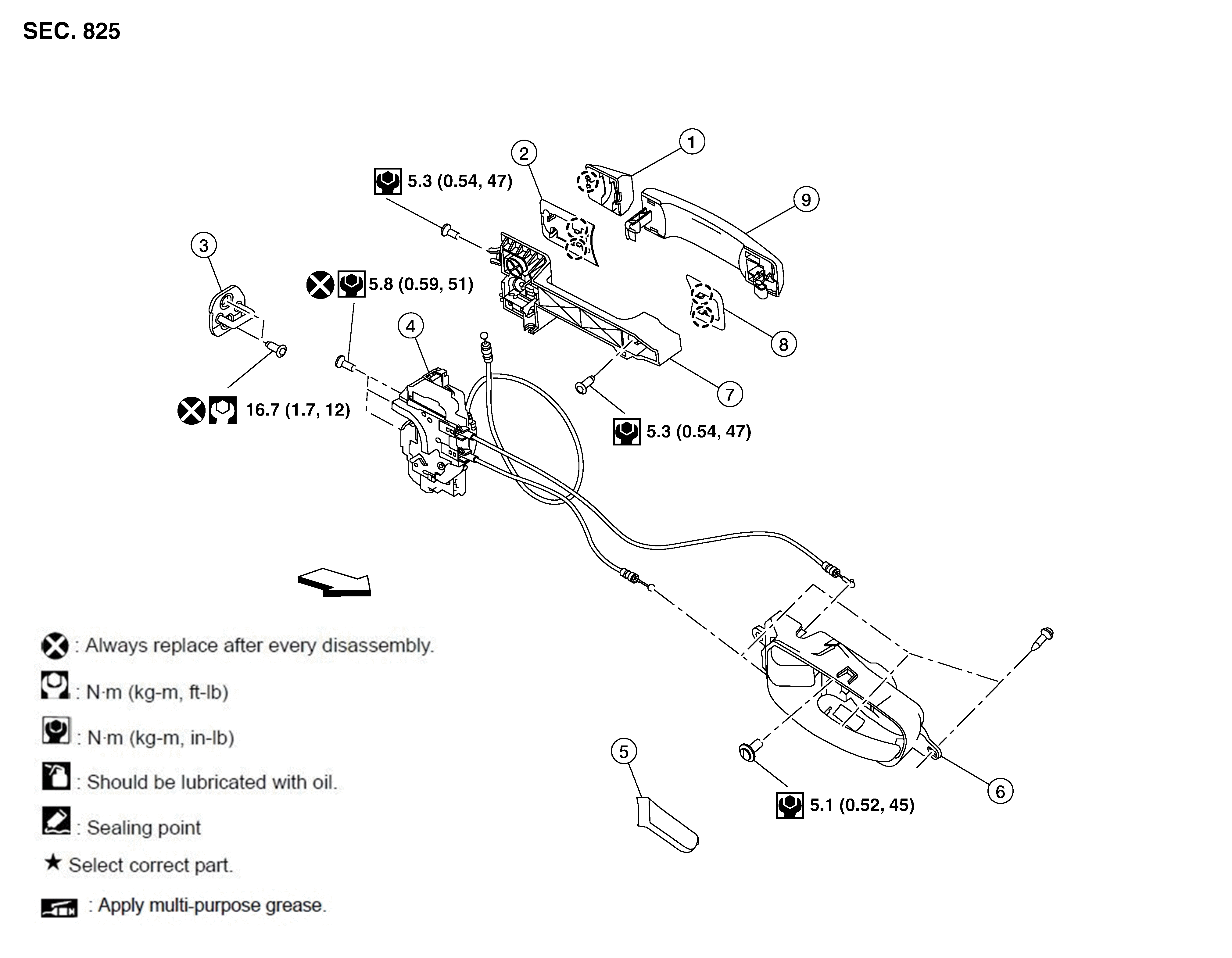

Fig 2: Rear Door Lock Replacement Components With Torque Specifications (Crew Cab)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Outside handle escutcheon	2.	Rear gasket	3.	Rear door lock striker
4.	Door lock	5.	Inside door handle escutcheon	6.	Inside handle
7.	Outside handle bracket	8.	Front gasket	9.	Outside handle
	Pawl		Front
