Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

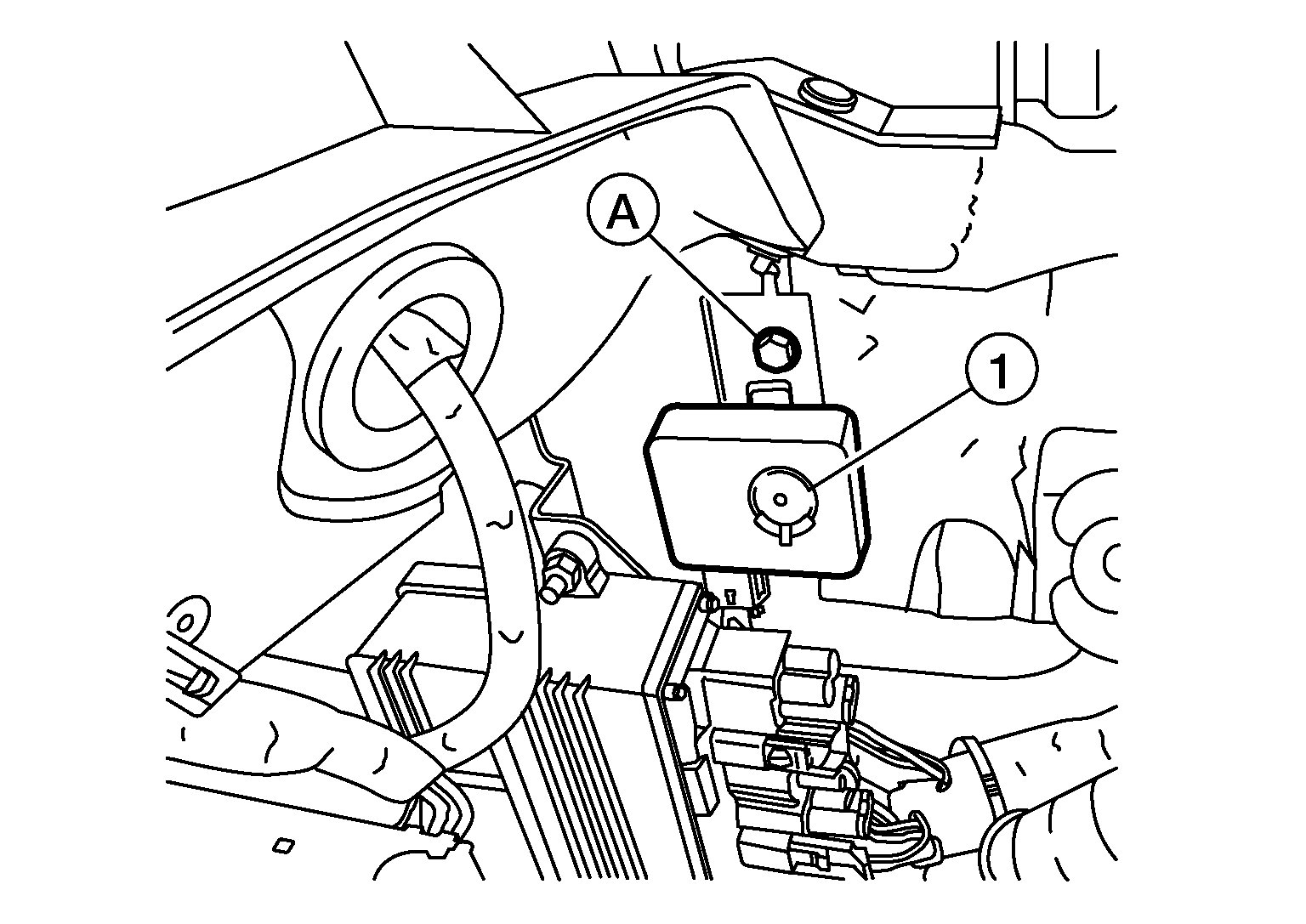

  1. Disconnect harness connector from the Intelligent Key warning buzzer (1).
    GNSALKIA4284Z-284Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove bolt (A) and Intelligent Key warning buzzer and bracket.
  3. Remove Intelligent Key warning buzzer from bracket.
