Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

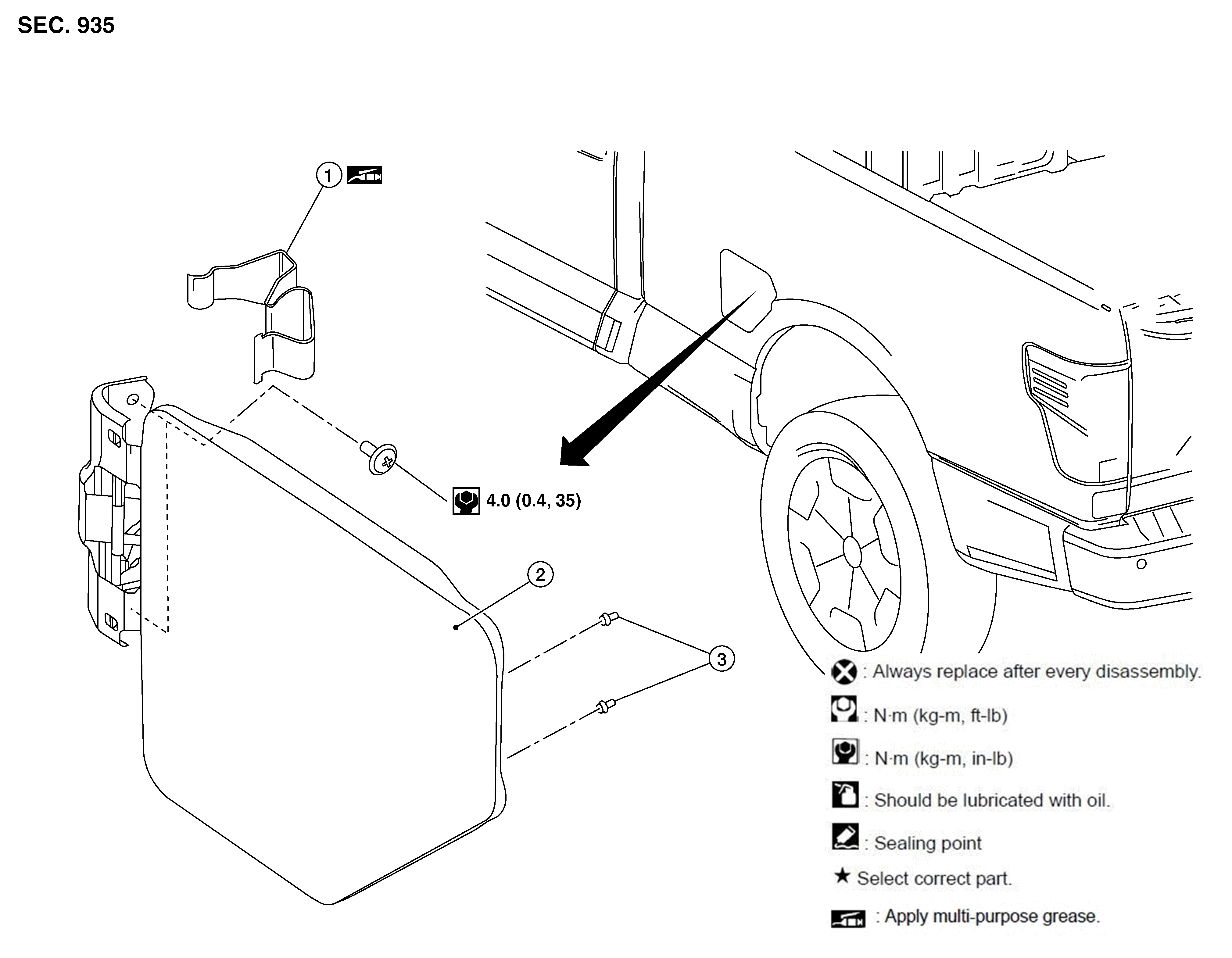

GNSAWKIA4232Z-232Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel filler lid spring

2.

Fuel filler lid

3.

Bumper rubber
