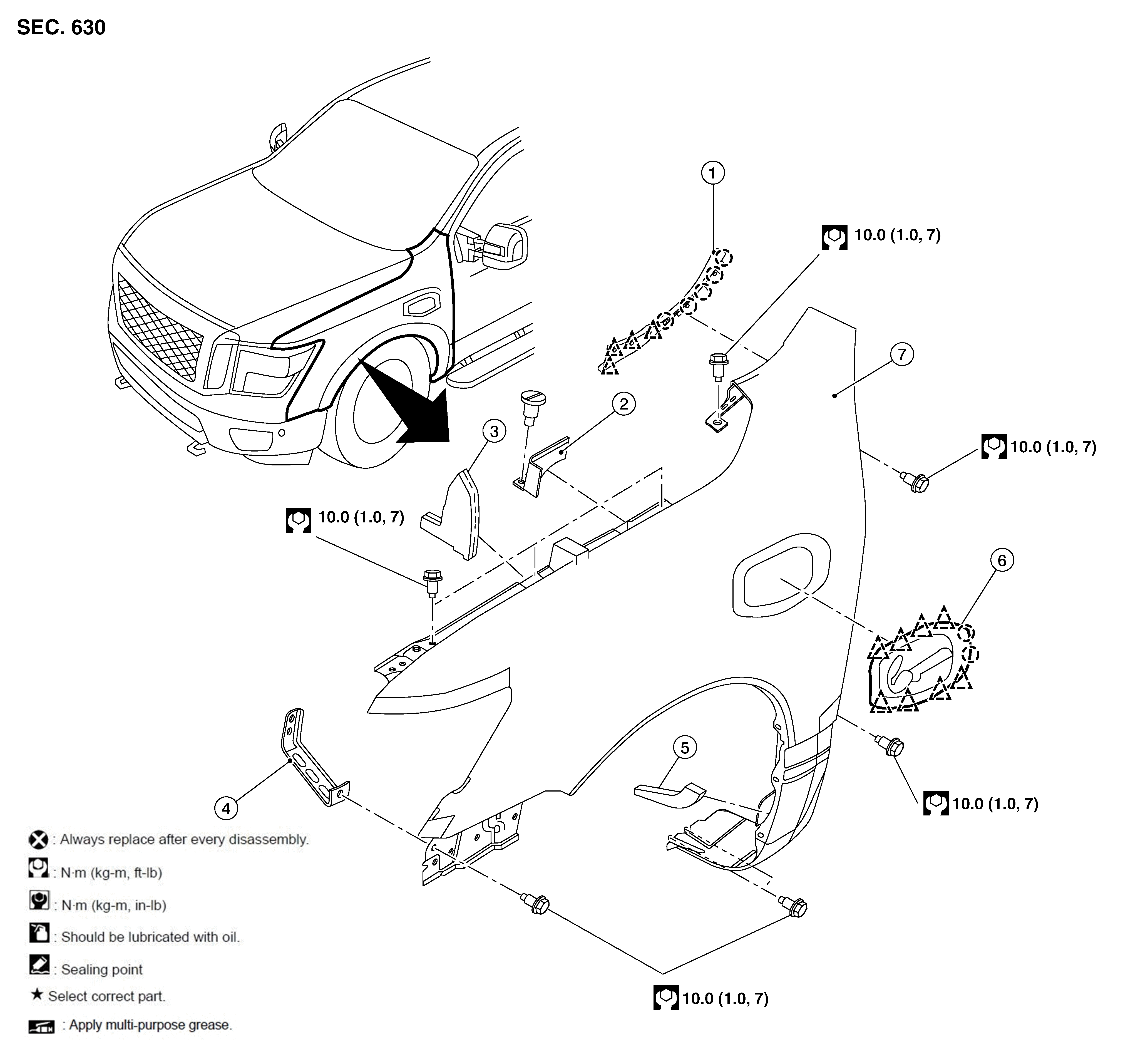

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Cowl top fender cover
|
2.
|
Front fender cover (RH)
|
3.
|
Front fender baffle
|
|
4.
|
Front fender bracket
|
5.
|
Front fender insulator
|
6.
|
Emblem (for XD Models)
|
|
7.
|
Front fender
|
|
Clip
|
|
Pawl
|
