Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

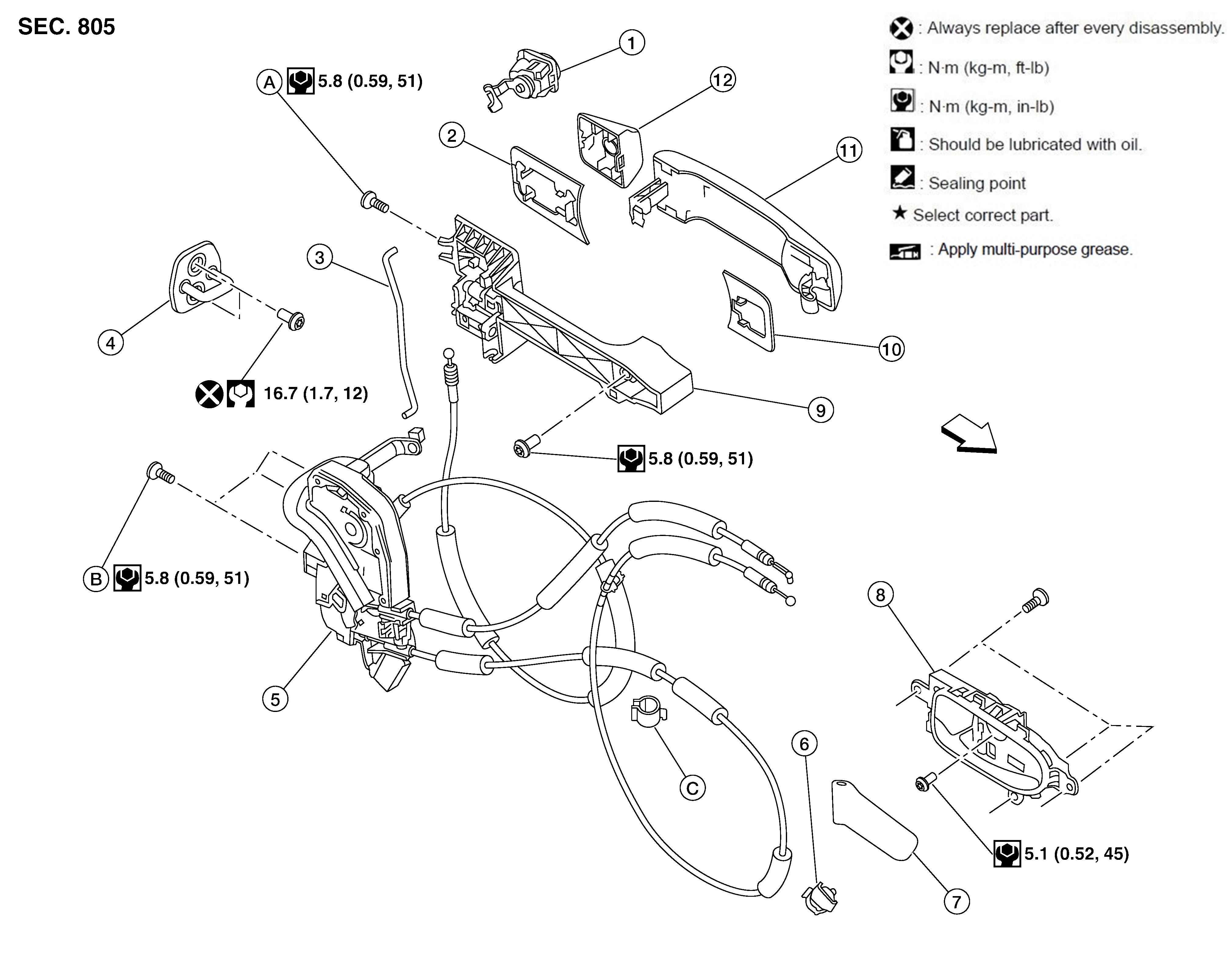

Fig 1: Front Door Lock Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Door lock cylinder	2.	Rear gasket	3.	Door key cylinder rod
4.	Striker	5.	Door lock	6.	Cable clip
7.	Inside door handle escutcheon	8.	Inside handle	9.	Outside handle bracket
10.	Front gasket	11.	Outside handle	12.	Outside handle escutcheon
A.	Outside handle bracket bolt	B.	Door lock bolt	C.	Cable clip
	Pawl		Front
