Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

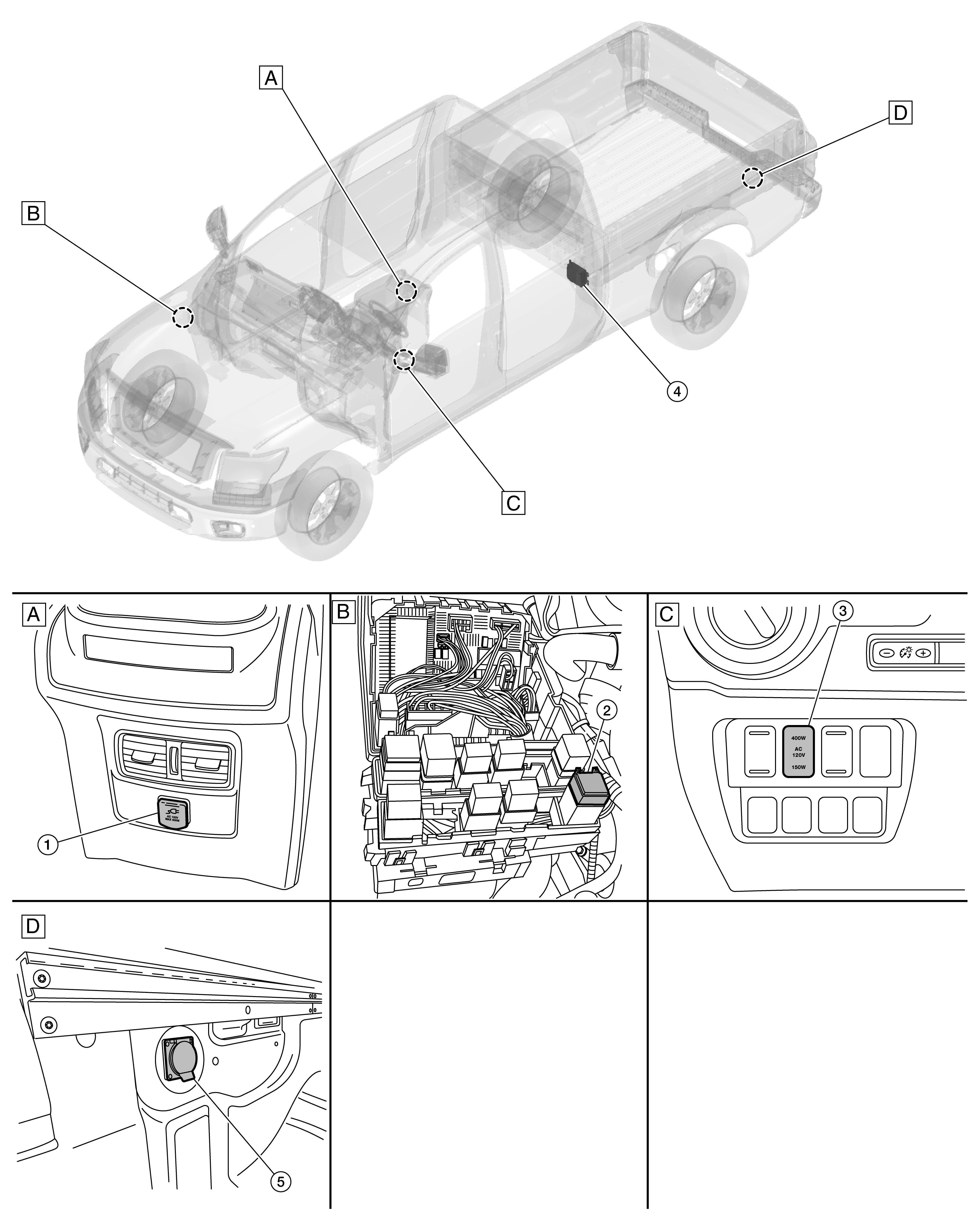

WITH CUMMINS 5.0L (WITH CREW CAB)

Courtesy of NISSAN NORTH AMERICA, INC.

A.	View of rear center console	B.	RH engine compartment (view with relay box cover removed)	C.	View of LH lower instrument panel
D.	View of LH inner cargo bed

No.	Component	Reference
1.	AC 120V outlet (console)	AC 120V Outlet
2.	Inverter relay	Component Parts Location
3.	AC 120V outlet main switch	AC 120V Outlet Main Switch
4.	Inverter unit	Inverter Unit
5.	Rear AC 120V outlet (bed) (if equipped)	AC 120V Outlet

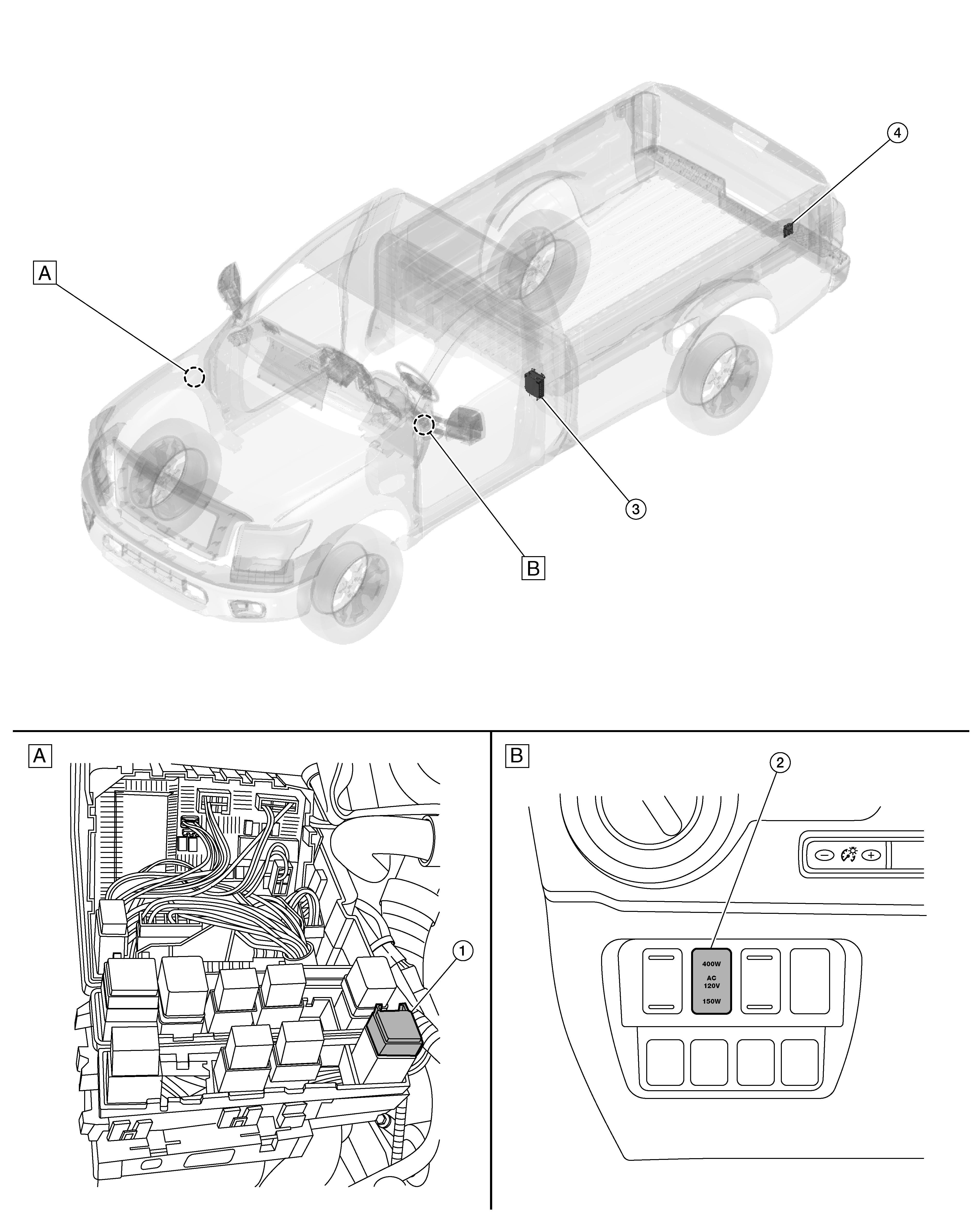

WITH CUMMINS 5.0L (EXCEPT CREW CAB)

Courtesy of NISSAN NORTH AMERICA, INC.

RH engine compartment (view with relay box cover removed)

View of LH lower instrument panel

No.	Component	Reference
1.	Inverter relay	Component Parts Location
2.	AC 120V outlet main switch	AC 120V Outlet Main Switch
3.	Inverter unit	Inverter Unit
4.	Rear AC 120V outlet (bed) (if equipped)	AC 120V Outlet

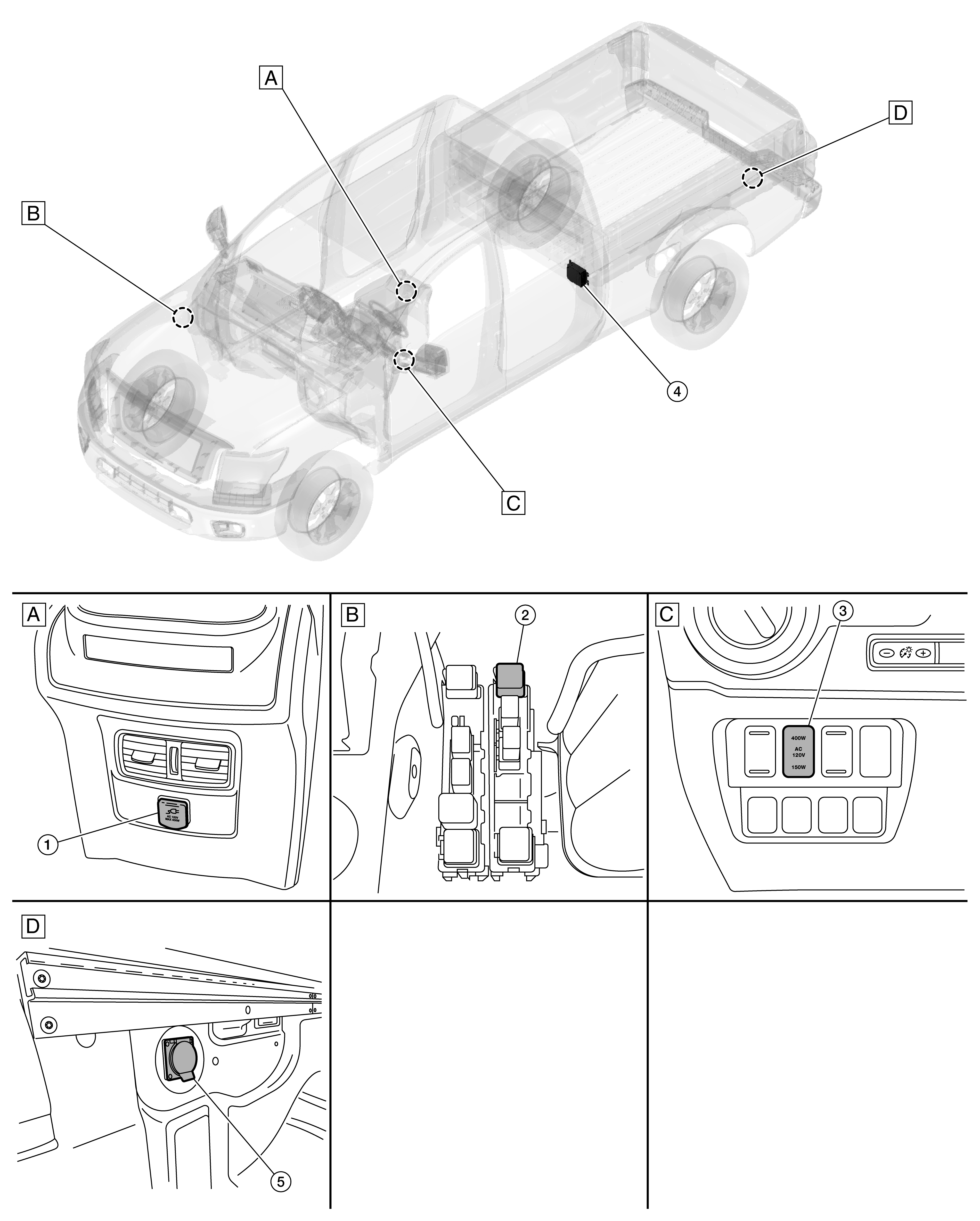

WITH VK56VD (WITH CREW CAB)

Courtesy of NISSAN NORTH AMERICA, INC.

A.	View of rear center console	B.	RH engine compartment (view with relay box cover removed)	C.	View of LH lower instrument panel
D.	View of LH inner cargo bed

No.	Component	Reference
1.	AC 120V outlet (console)	AC 120V Outlet
2.	Inverter relay	Component Parts Location
3.	AC 120V outlet main switch	AC 120V Outlet Main Switch
4.	Inverter unit	Inverter Unit
5.	Rear AC 120V outlet (bed) (if equipped)	AC 120V Outlet

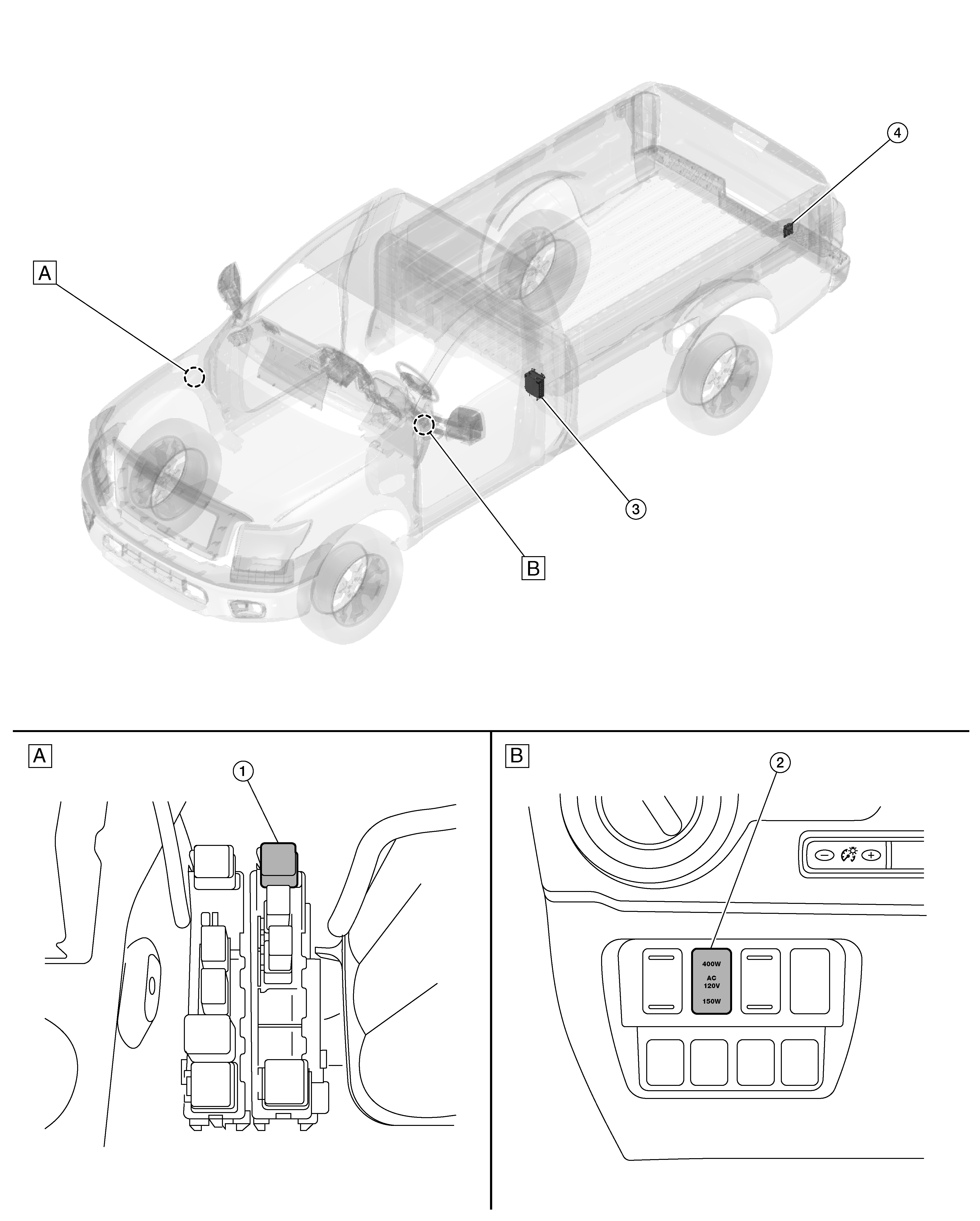

WITH VK56VD (EXCEPT CREW CAB)

Courtesy of NISSAN NORTH AMERICA, INC.

RH engine compartment (view with relay box cover removed)

View of LH lower instrument panel

No.	Component	Reference
1.	Inverter relay	Component Parts Location
2.	AC 120V outlet main switch	AC 120V Outlet Main Switch
3.	Inverter unit	Inverter Unit
4.	Rear AC 120V outlet (bed) (if equipped)	AC 120V Outlet
