Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove inverter unit fuse.
  2. Remove the LH rear seat. Refer to Removal and Installation .
  3. Remove the rear kicking plate refer to Removal and Installation (CREW CAB) or Remove and Installation (KING CAB).
  4. Remove the LH pillar lower finisher. Refer to Removal and Installation (CREW CAB) or Removal and Installation (KING CAB).
  5. Remove the LH pillar upper finisher. Refer to Removal and Installation (CREW CAB) or Removal and Installation (KING CAB).
  6. Position the rear back panel aside.

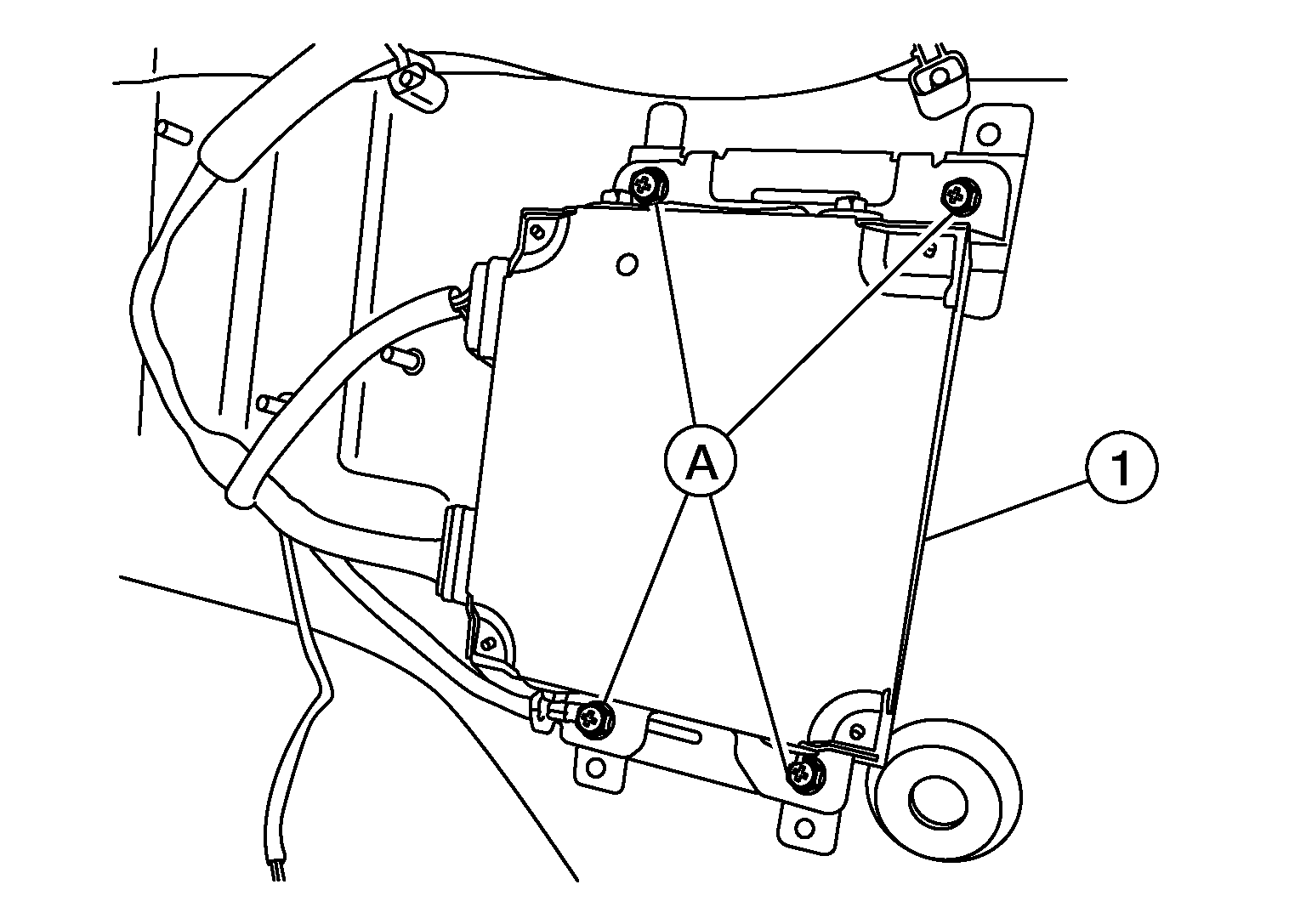

  7. Remove the inverter unit bolts (A).
    GNSALMIA0115Z-115Courtesy of NISSAN NORTH AMERICA, INC.
  8. Disengage the hooks from the inverter bracket.
  9. Disconnect the two harness connectors from the inverter unit.
  10. Remove the inverter unit (1).
