Section 106 (Exterior)
>>
Removal And Installation
>>
Under Cover
>>
Transfer Assembly Under Cover
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

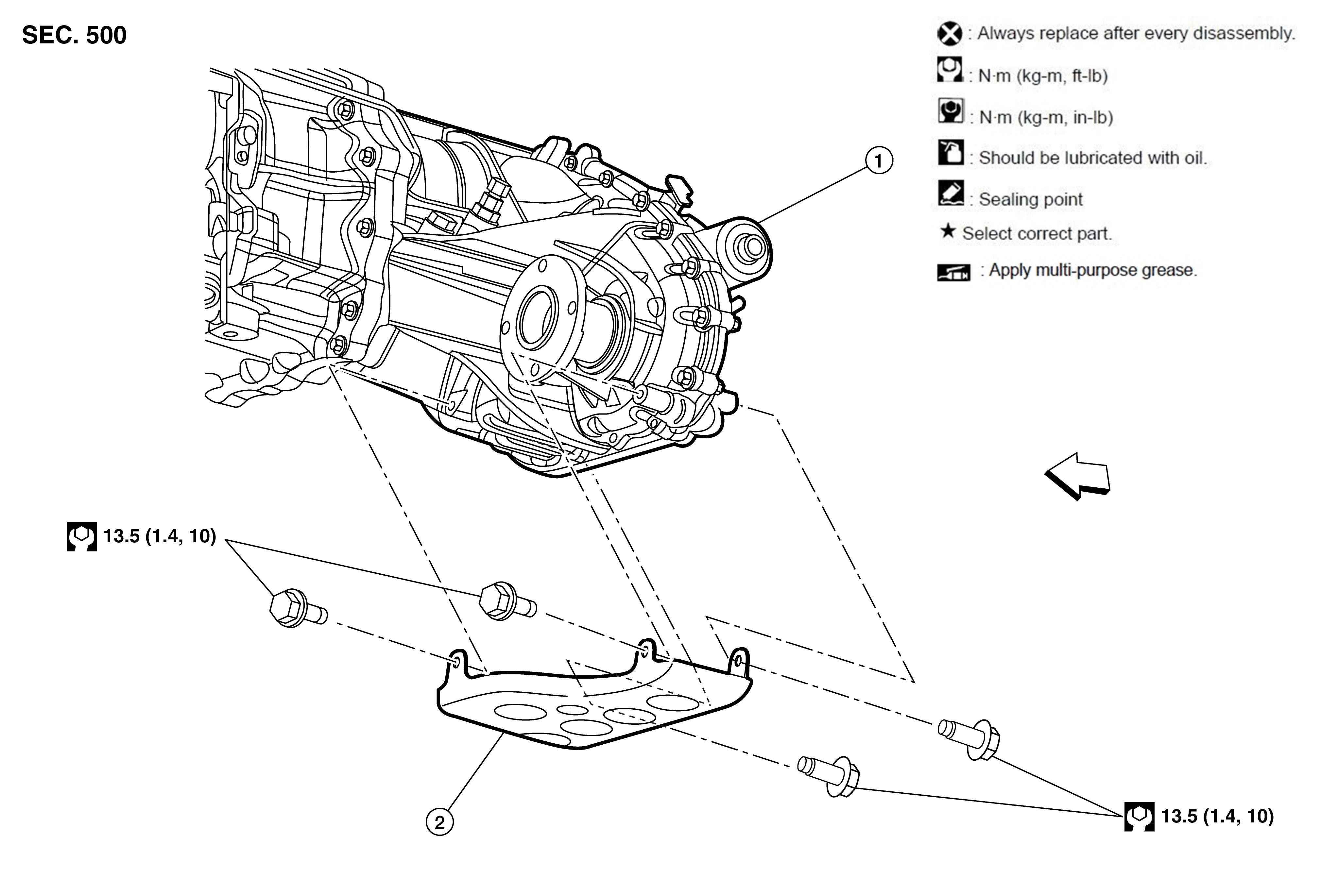

Fig 1: XD Models (PRO-4X)
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Transfer assembly
2.
Transfer assembly under cover
Front

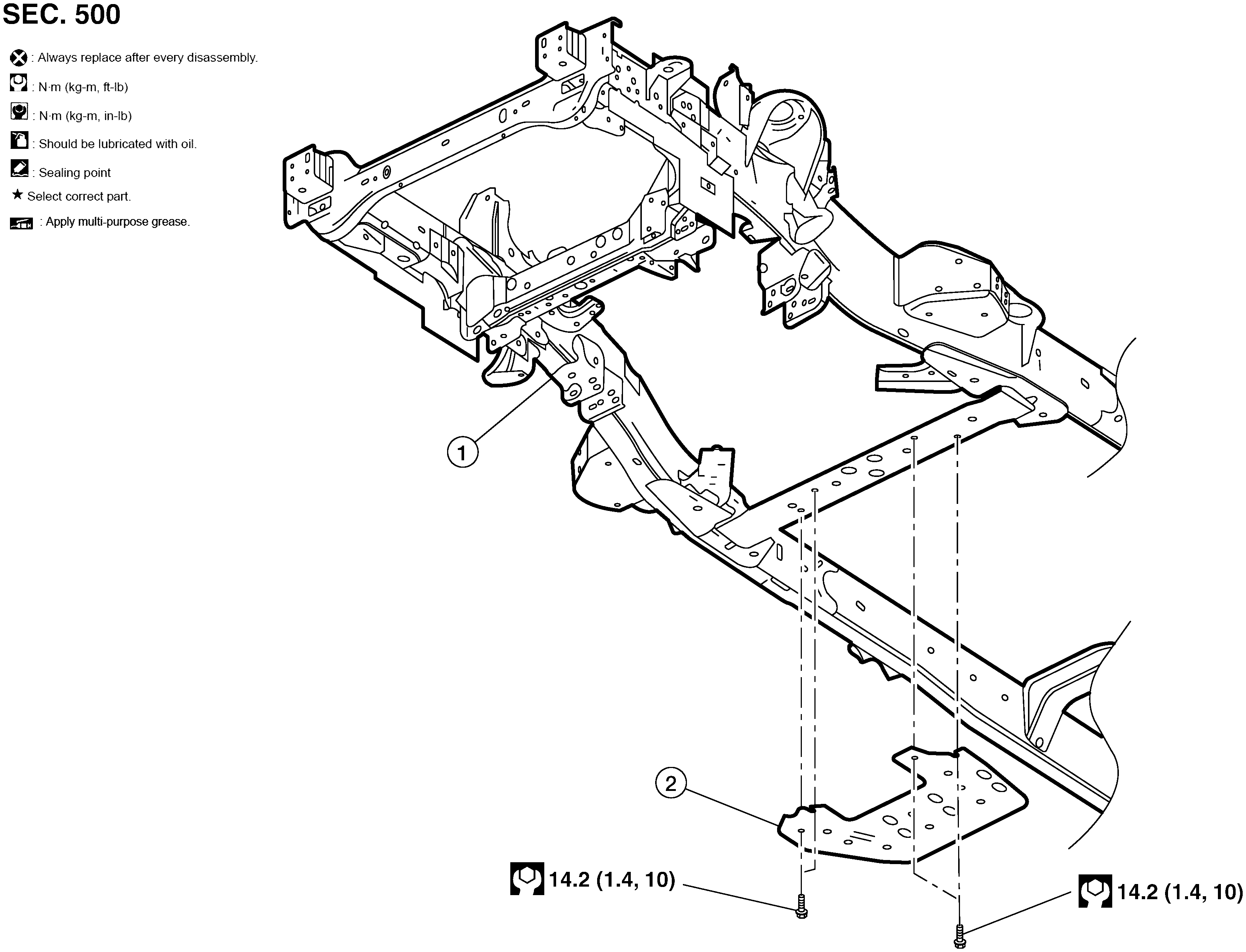

Fig 2: Non-XD Models (PRO-4X)
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Frame assembly
2.
Transfer assembly under cover
