Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

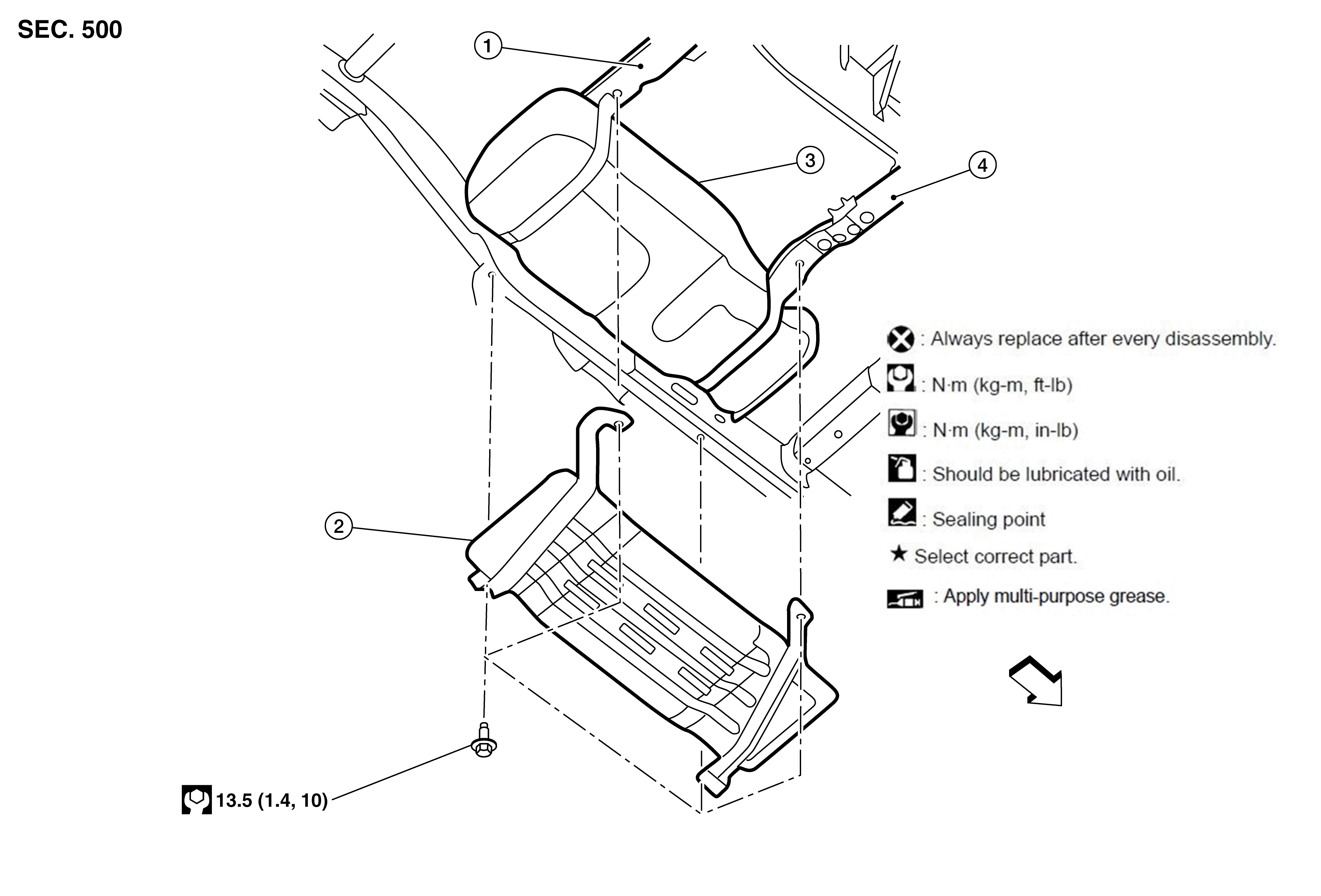

GNSAWJIA2226Z-226Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rear fuel tank cross member

2.

Rear under cover

3.

Fuel tank

4.

Front fuel tank cross member

SYMBOL

Front
