Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

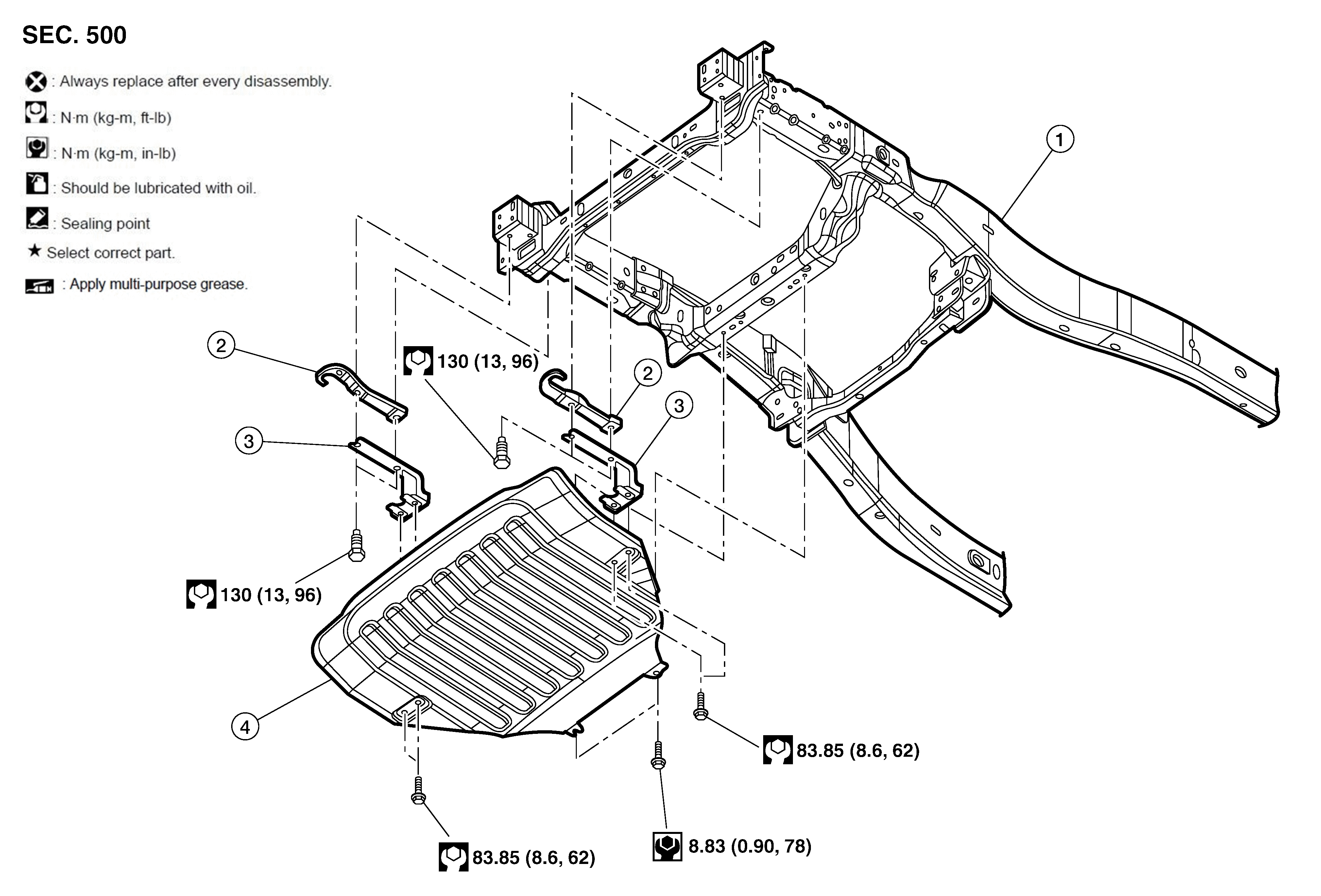

Fig 1: XD Models (Except PRO-4X)

Courtesy of NISSAN NORTH AMERICA, INC.

Frame assembly

Front under cover

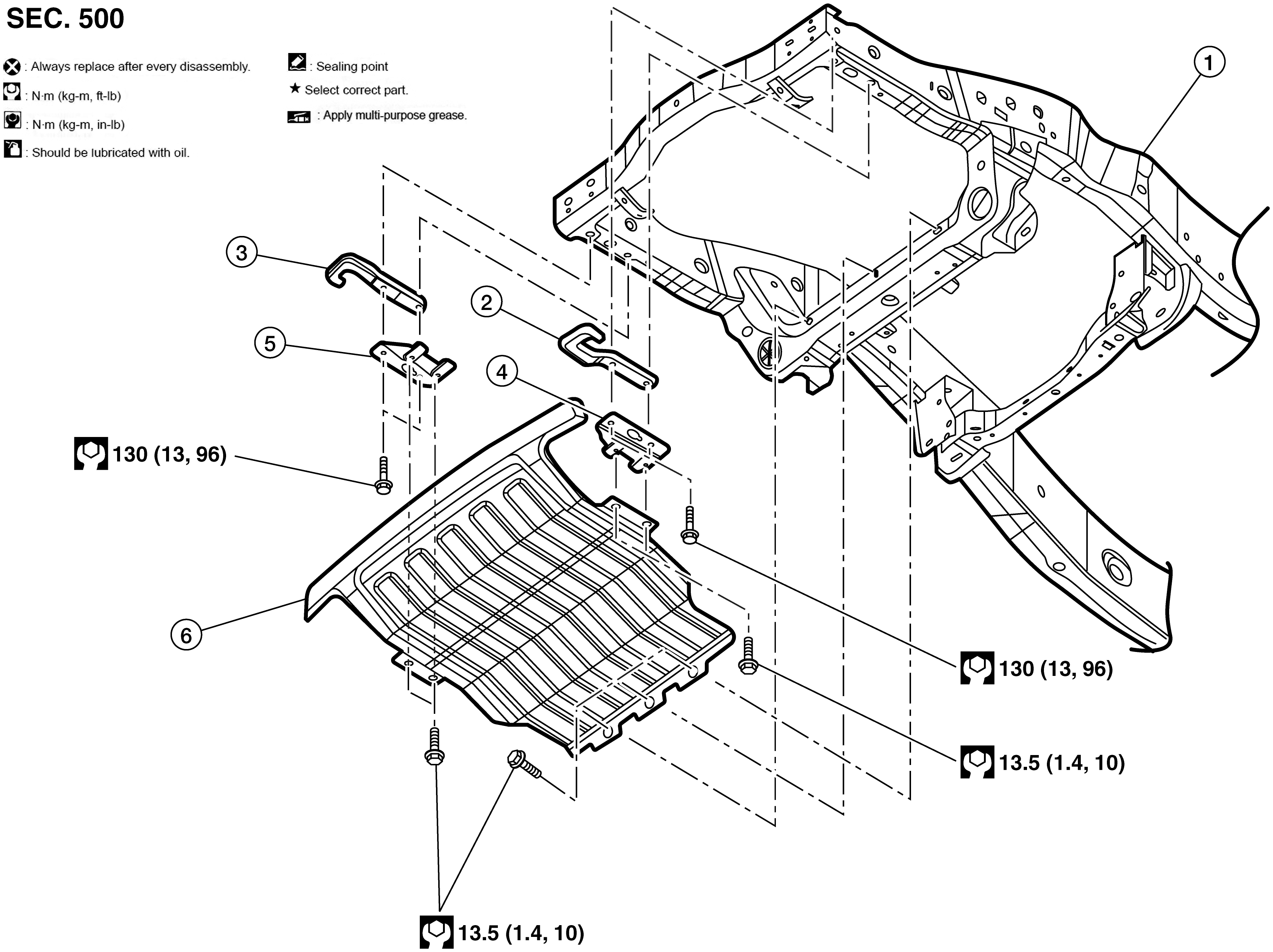

Fig 2: XD Models (PRO-4X)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Frame assembly	2.	Front tow hook (LH)	3.	Front tow hook (RH)
4.	Front under cover bracket	5.	Front under cover bracket	6.	Front under cover

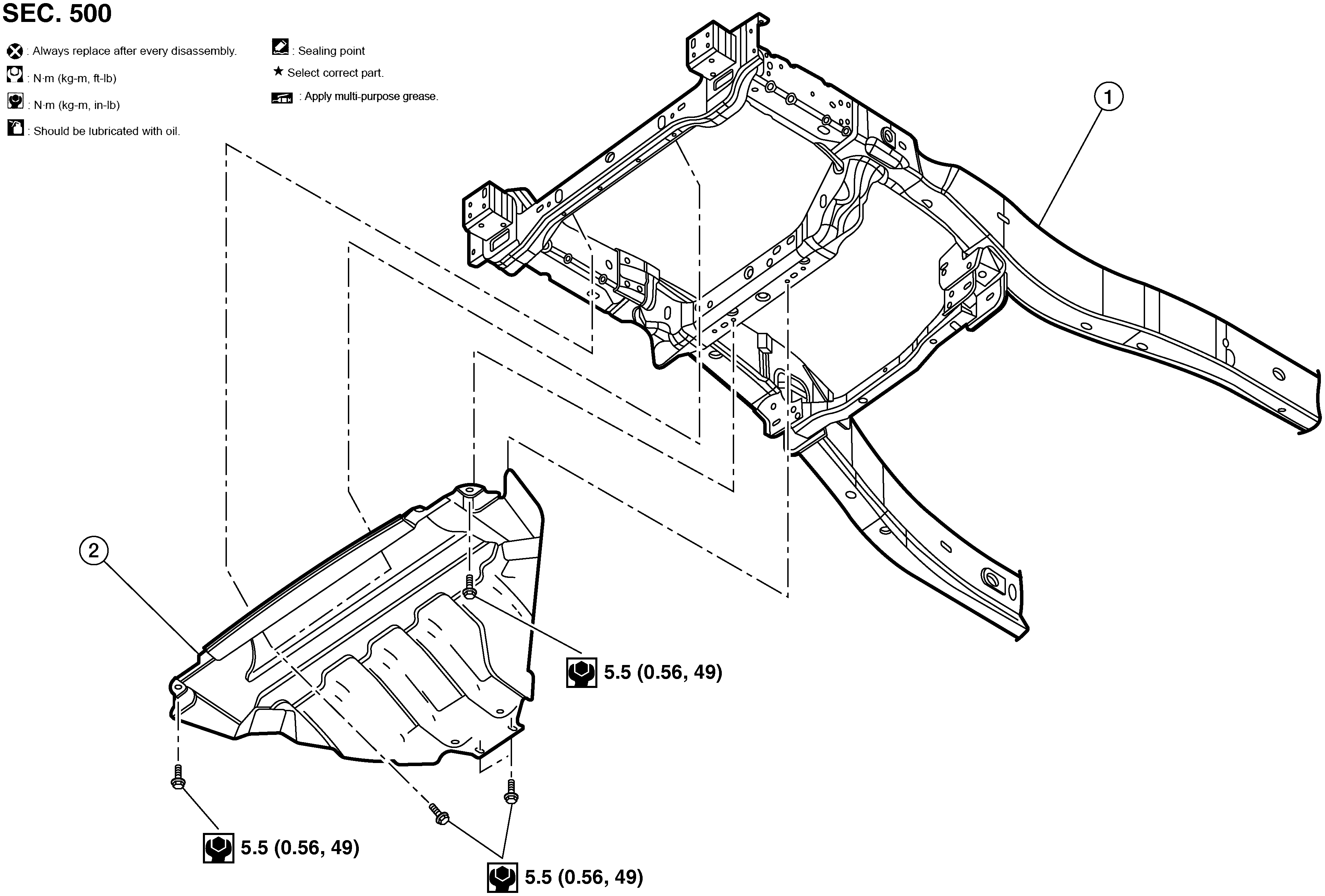

Fig 3: Non-XD Models (Except PRO-4X)

Courtesy of NISSAN NORTH AMERICA, INC.

Frame assembly

Front under cover

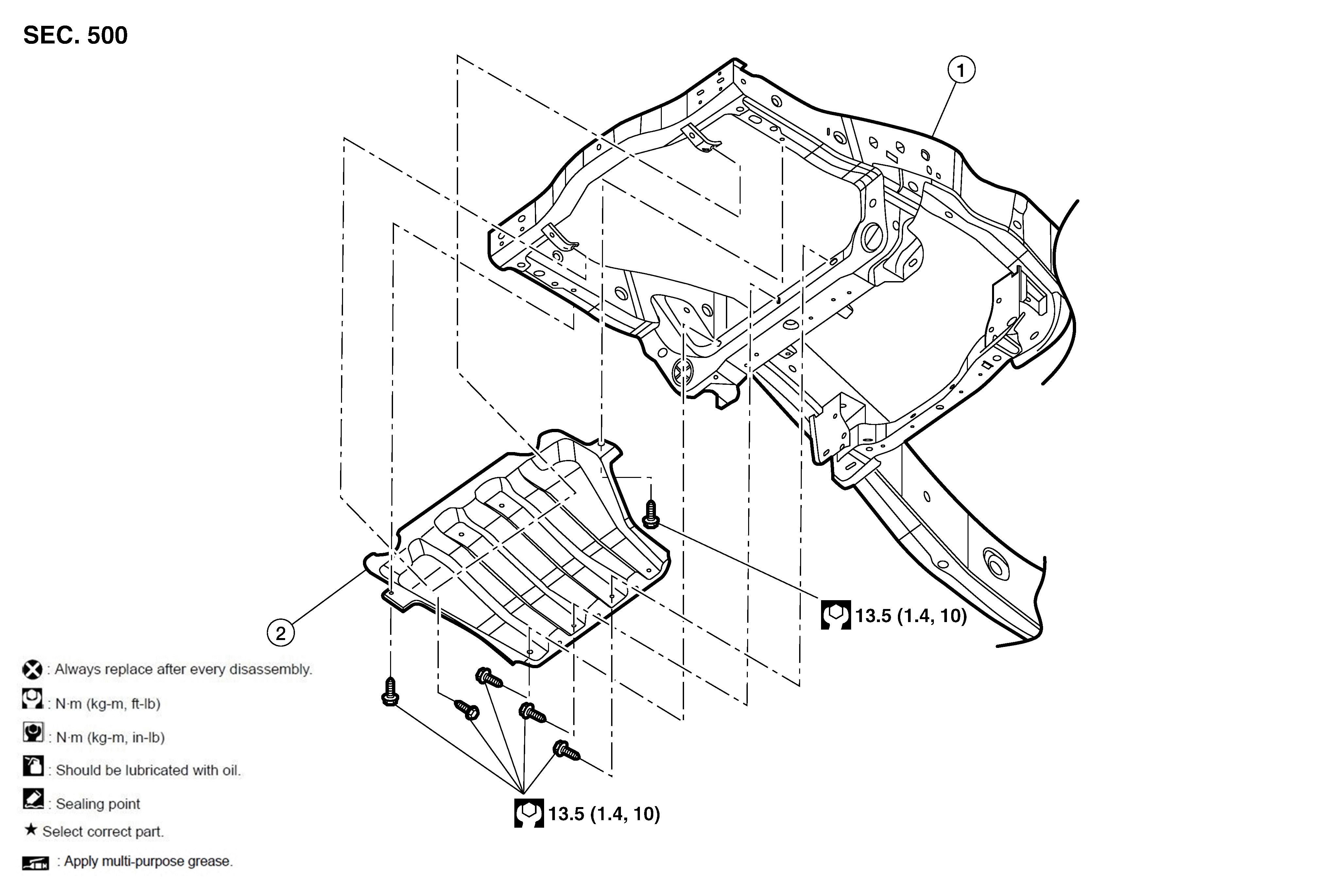

Fig 4: Non-XD Models (PRO-4X)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Frame assembly	2.	Front tow hook	3.	Front under cover bracket
4.	Front under cover
