Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Install the side step end cap with the following procedure (if equipped):

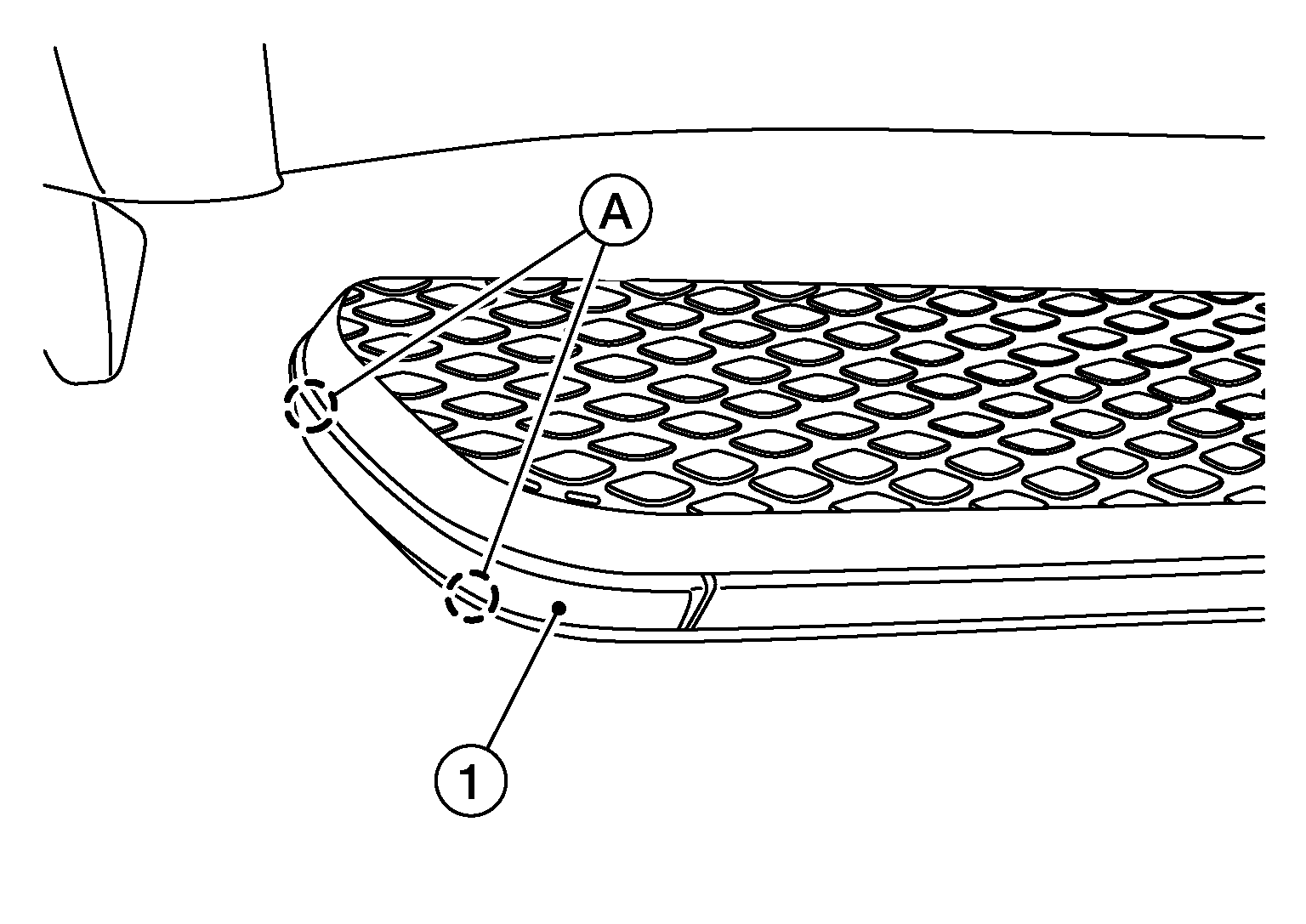

- Push on the ends of the side step end cap (1) to align tabs (A).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Push the side step end cap (1) to engage pawls (A).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
: Pawl
|
- Install remaining components in the reverse order of removal.
