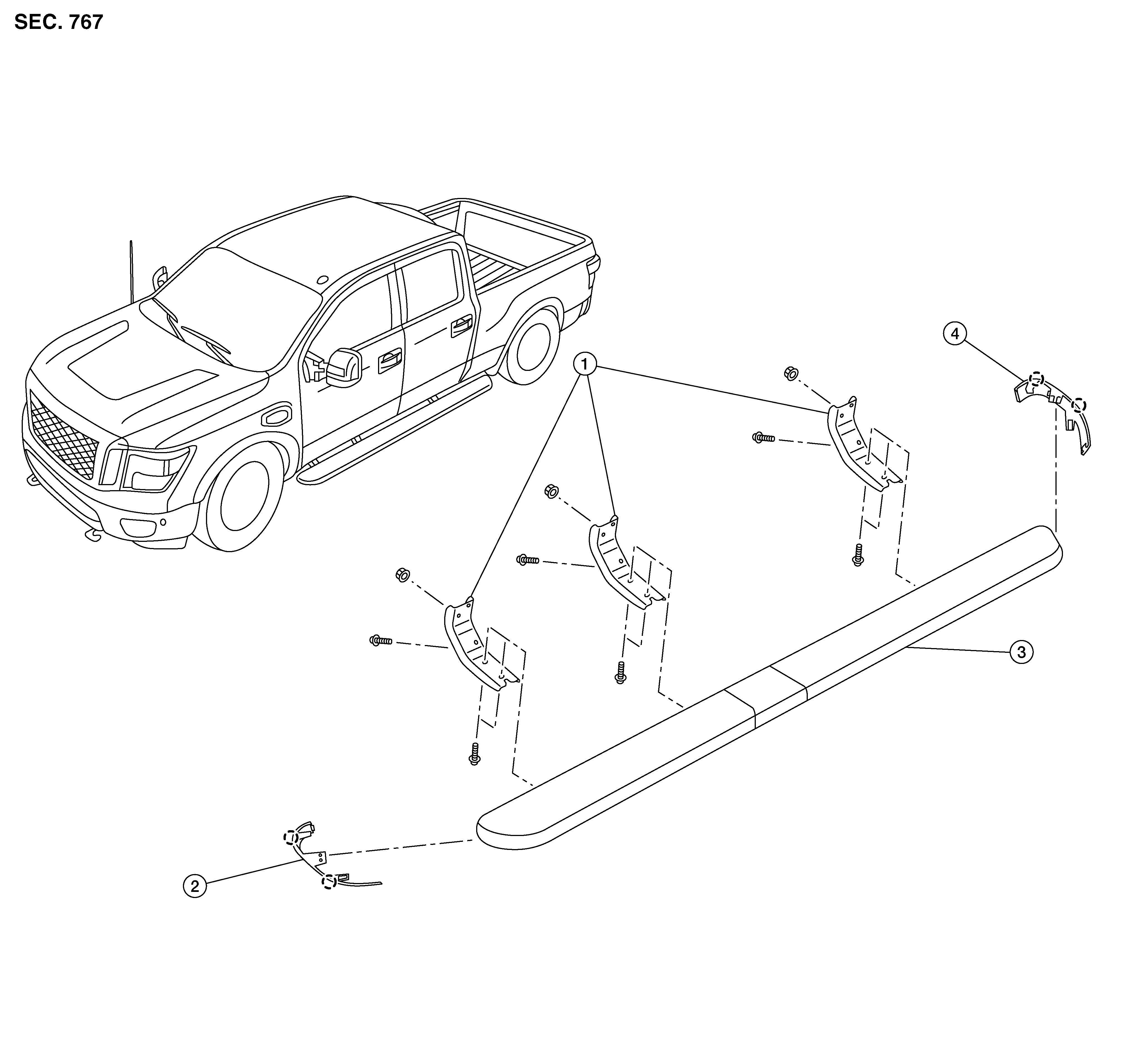

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Side step bracket
|
2.
|
Side step front end cap (if equipped)
|
3.
|
Side step (original style shown, blade style similar)
|
|
4.
|
Side step rear end cap (if equipped)
|
|
Pawl
|
NOTE:
Crew Cab shown, King Cab ®
and Single Cab similar.
