Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove headliner. Refer to Removal and Installation .
  2. Remove rear roof spoiler nut (A).

    SYMBOL

    : Clip

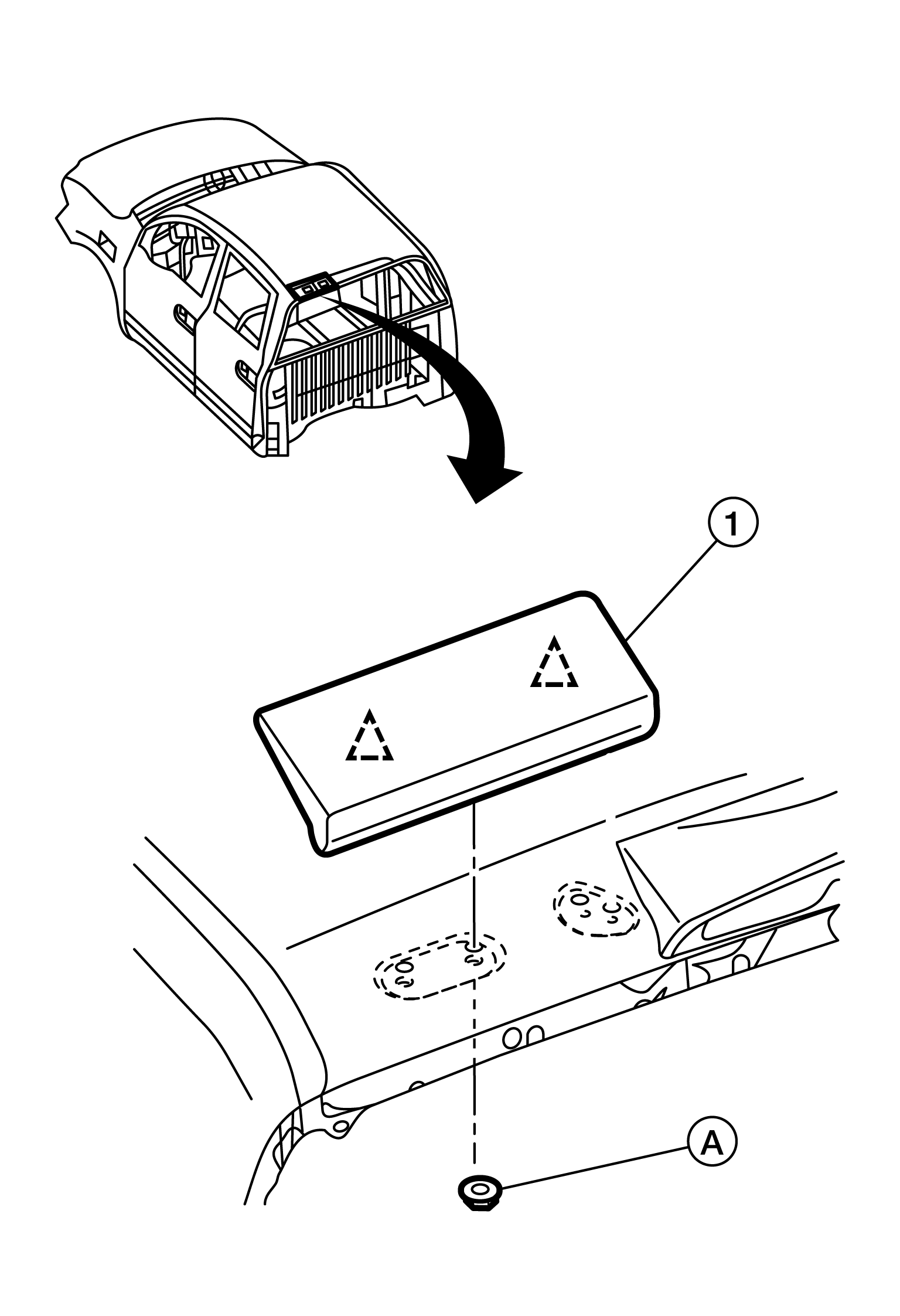

    GNSAWJIA2449Z-449Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release clips and remove rear roof spoiler (1).
    NOTE: LH shown, RH similar.
