Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tailgate. Refer to Removal and Installation .
  2. Remove license plate lamps. Refer to Removal and Installation (HALOGEN HEADLAMP) or Removal and Installation LED HEADLAMP).
  3. Remove trailer tow connector socket (if equipped).

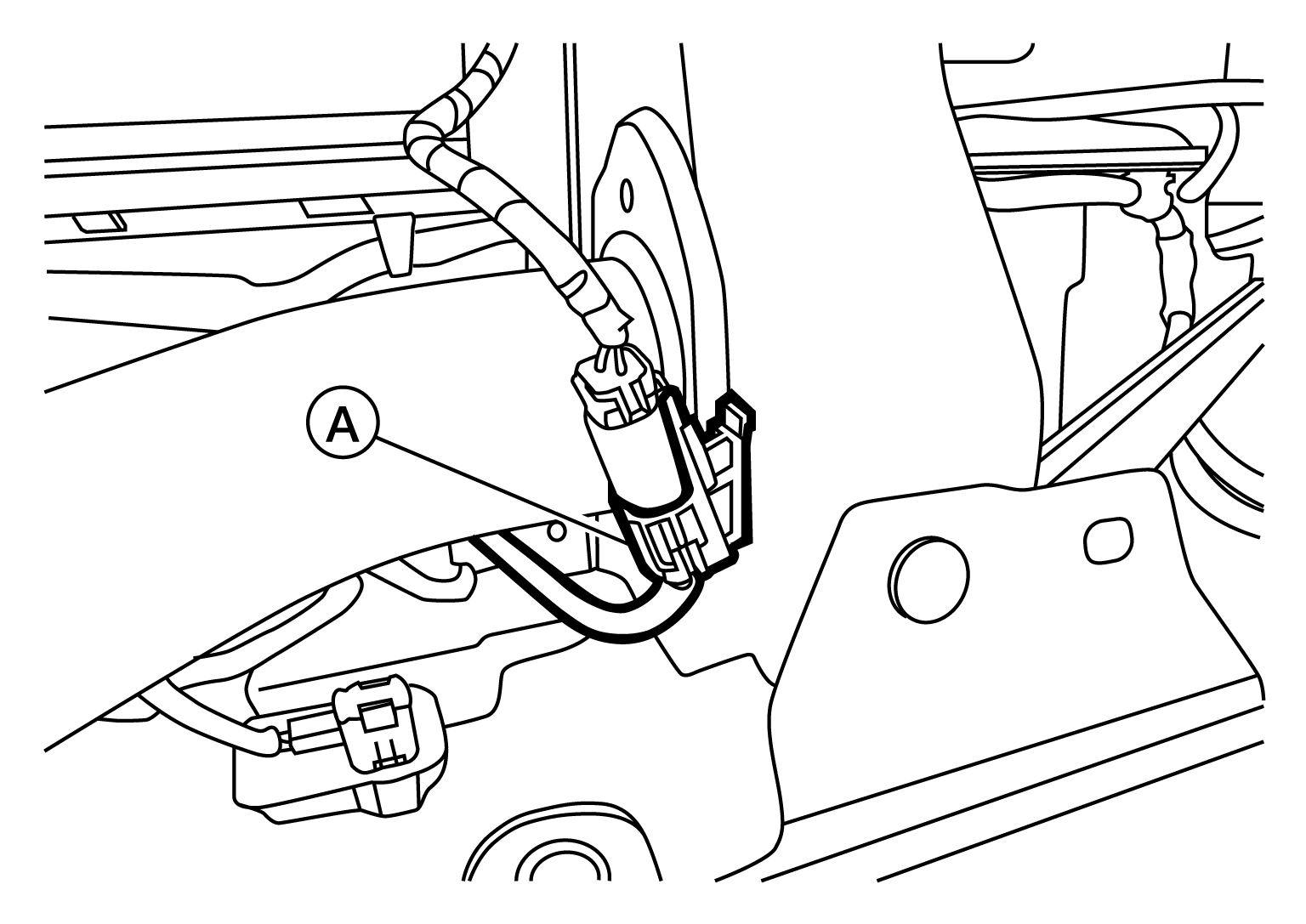

  4. Disconnect license plate lamp connector (A) from chassis harness (LH) and separate harness and harness clip from vehicle.
    GNSALKIA4425Z-425Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: Trailer hitch shown. Bumper reinforcement similar.

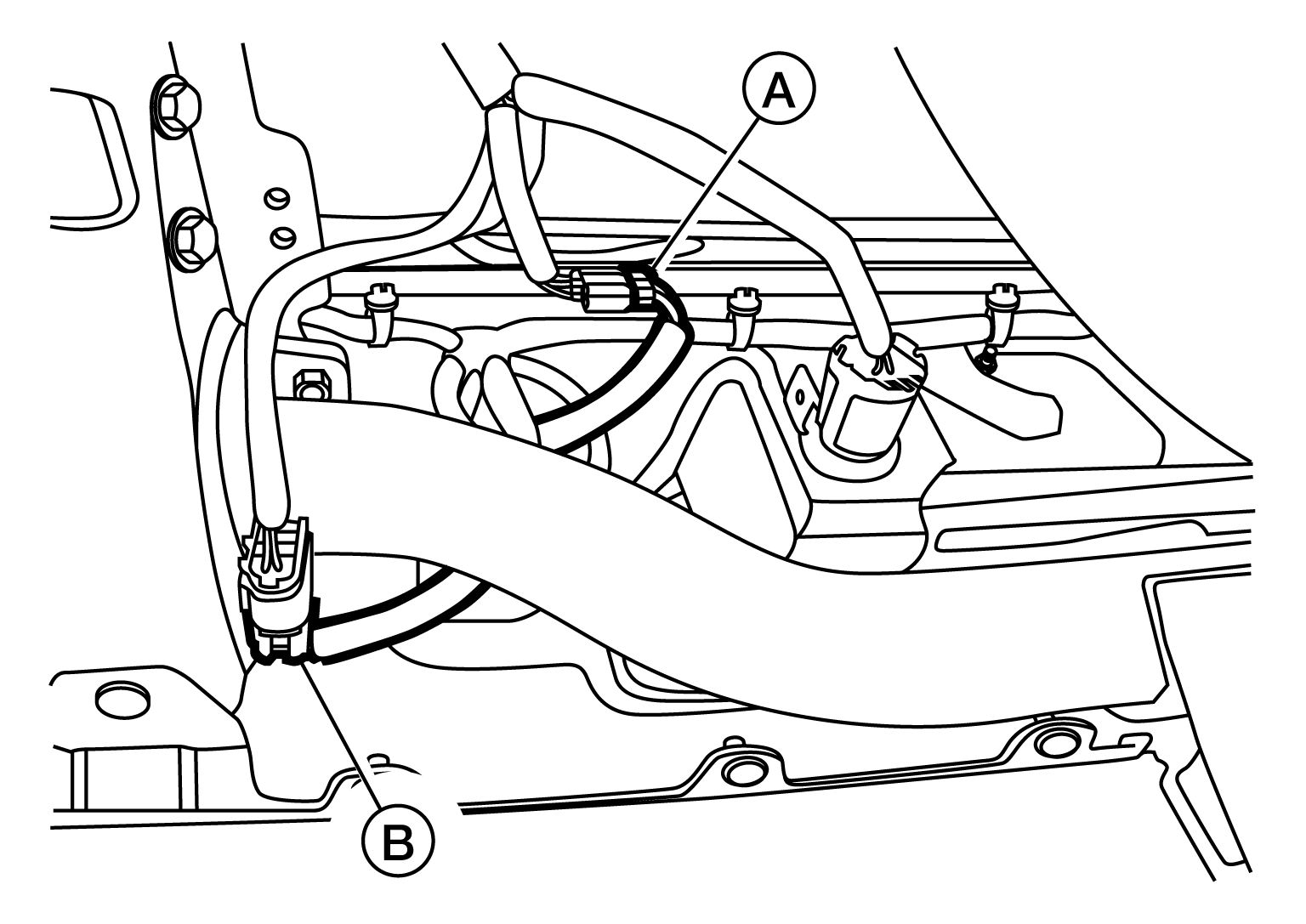

  5. Disconnect side radar harness connector (A) and rear sonar harness connector (B) from chassis harness (RH) and separate harnesses and harness clips from vehicle (if equipped).
    GNSALKIA4426Z-426Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: Trailer hitch shown. Bumper reinforcement similar.
  6. Release bumper finisher metal clips and pawls using suitable tool.
  7. Separate adhesive tape from behind bumper finisher ends and remove bumper finisher from vehicle.
    CAUTION: Do not reuse adhesive tape.
  8. Remove bolts, and remove bumper from vehicle.
    CAUTION: When removing bumper, two people are required.
  9. Disconnect harness connector from side radar units (LH/RH) [if necessary (if equipped)]. Refer to Exploded View .
  10. Remove bumper fascia [if necessary (if equipped)].
  11. Separate wire harness from bumper and remove wire harness (if necessary).
  12. Remove side radar units and splash guards from bumper [if necessary (if equipped)]. Refer to Removal and Installation .
