Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

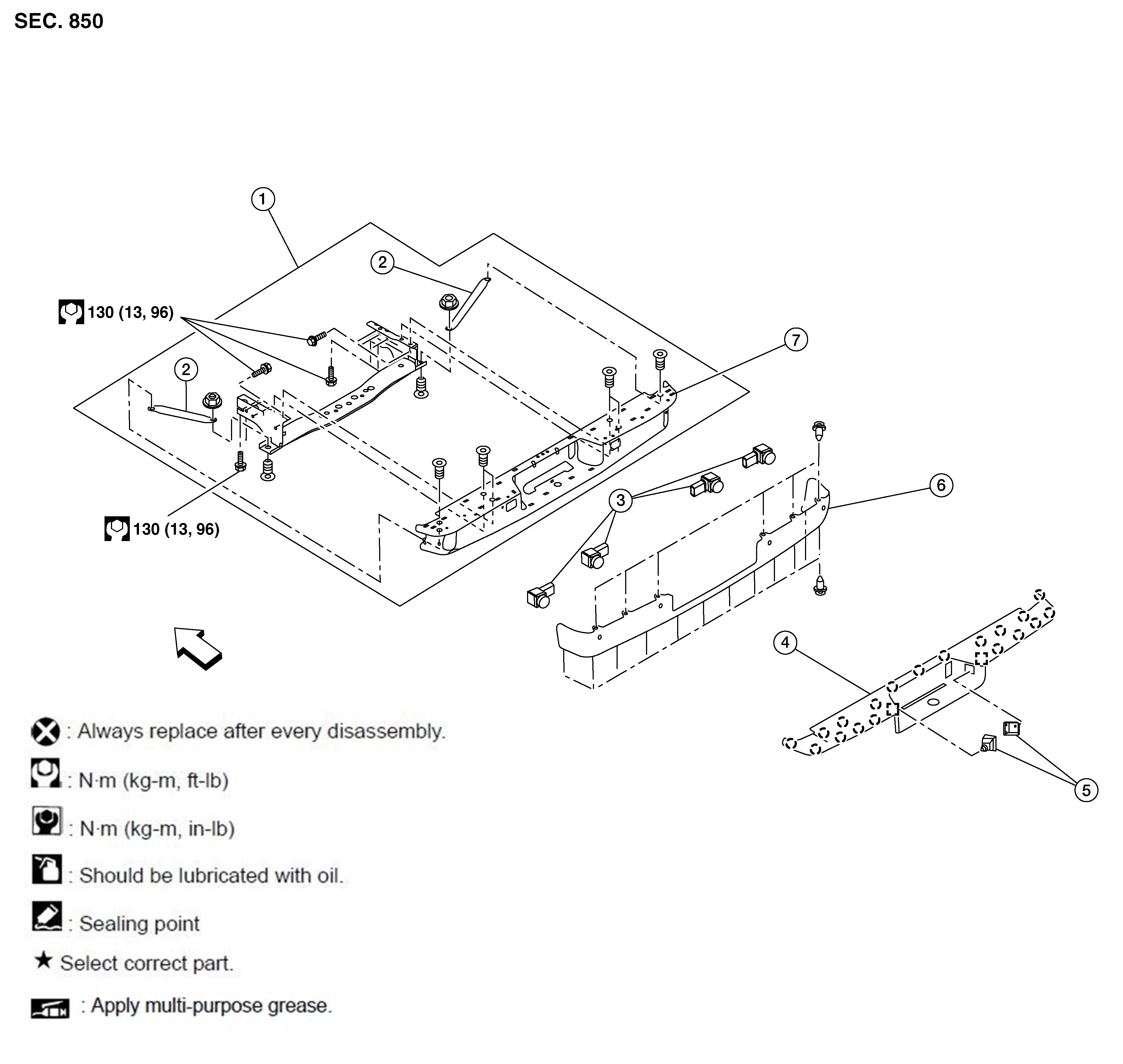

Fig 1: WITH TRAILER HITCH

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bumper bracket (LH/RH)	2.	Sonar sensor (if equipped)	3.	Bumper finisher
4.	License plate lamp	5.	Bumper fascia (if equipped)	6.	Bumper
	Pawl		Metal clip		Front

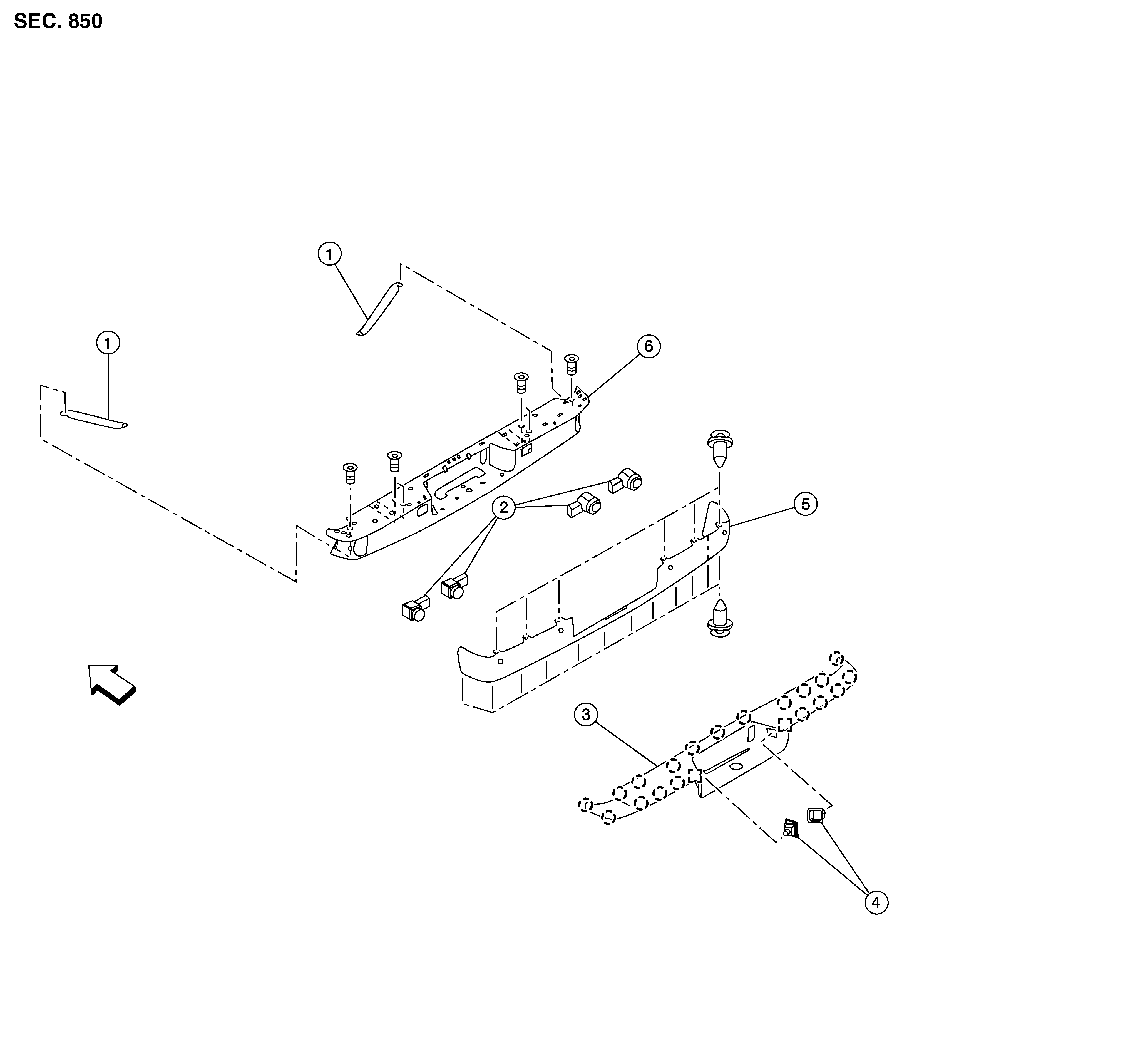

Fig 2: WITHOUT TRAILER HITCH

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bumper assembly	2.	Bumper bracket (LH/RH)	3.	Sonar sensor (if equipped)
4.	Bumper finisher	5.	License plate lamp	6.	Bumper fascia (if equipped)
7.	Bumper		Pawl		Metal clip
	Front
