Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Release the front grille (1) using a suitable tool with the following procedure:
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Release clips (C)
- Release clips (B)
- Release pawls (A)

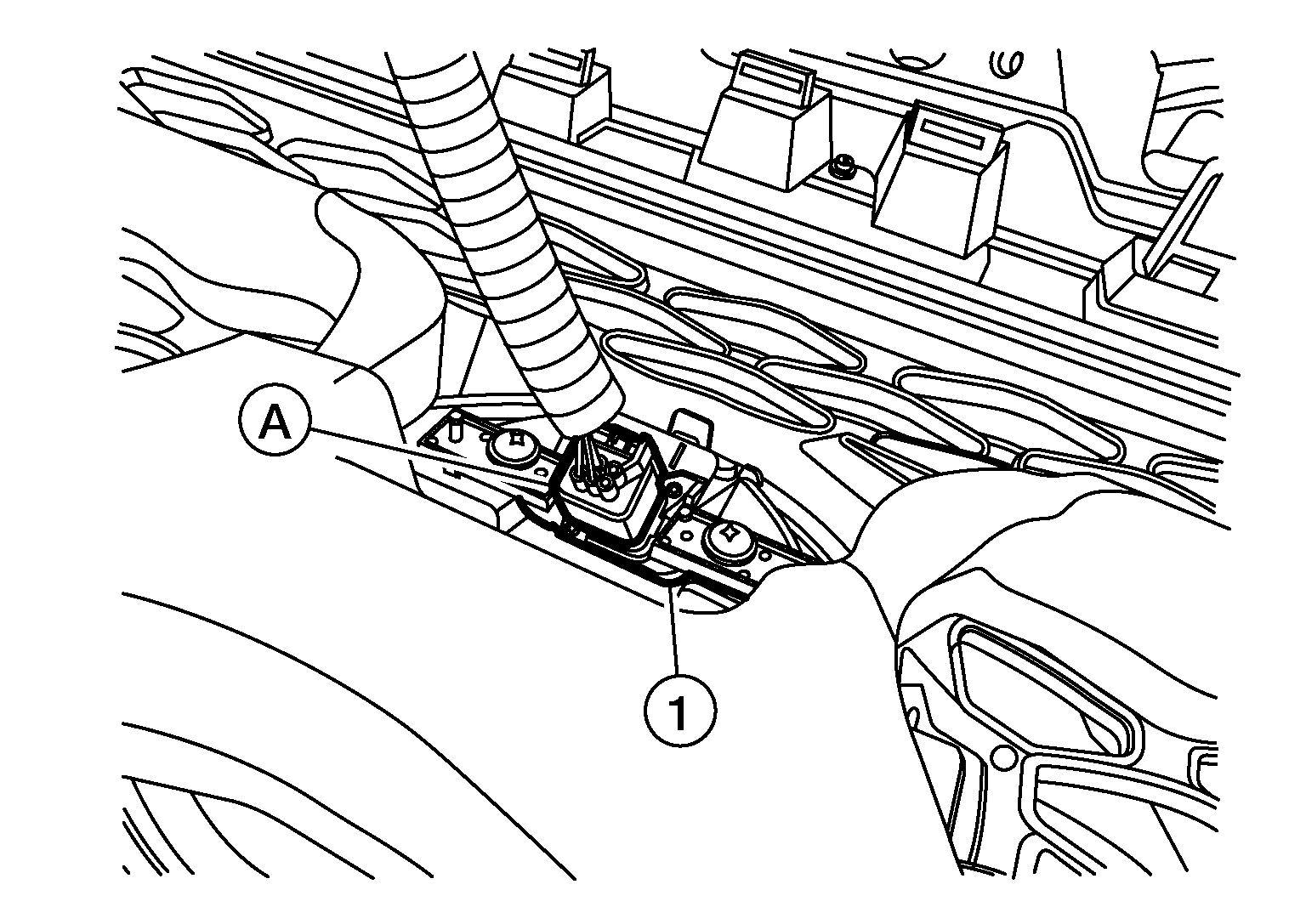

- Disconnect harness connector (A) from front camera [1 (if equipped)], then remove the front grille.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
