Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

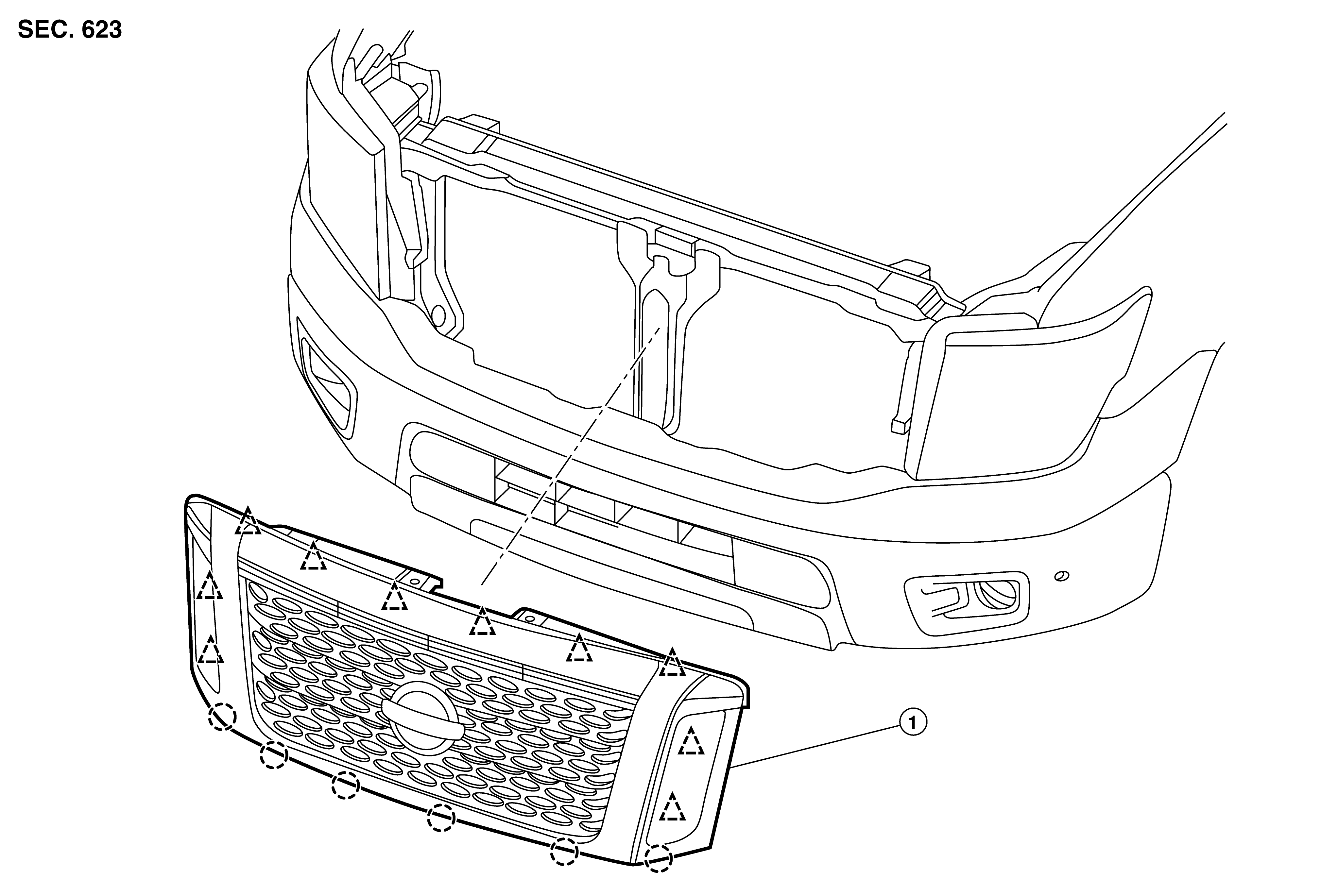

GNSALJIA2004Z-004Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front grille

SYMBOL

Pawl

SYMBOL

Clip
NOTE: XD Model shown, Non-XD Model similar.
