Removal and Installation - Front Bumper: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front under cover. Refer to Removal and Installation .
  2. Remove front fender protector lower (LH/RH). Refer to Removal and Installation - Front Fender Protector .
  3. Remove front grille. Refer to Removal and Installation .

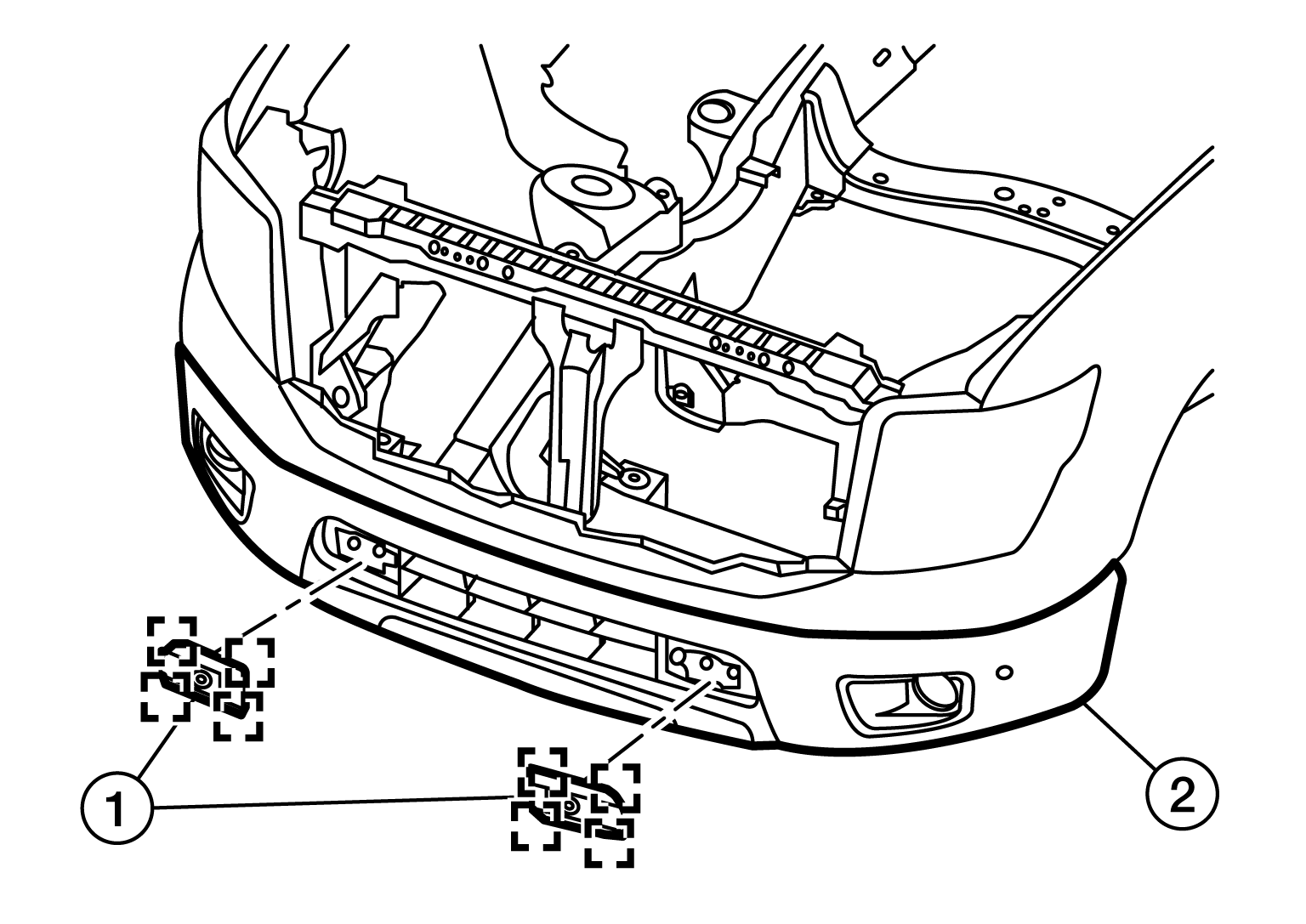

  4. Release clips using suitable tool, and remove front bumper grille finisher (1) from front bumper (2).
    GNSAWJIA2173Z-173Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip

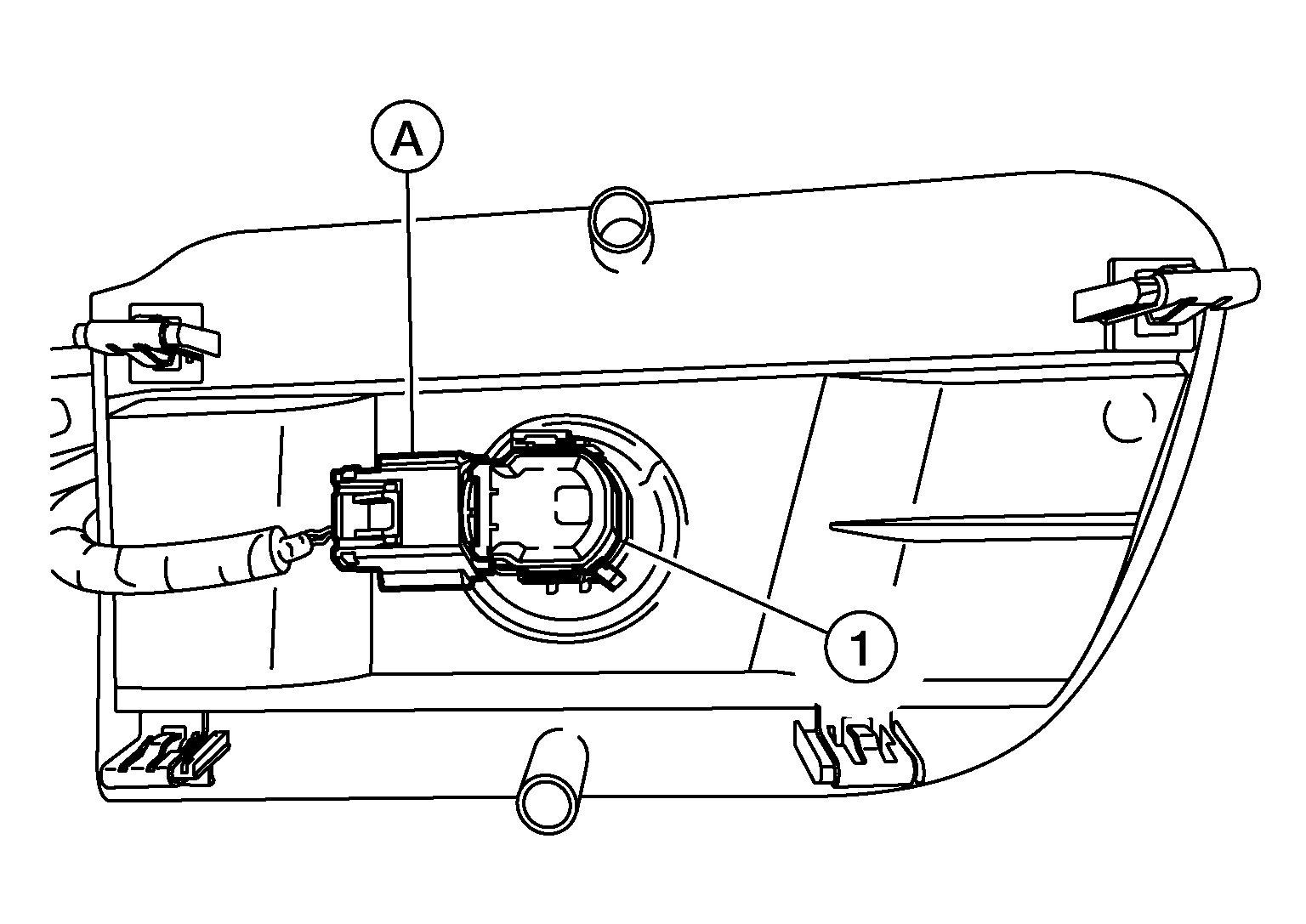

  5. Disconnect harness connector (A) from front sonar inner sensor [1 (if equipped)].
    GNSALNIA1811Z-811Courtesy of NISSAN NORTH AMERICA, INC.

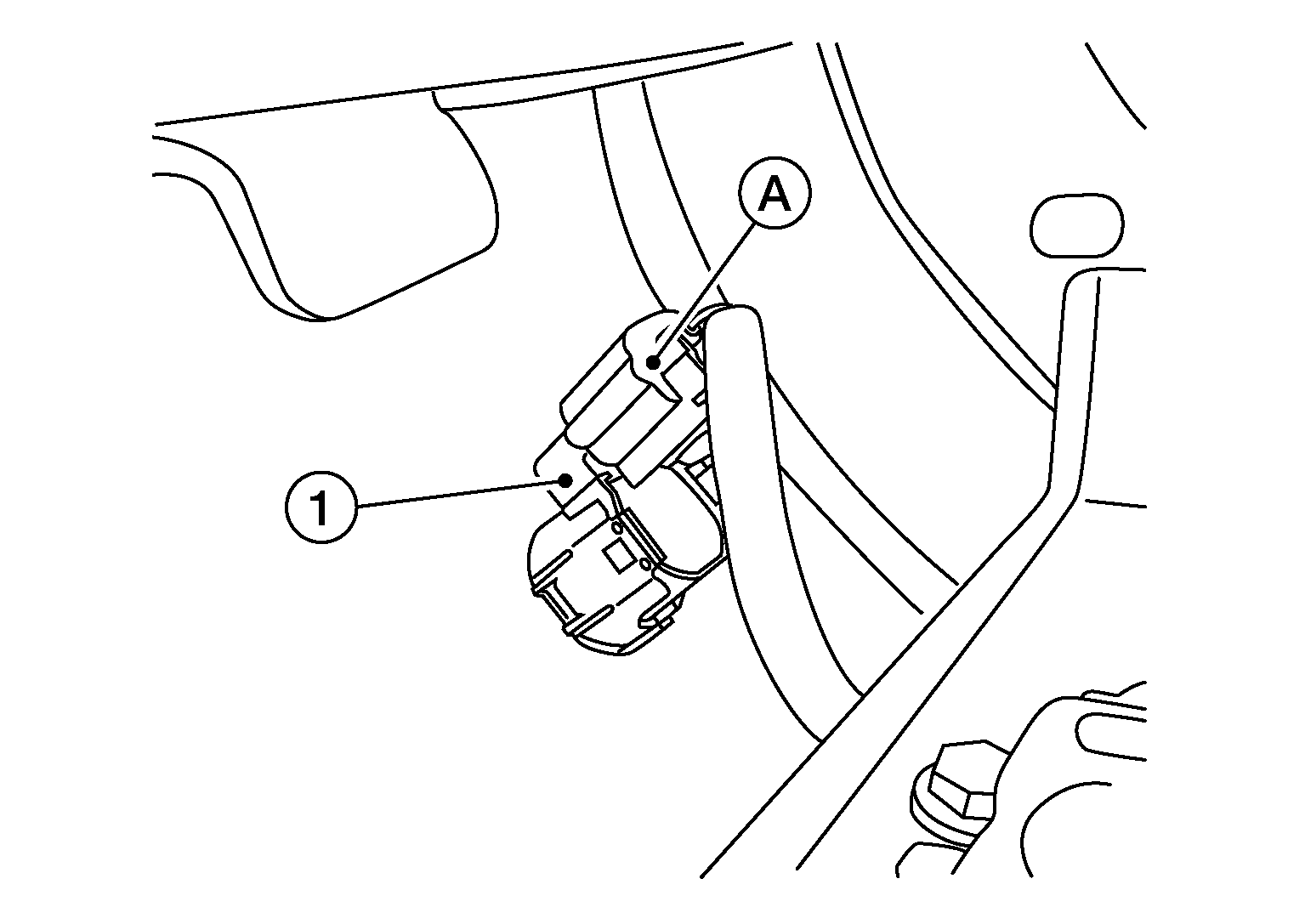

  6. Disconnect harness connector (A) from front sonar outer sensor [1 (if equipped)].
    GNSALNIA1805Z-805Courtesy of NISSAN NORTH AMERICA, INC.
  7. Disconnect harness connectors from fog lamp (if equipped).
  8. Remove clip and bolt from tow hook finisher, then remove tow hook finisher.
  9. Remove front bumper side bracket nuts (LH/RH).

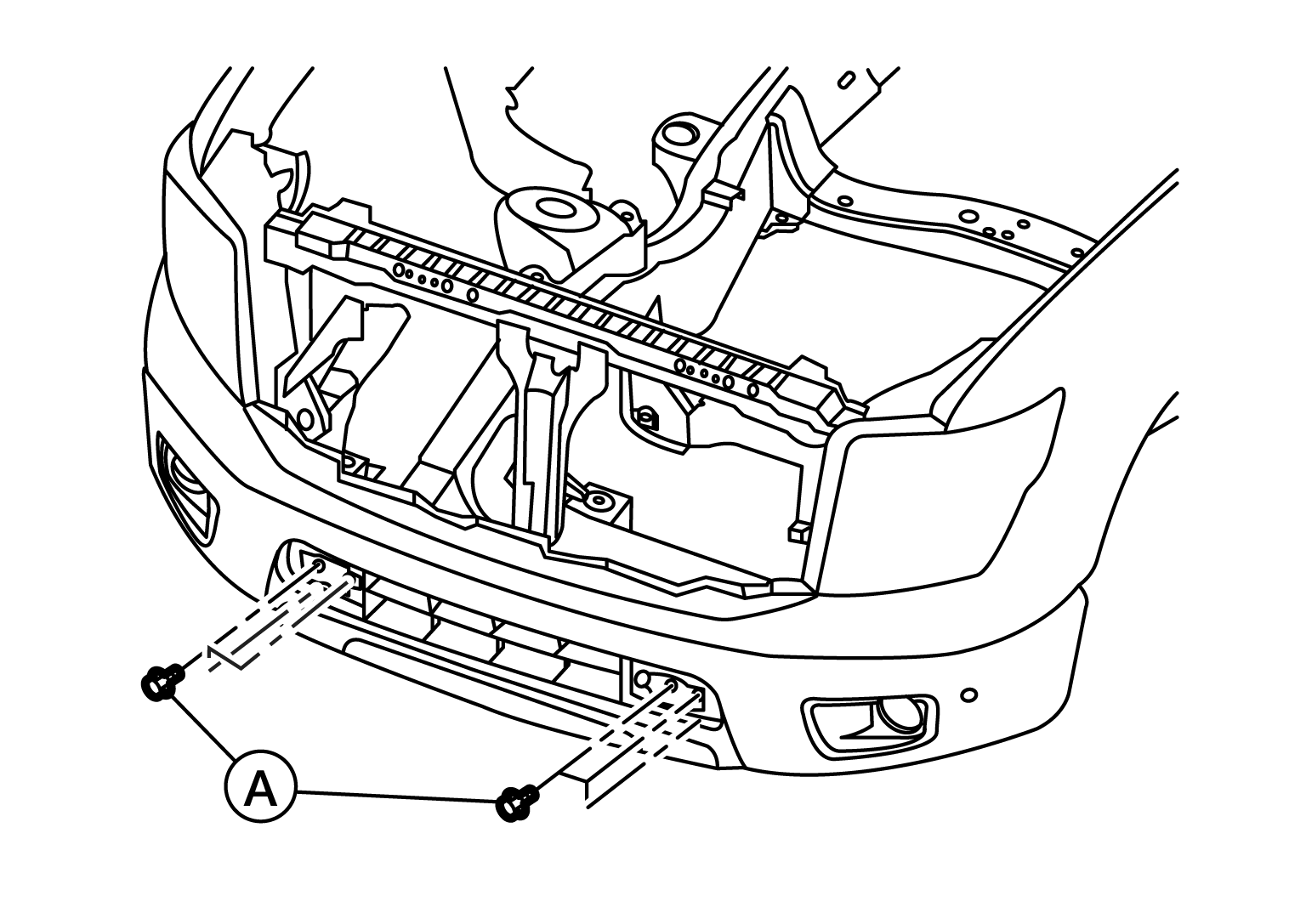

  10. Remove front bumper bolts [LH/RH (A)].
    GNSAWJIA2174Z-174Courtesy of NISSAN NORTH AMERICA, INC.
  11. Remove front bumper.
    CAUTION: When removing front bumper, two people are required.
