Front Bumper: Adjustment

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check clearance and surface height between front bumper and each part by visual inspection and tactile feel. If clearance and surface height are out of specification, adjust them.

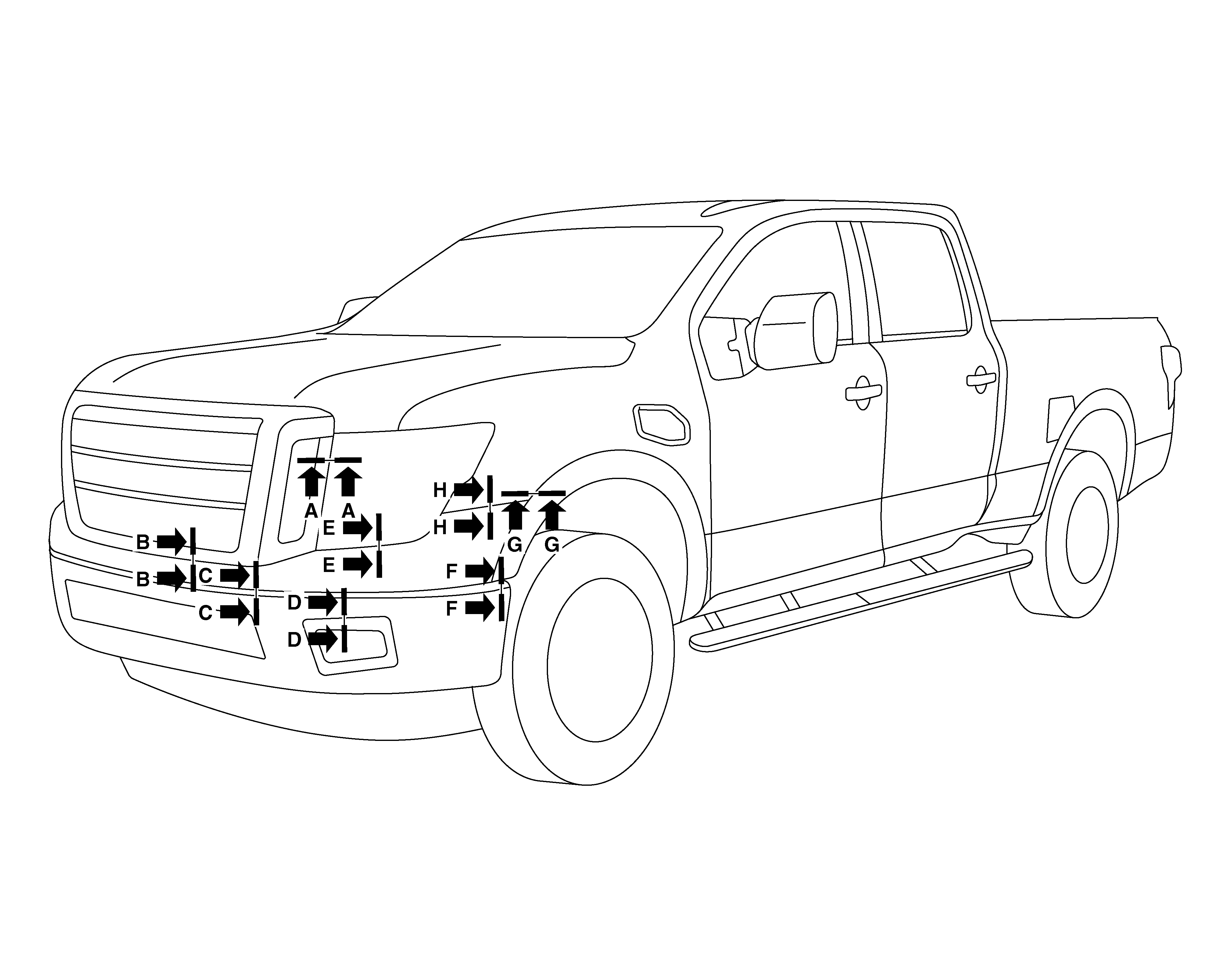

Fig 1: XD Models

Courtesy of NISSAN NORTH AMERICA, INC.

Unit: mm (in)

Section	Measurement	Standard	Parallelism
A-A	Clearance	4.2 ± 2.0 (0.17 ± 0.08)	1.5 (0.06)
A-A	Surface Height	-	-
B-B	Clearance	3.0 ± 1.5 (0.12 ± 0.06)	1.2 (0.05)
B-B	Surface Height	-	-
C-C	Clearance	24.0 ± 5.0 (0.94 ± 0.20)	5.0 (0.20)
C-C	Surface Height	-	-
D-D	Clearance	3.0 ± 2.0 (0.12 ± 0.08)	-
D-D	Surface Height	-	-
E-E	Clearance	2.0 ± 1.5 (0.08 ± 0.06)	1.5 (0.06)
E-E	Surface Height	-	-
F-F	Clearance	-	-
F-F	Surface Height	0.0 ± 1.7 (0.00 ± 0.07)	-
G-G	Clearance	0.5, +1.0, -0.5 (0.02, +0.04, -0.02)	-
G-G	Surface Height	-	-
H-H	Clearance	0.3, +1.0, - 0.3 (0.01,+0.04, - 0.01)	-
H-H	Surface Height	0.8 ± 1.0 (0.03 ± 0.04)	-

Fig 2: Non-XD Models

Courtesy of NISSAN NORTH AMERICA, INC.

Unit: mm (in)

Section	Measurement	Standard	Parallelism
A-A	Clearance	4.2 ± 2.2 (0.17 ± 0.09)	2.0 (0.08)
A-A	Surface Height	-	-
B-B	Clearance	2.5 ± 1.5 (0.10 ± 0.06)	1.2 (0.05)
B-B	Surface Height	-	-
C-C	Clearance	20.0 ± 5.0 (0.79 ± 0.20)	5.0 (0.20)
C-C	Surface Height	-	-
D-D	Clearance	4.1 ± 2.0 (0.16 ± 0.08)	-
D-D	Surface Height	-	-
E-E	Clearance	2.0 ± 1.5 (0.08 ± 0.06)	1.5 (0.06)
E-E	Surface Height	-	-
F-F	Clearance	-	-
F-F	Surface Height	0.0 ± 1.7 (0.00 ± 0.07)	-
G-G	Clearance	0.5, +1.0, -0.5 (0.02, +0.04, -0.02)	-
G-G	Surface Height	-	-
H-H	Clearance	0.3, +1.0, -0.3 (0.01, +0.04, -0.01)	-
H-H	Surface Height	0.8 ± 1.0 (0.03 ± 0.04)	1.0 (0.04)
