Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

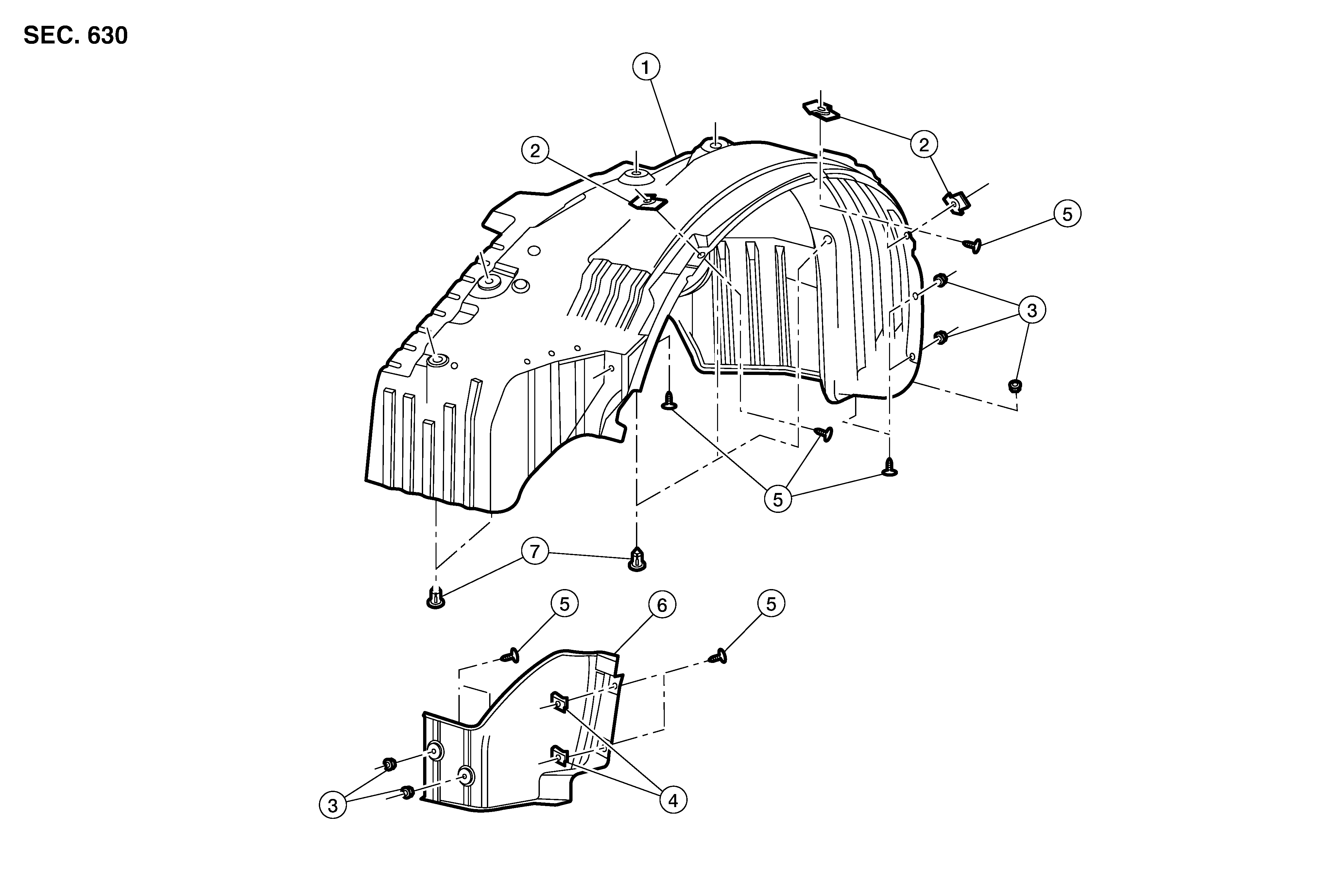

Fig 1: XD Models

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front fender protector	2.	Fender clip	3.	Screw grommet
4.	Clip	5.	Screw	6.	Front fender protector lower
7.	Clip

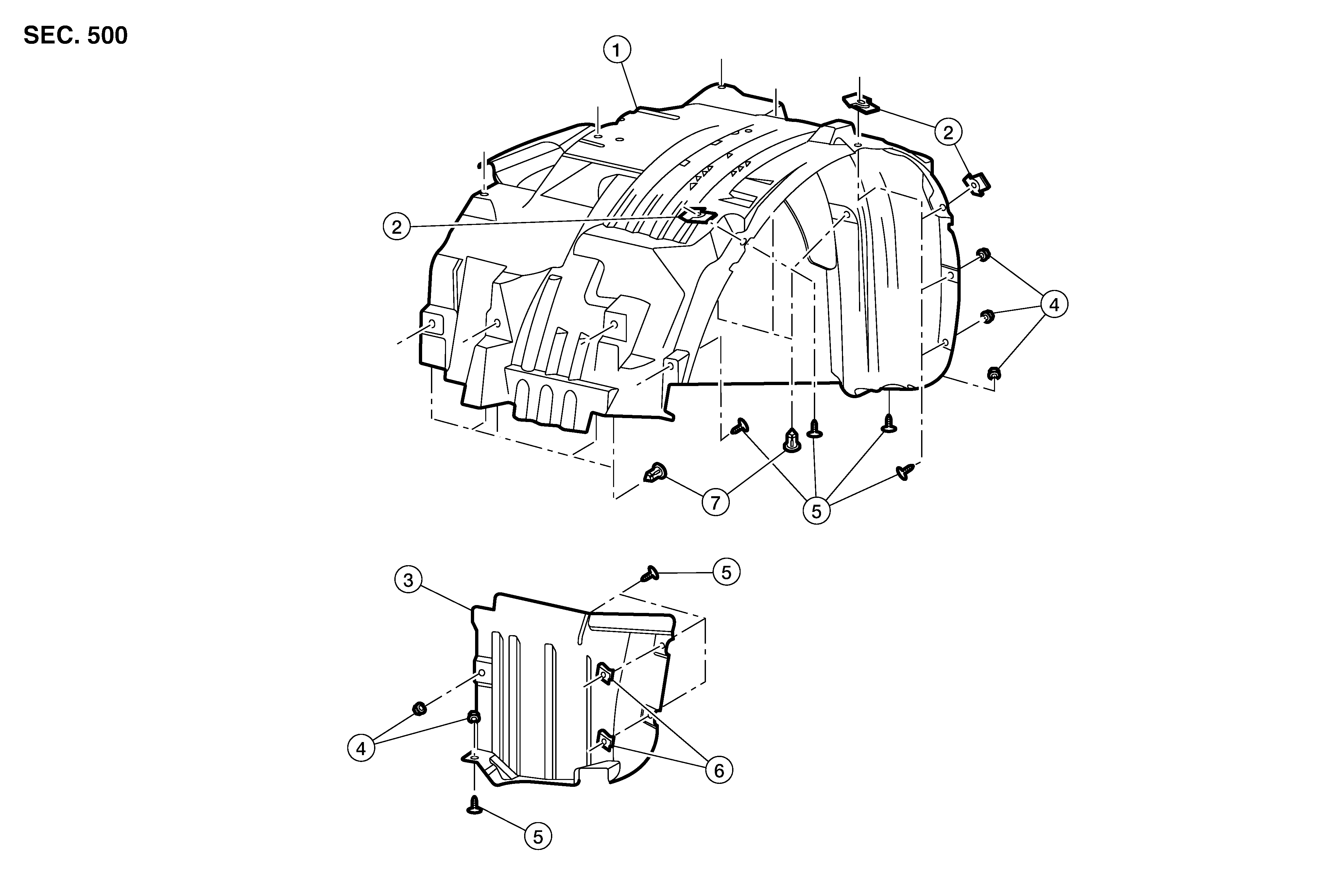

Fig 2: Non-XD Models

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front fender protector	2.	Fender clip	3.	Front fender protector lower
4.	Screw grommet	5.	Screw	6.	Clip
7.	Clip

Courtesy of NISSAN NORTH AMERICA, INC.

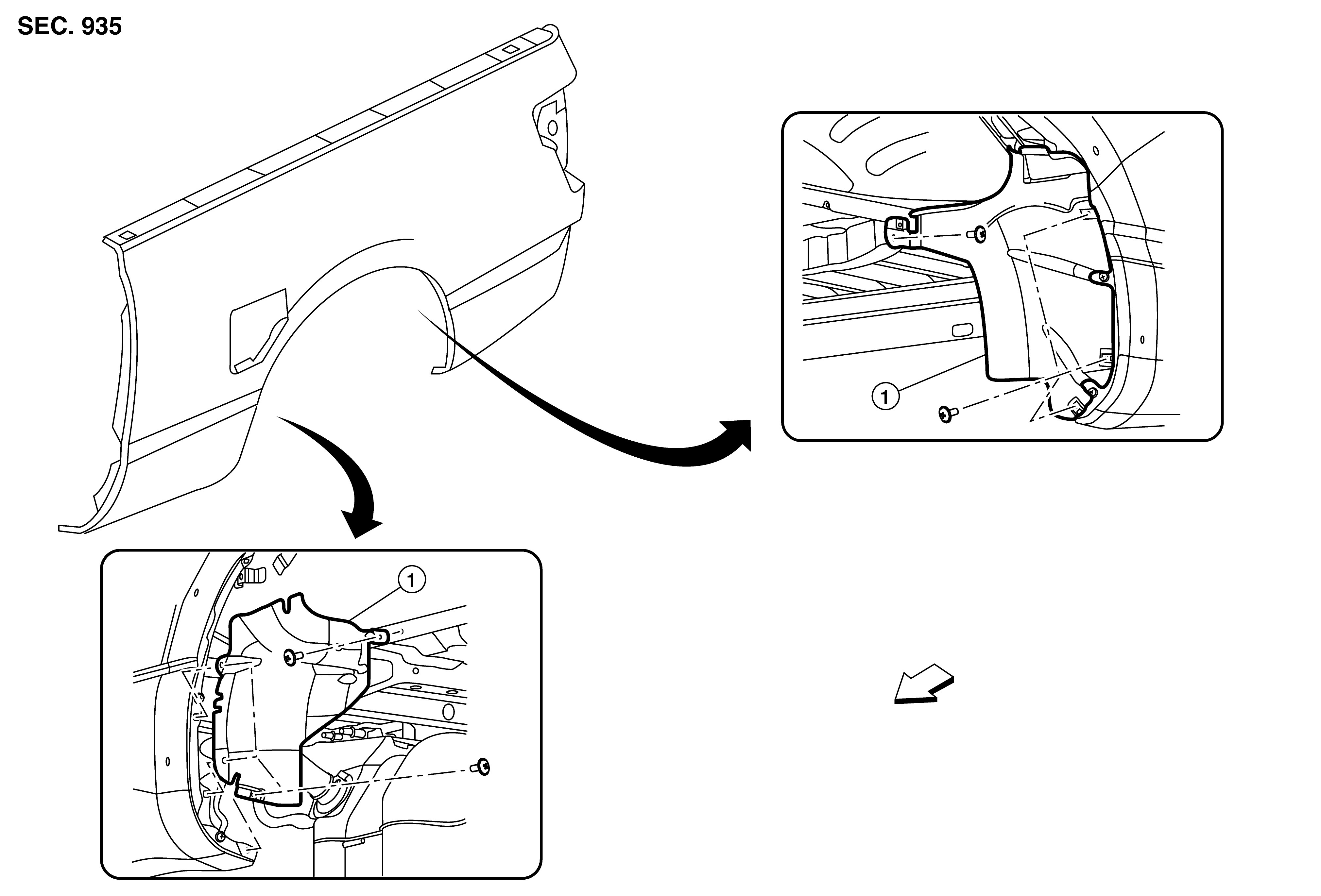

Rear fender protector

Front
