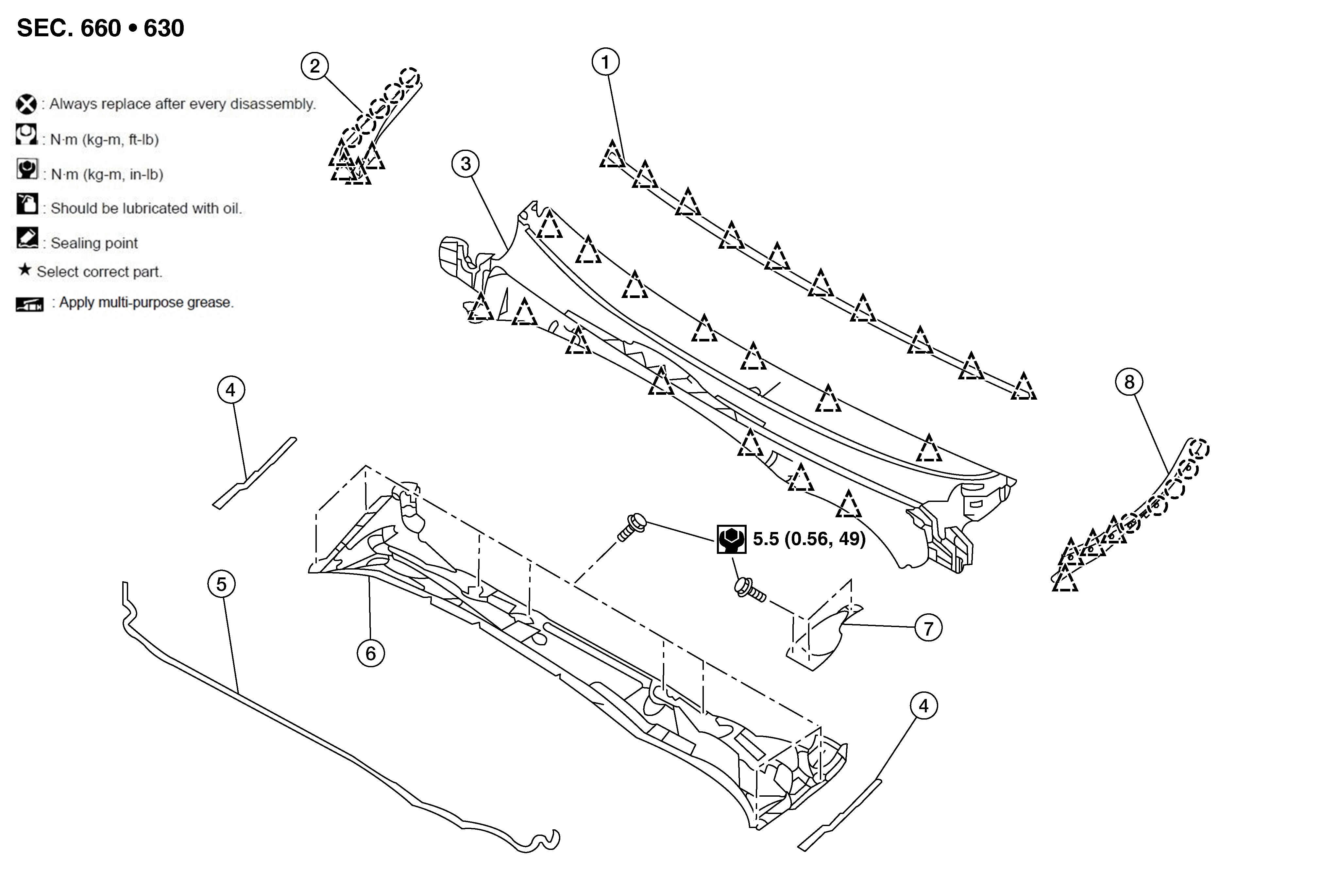

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Cowl top cover seal
|
2.
|
Cowl top side trim cover (RH)
|
3.
|
Cowl top cover
|
|
4.
|
Cowl top side seal (LH/RH)
|
5.
|
Washer nozzle supply hose
|
6.
|
Cowl top extension
|
|
7.
|
Cowl top extension bracket
|
8.
|
Cowl top side trim cover (LH)
|
|
Clip
|
|
|
Pawl
|
