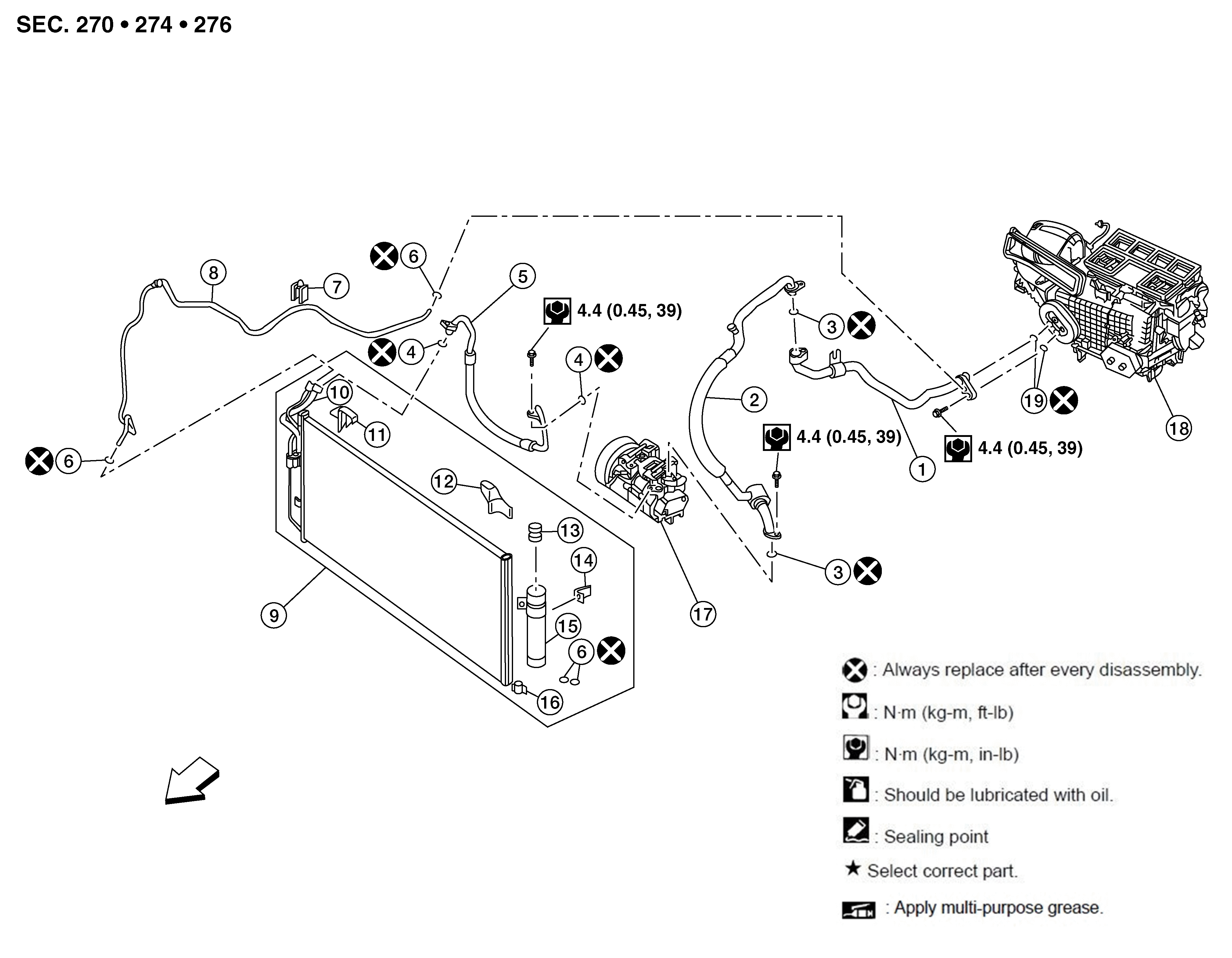

Component Location
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Low-pressure front pipe |
2. |
Low-pressure flexible hose |
3. |
O-ring |
|
4. |
O-ring |
5. |
High-pressure flexible hose |
6. |
O-ring |
|
7. |
Insulator |
8. |
High-pressure front pipe |
9. |
Liquid tank and condenser assembly |
|
10. |
Condenser to tank pipe assembly |
11. |
Condenser bracket RH |
12. |
Condenser bracket LH |
|
13. |
Pressure sensor |
14. |
Liquid tank bracket |
15. |
Liquid tank |
|
16. |
Condenser bracket |
17. |
Compressor |
18. |
Heating and cooling unit assembly |
|
19. |
O-ring |
|
Front arrow |
