Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Discharge the refrigerant. Refer to Recycle Refrigerant .
Partially drain the engine cooling system. Refer to Changing Engine Coolant .
Remove the engine room cover.
Disconnect the upper radiator hose.

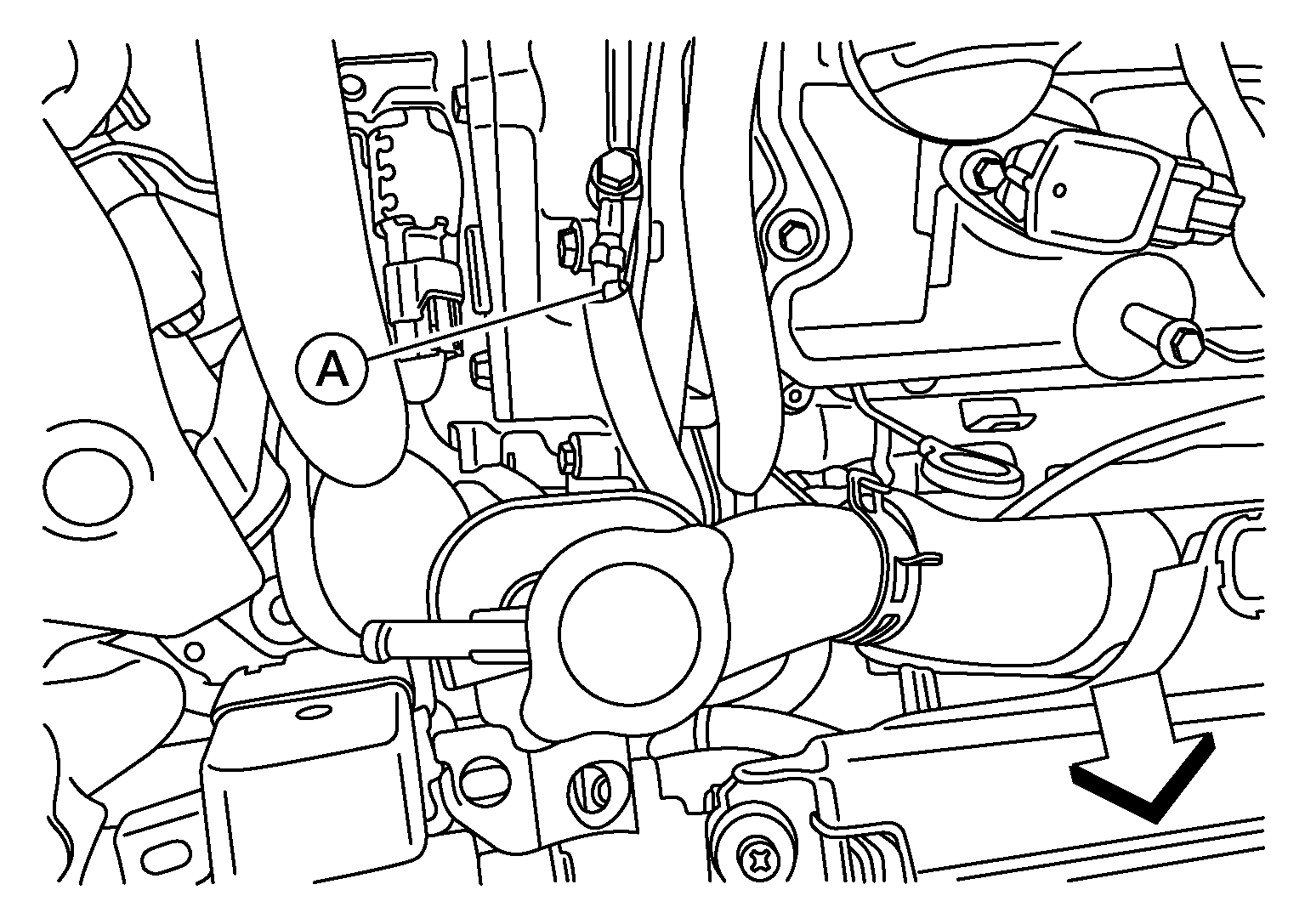

Remove the bolt (A) that retains the low-pressure flexible hose to the low-pressure pipe.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Cap or wrap the joint of the hose with suitable material such as vinyl tape to avoid the entry of air.
Disconnect ground wire (A) from front of engine.

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the low-pressure flexible hose from the compressor and the low-pressure pipe.
CAUTION: Cap or wrap the joint of the hose with suitable material such as vinyl tape to avoid the entry of air.
Remove the low-pressure flexible hose.
