Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Discharge the refrigerant. Refer to Recycle Refrigerant .

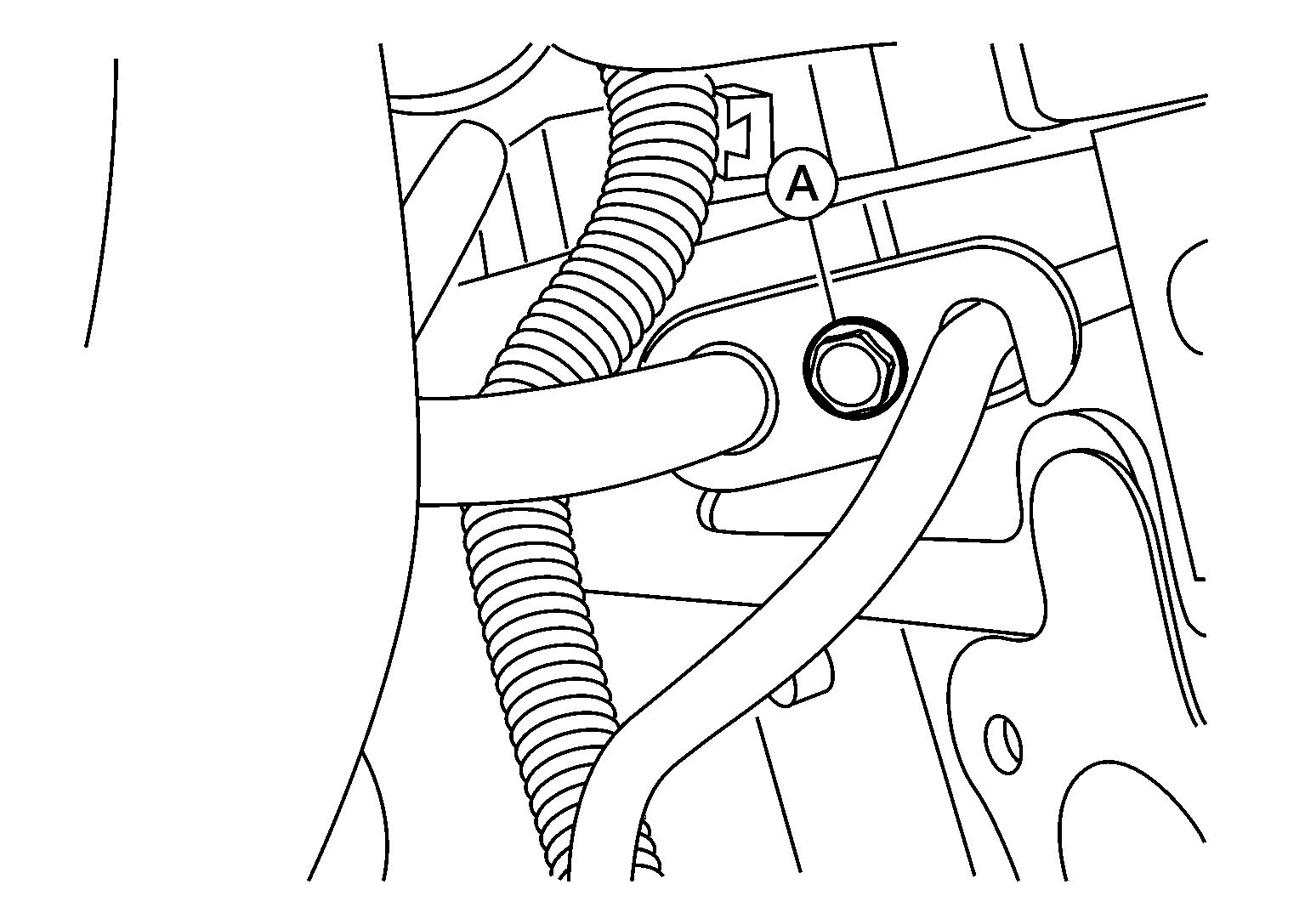

- Remove the bolt (A) that retains the high-pressure flexible hose to the condenser pipe.CAUTION: Cap or wrap the joint of the hose with suitable material such as a vinyl tape to avoid the entry of air.
- Disconnect the high-pressure flexible hose from the compressor and the high-pressure pipe and junction pipe.CAUTION: Cap or wrap the joint of the hose with suitable material such as vinyl tape to avoid the entry of air.
- Remove the high-pressure flexible hose.
