Inspection After Installation
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

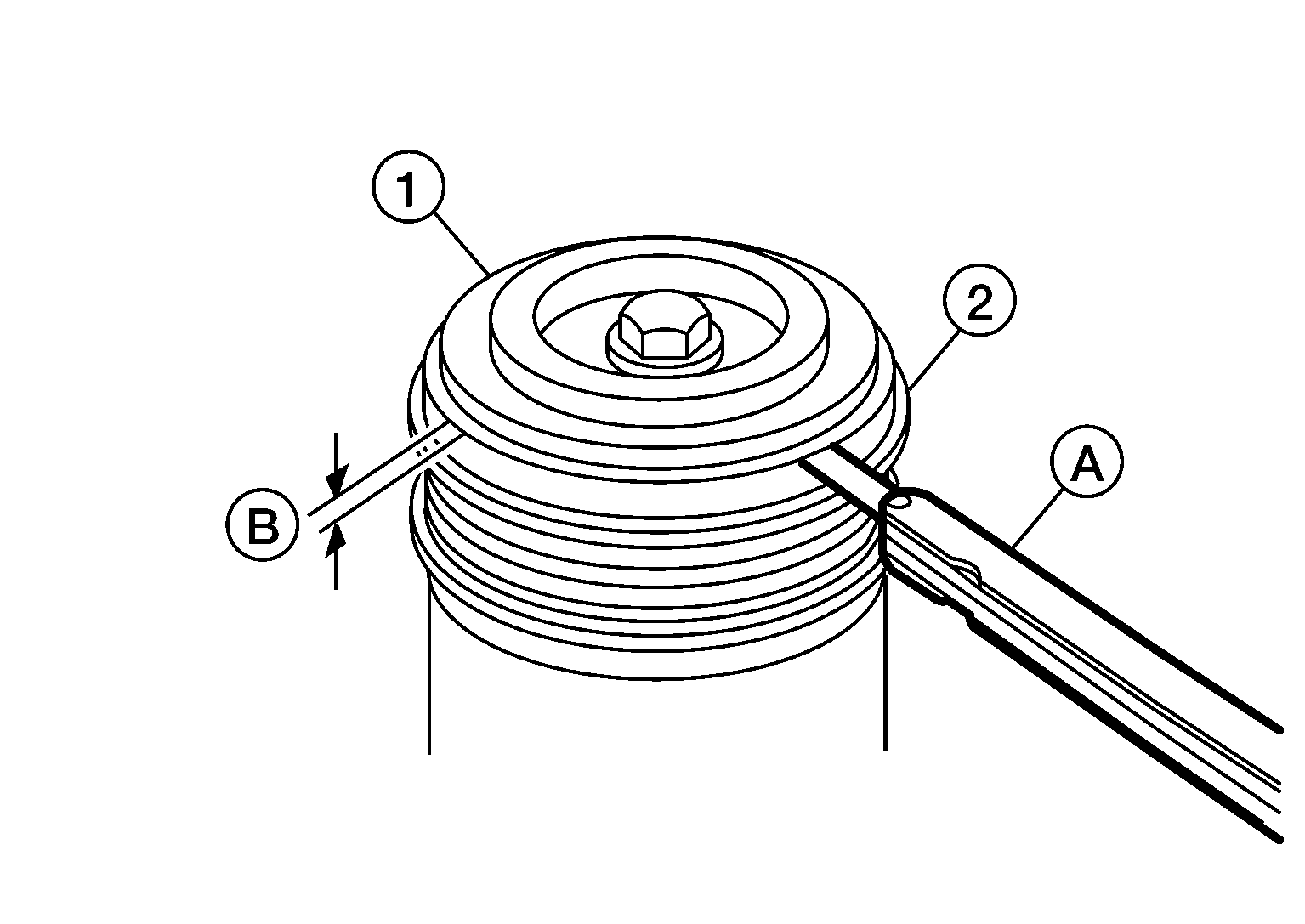

Check the clearance (B) all the way around between the clutch disc (1) and pulley (2) using a suitable tool (A) as shown, below.
|
Clutch disc-to-pulley clearance (B) |
Refer to Compressor . |
If the specified clearance (B) is not obtained, replace the adjusting shim(s) and recheck the clearance (B) as shown, above.
NOTE:
Magnet clutch is not available separately and must be replaced with the compressor unit as an assembly.
