Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center ventilator duct. Refer to Removal and Installation .

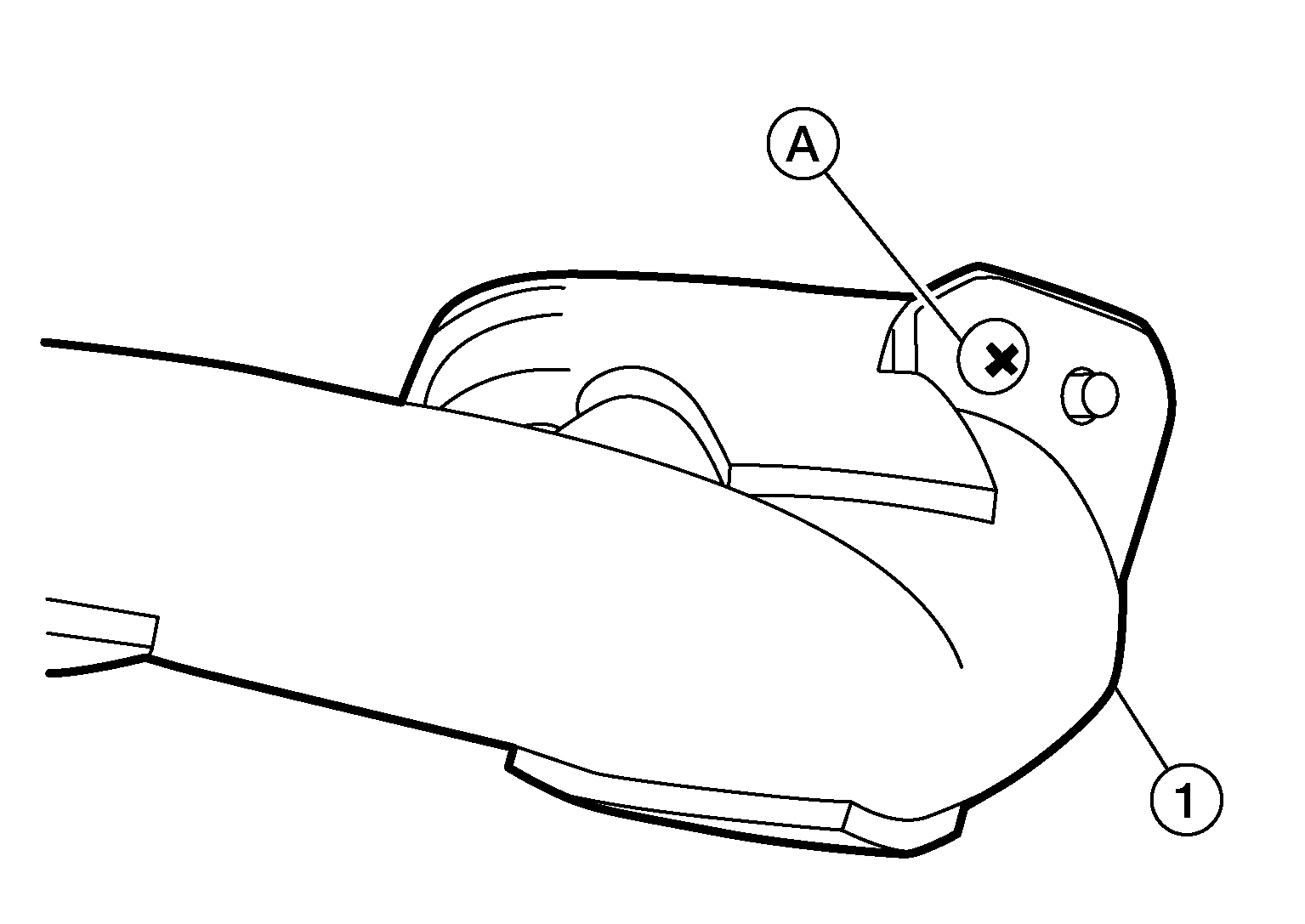

  2. Remove screw (A), then remove side defroster duct (1) from instrument panel.
    GNSAWIIA2023Z-023Courtesy of NISSAN NORTH AMERICA, INC.
