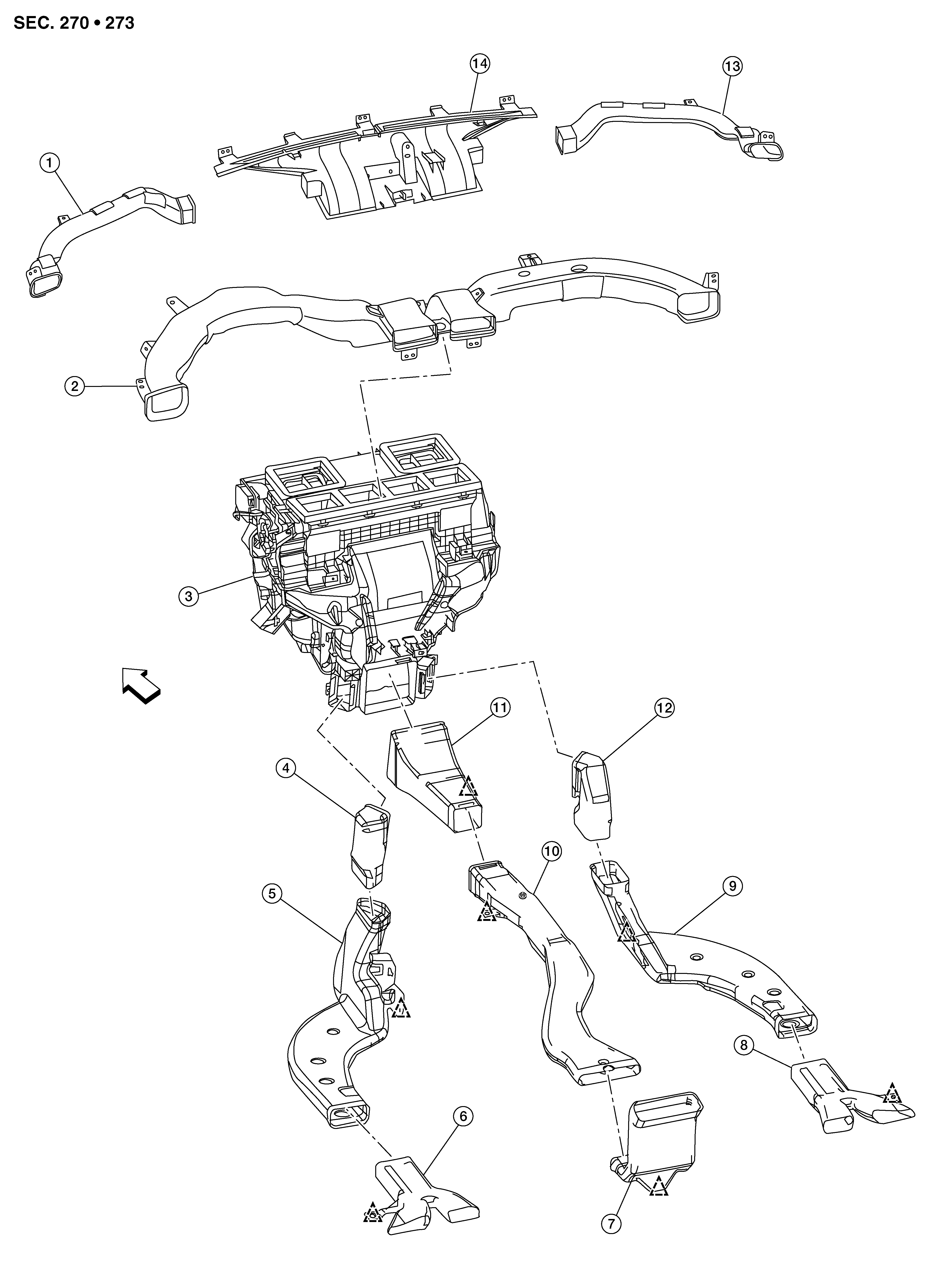

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Side defroster duct (LH) |
2. |
Center ventilator duct |
3. |
Heating and cooling unit assembly |
|
4. |
Front floor connecting duct (LH) |
5. |
Front floor duct (LH) |
6. |
Front floor duct nozzle (LH) |
|
7. |
Rear center ventilator duct |
8. |
Front floor duct nozzle (RH) |
9. |
Front floor duct (RH) |
|
10. |
Adaptor connecting duct |
11. |
Adaptor duct |
12. |
Front floor connecting duct (RH) |
|
13. |
Side defroster duct (RH) |
14. |
Defroster nozzle |
|
Front |
|
|
Clip |
