Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove side defroster ducts (LH/RH). Refer to Removal and Installation .
  2. Remove GPS antenna. Refer to Removal and Installation .
  3. Remove screws (A) from defroster nozzle (1).
  4. Release pawls and remove defroster nozzle (1).

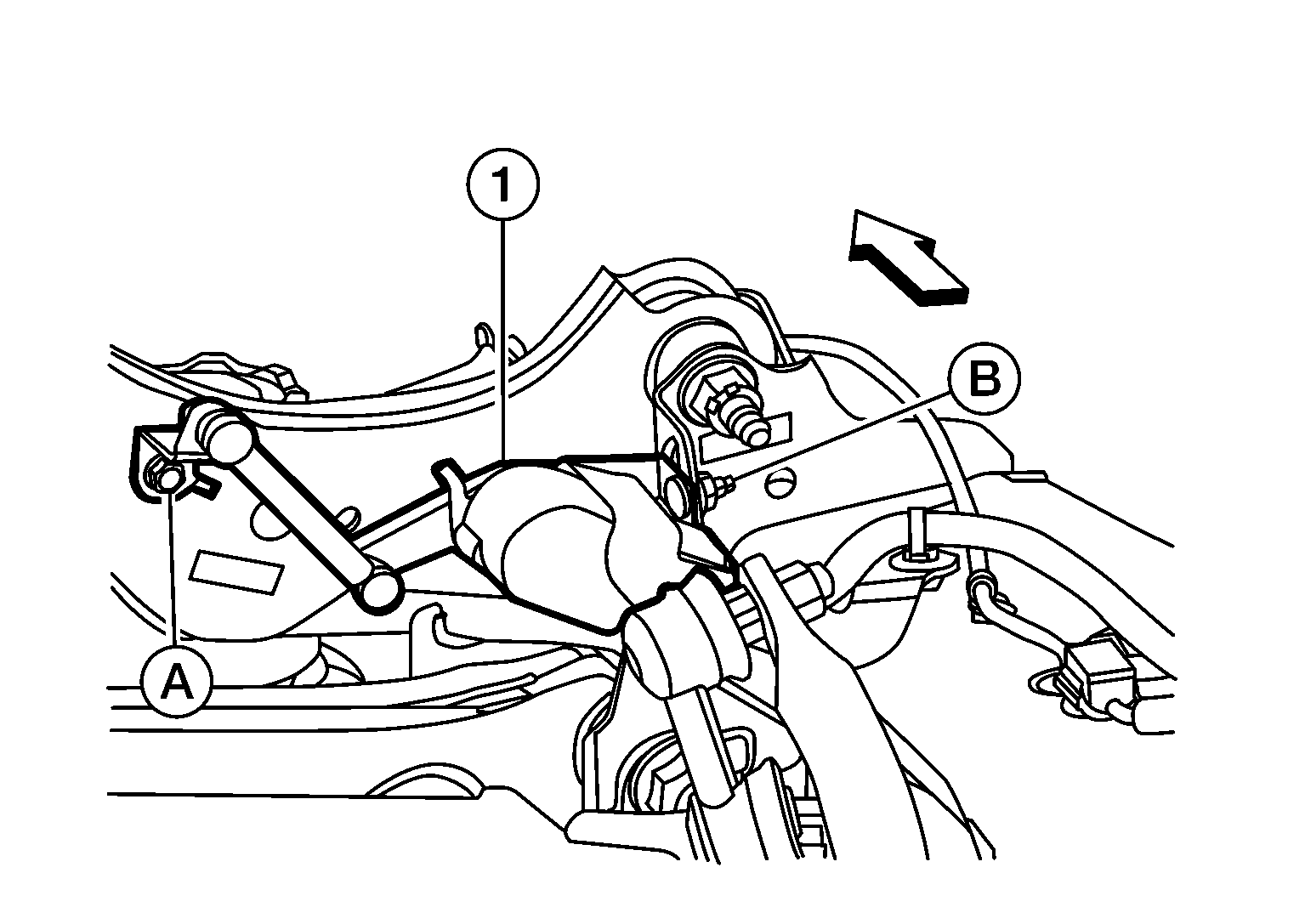

    GNSALLIA1181Z-181Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
