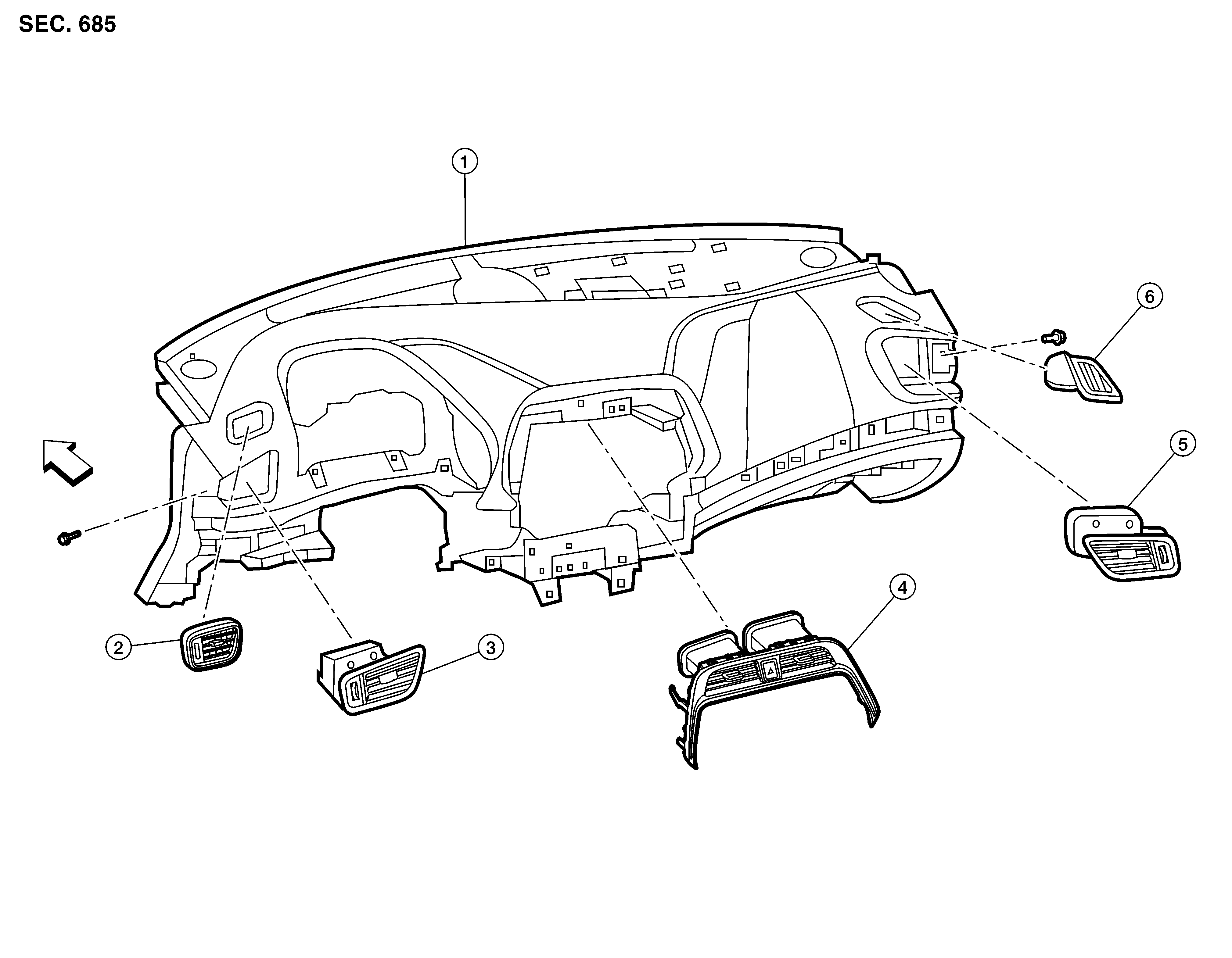

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Instrument panel
|
2.
|
Side defroster grille (LH)
|
3.
|
Side ventilator grille (LH)
|
|
4.
|
Center ventilator grille
|
5.
|
Side ventilator grille (RH)
|
6.
|
Side defroster grille (RH)
|
|
|
Pawl
|
|
Front
|
