Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

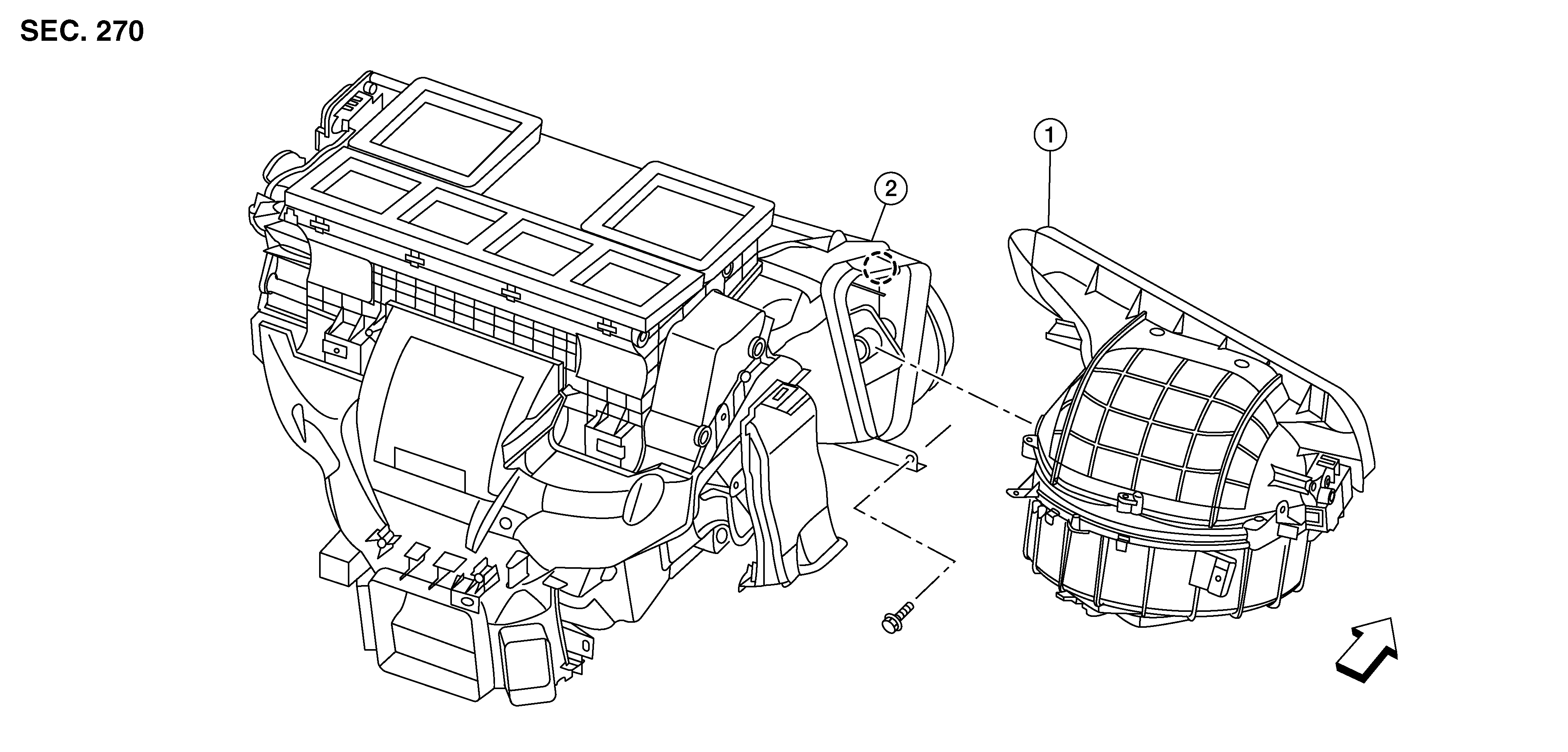

GNSAWIIA1909Z-909Courtesy of NISSAN NORTH AMERICA, INC.

1.

Blower unit

2.

Heating and cooling unit assembly
