Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

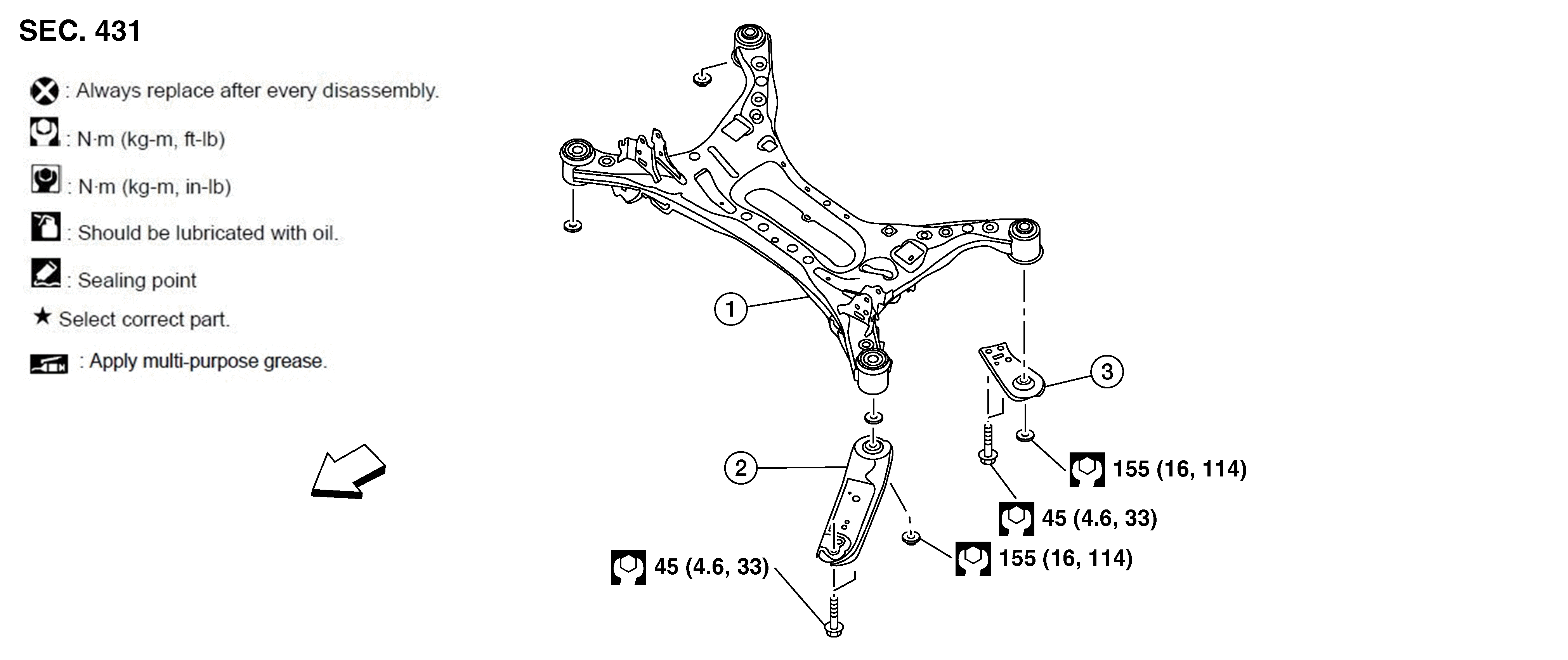

Fig 1: Rear Suspension Member With Torque Specifications
GNSAWEIA0523Z-523Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rear suspension member

2.

Rear suspension member stay (front)

3.

Rear suspension member stay (rear)

SYMBOL

Front
