Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

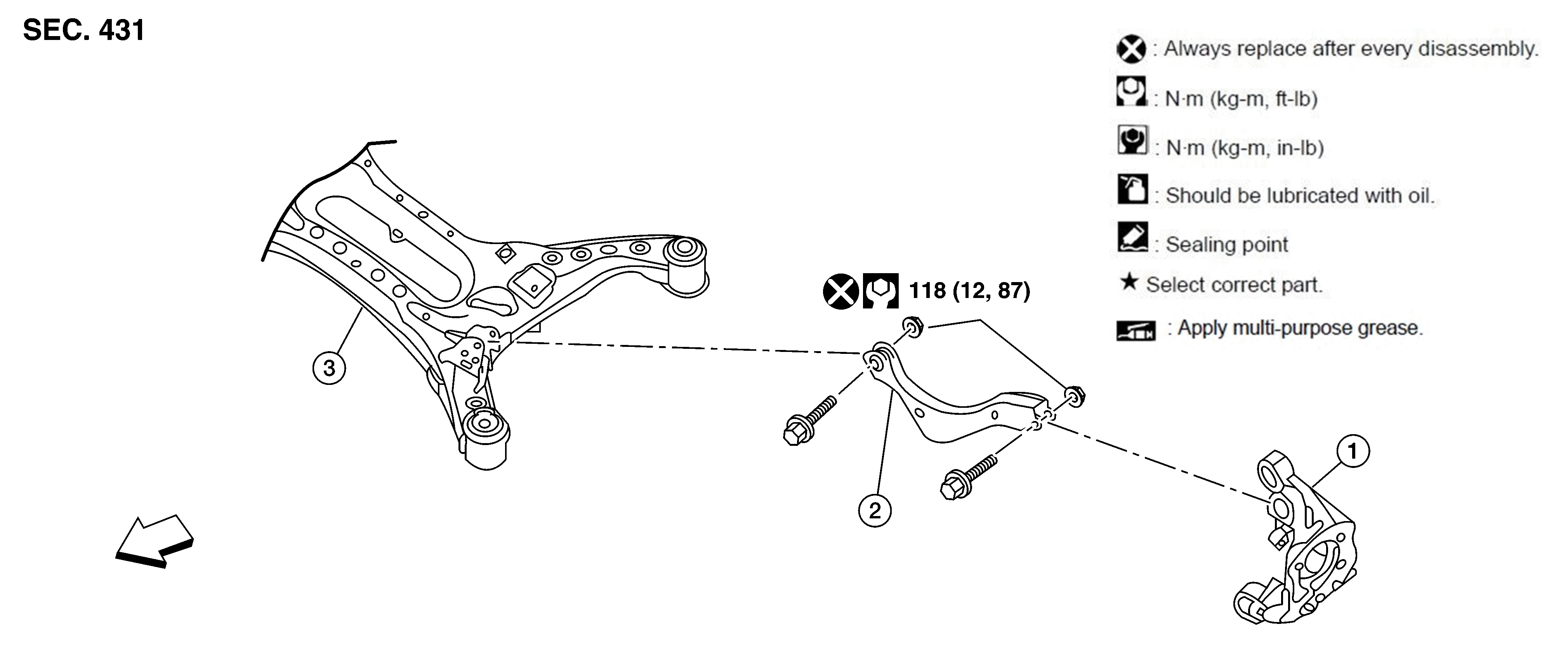

Fig 1: Rear Suspension Arm With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear knuckle	2.	Rear suspension arm	3.	Rear suspension member
	Front
