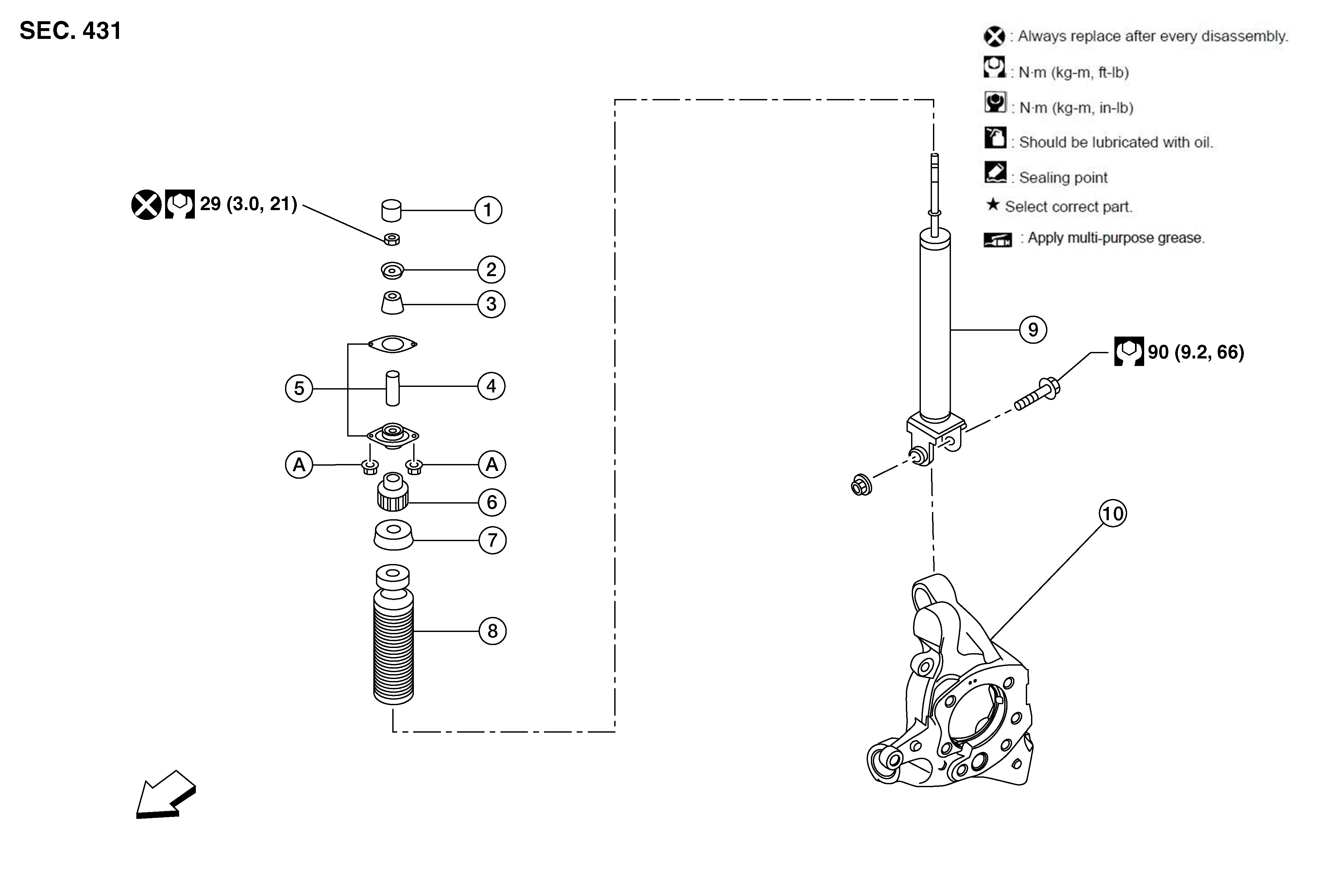

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Cap |
2. |
Washer |
3. |
Upper shock bushing |
|
4. |
Distance tube |
5. |
Shock absorber mount bracket |
6. |
Lower shock bushing |
|
7. |
Bound bumper cover |
8. |
Bound bumper |
9. |
Shock absorber |
|
10. |
Rear knuckle |
A |
Refer to Removal and Installation . |
|
Front |
