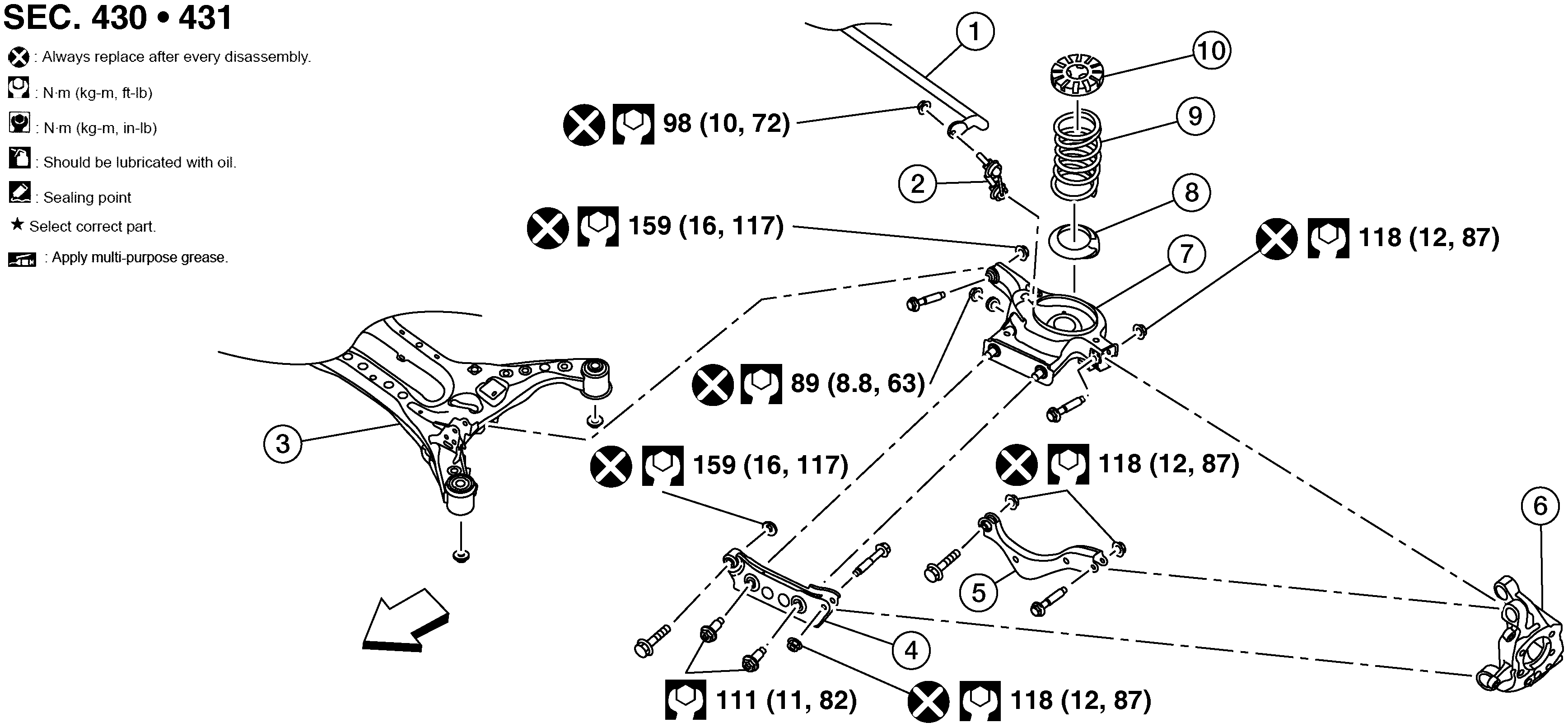

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Rear stabilizer
|
2.
|
Stabilizer connecting rod
|
3.
|
Rear suspension member
|
|
4.
|
Front lower link
|
5.
|
Rear suspension arm
|
6.
|
Rear knuckle
|
|
7.
|
Rear lower link
|
8.
|
Spring lower seat
|
9.
|
Coil spring
|
|
10.
|
Spring upper seat
|
|
Front
|
