Component Inspection

  1. CHECK CRANKSHAFT POSITION SENSOR (POS)-1
    1. Turn ignition switch OFF.
    2. Loosen the fixing bolt of the sensor.
    3. Disconnect crankshaft position sensor (POS) harness connector.
    4. Remove the sensor.
    5. Visually check the sensor for chipping.

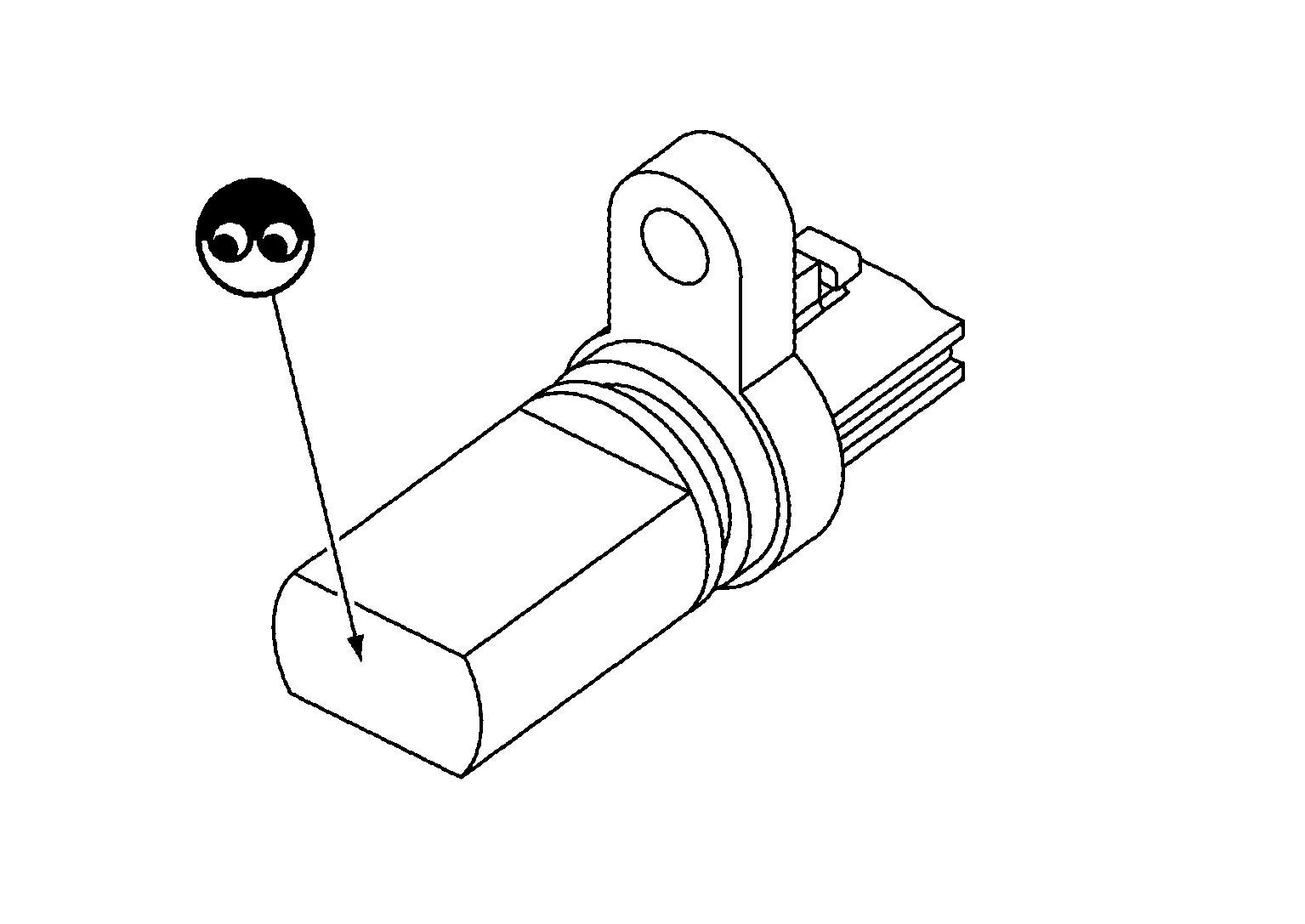

      GNSJPBIA5390Z-390Courtesy of NISSAN NORTH AMERICA, INC.

    Is the inspection result normal?

    YES

    GO TO 2.

    NO

    Replace crankshaft position sensor (POS). Refer to Component Location .

  2. CHECK CRANKSHAFT POSITION SENSOR (POS)-2

    Check the resistance between crankshaft position sensor (POS) terminals as per the following.

    GNSJPBIA5388Z-388Courtesy of NISSAN NORTH AMERICA, INC.

    Crankshaft position sensor (POS)

    Resistance [at 25 deg.C (77 deg.F)]

    +

    -

    Terminal (Polarity)

    1

    2

    Except 0 or INF.Ohm

    3

    2

    3

    Is the inspection result normal?

    YES

    INSPECTION END

    NO

    Replace crankshaft position sensor (POS). Refer to Component Location .
