Removal and Installation: Removal
- Remove tilt lever knob from tilt lever by inserting a suitable tool into slot of tilt lever knob, then depress tab and withdraw tilt lever knob.
- Remove cluster lid A. Refer to Removal and Installation .
- Rotate the steering wheel enough to expose left or right steering column cover screw, then remove screw.

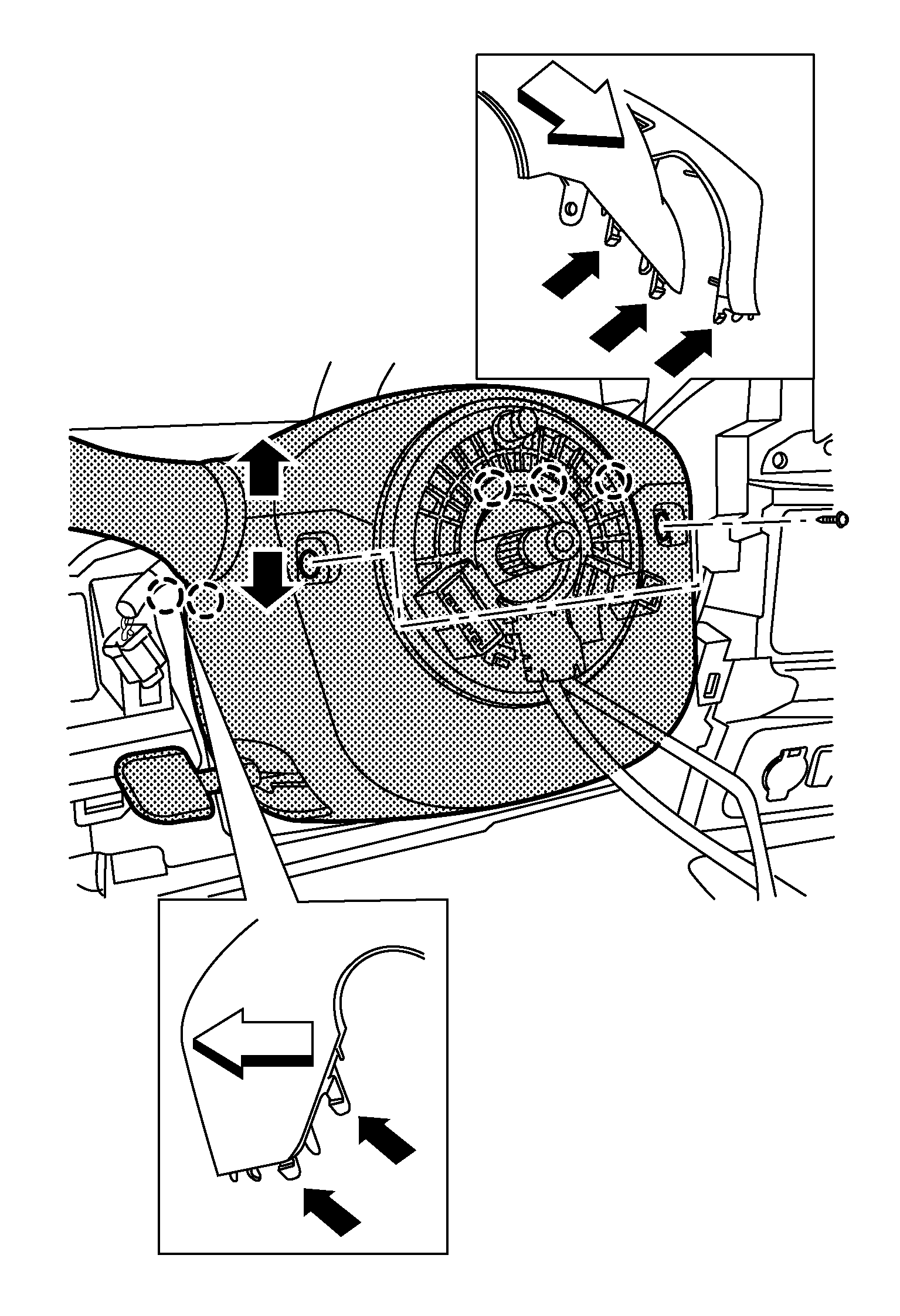

: Pawl
NOTE: Shown with steering wheel removed for clarity. - Rotate the steering wheel in opposite direction, then remove remaining screw.
- Release the pawls and separate the steering column cover upper cover from the steering column lower cover and remove the covers.
