Removal and Installation: Removal

Courtesy of NISSAN NORTH AMERICA, INC.

Suitable tool

Metal clip

Pawl

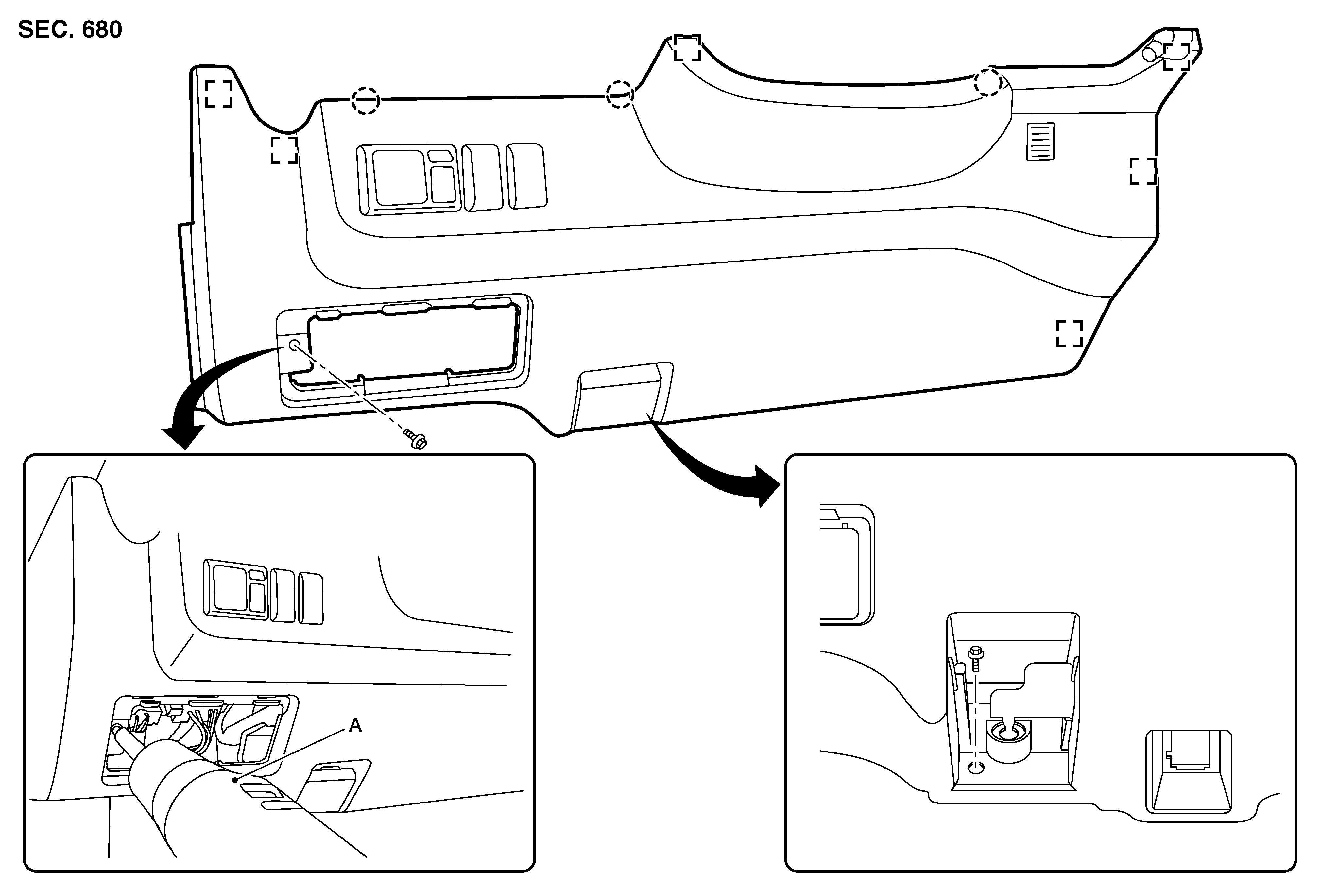

Remove fuse access cover by pulling rearward.

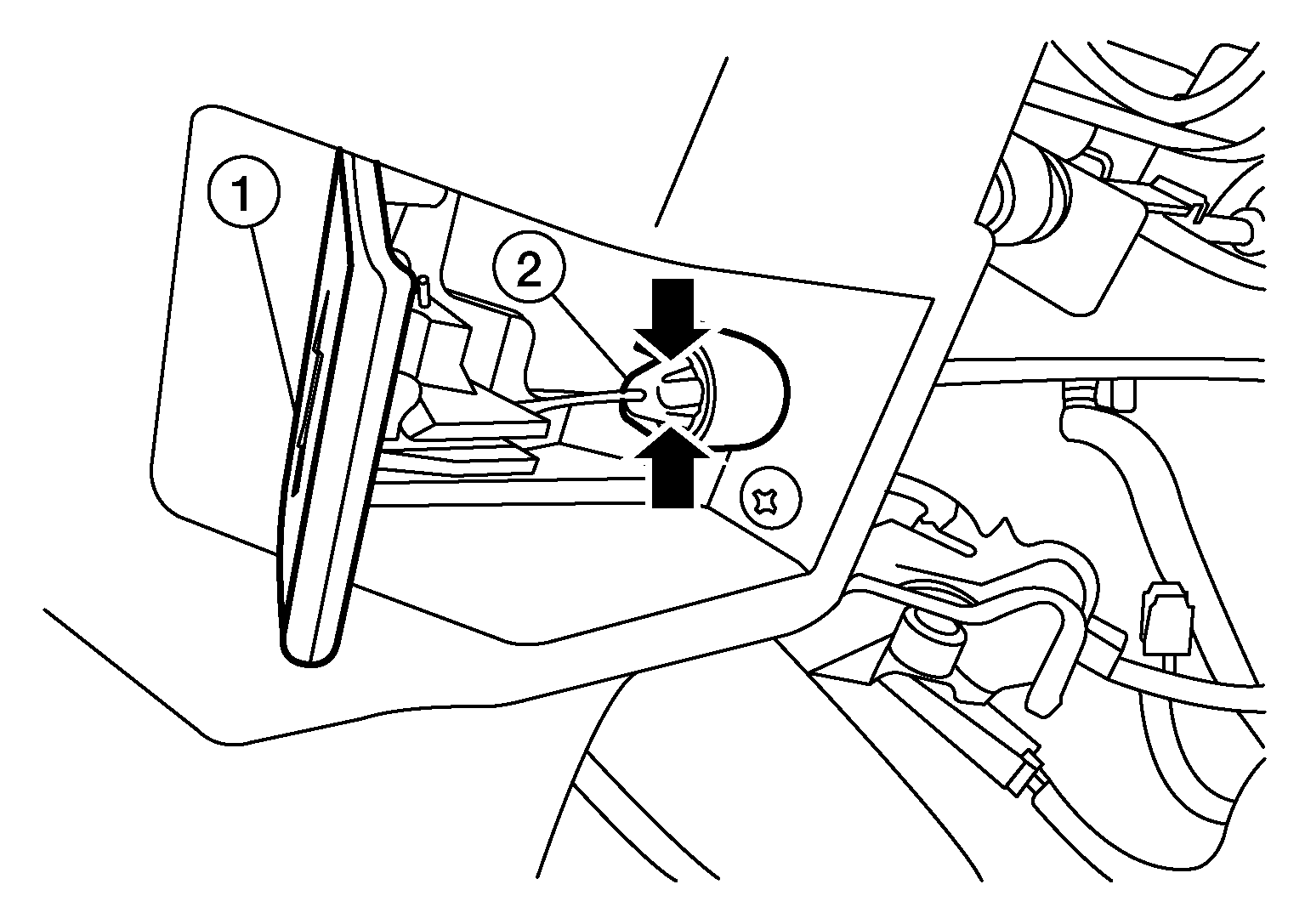

Lift hood release handle (1), then release the cable (2).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove instrument lower panel LH screws.

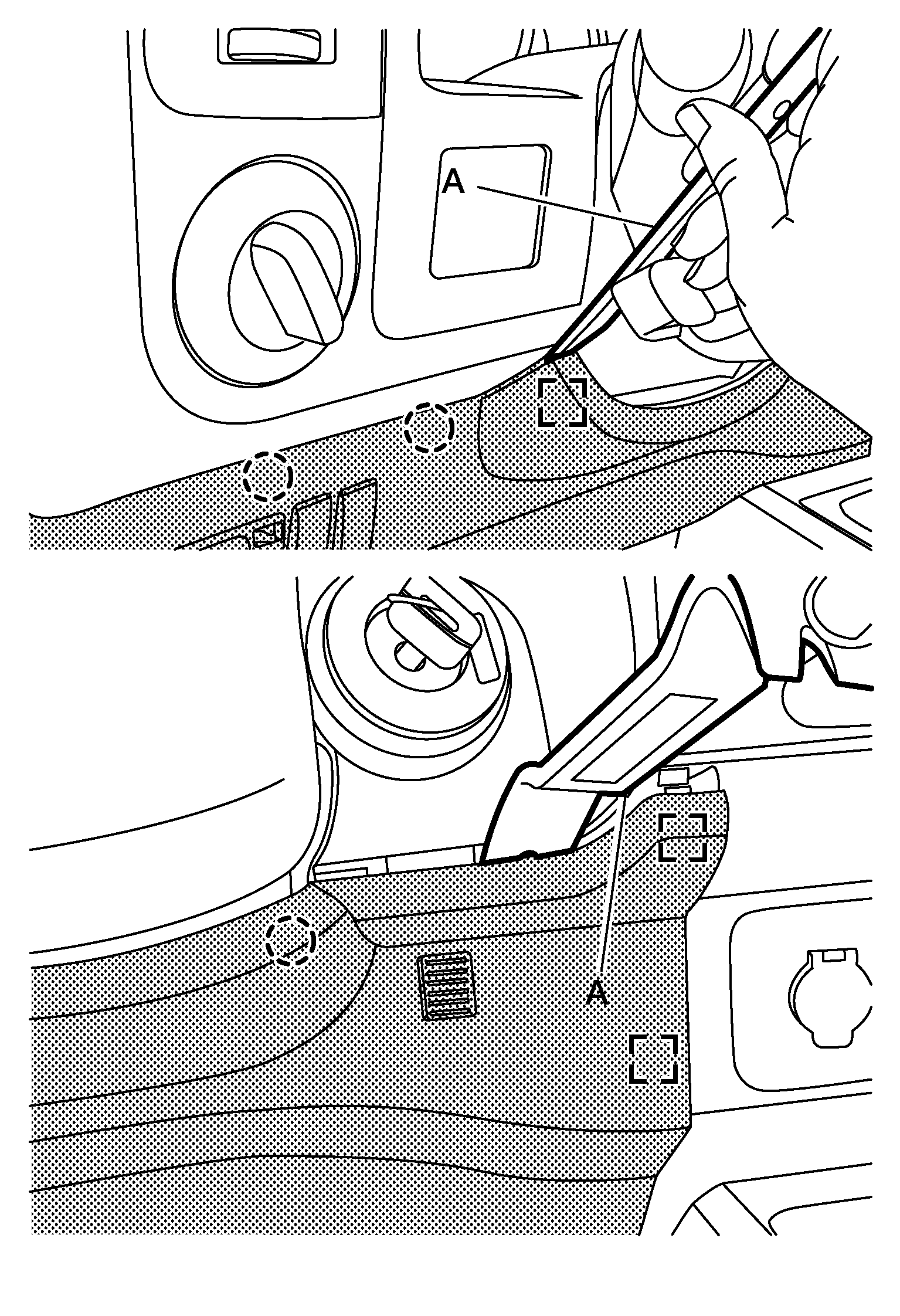

Release the metal clips and pawls using a suitable tool (A), then pull instrument lower panel LH rearward.

Courtesy of NISSAN NORTH AMERICA, INC.

: Metal clip

: Pawl
Disconnect harness connectors from instrument lower panel LH and remove.
