Removal and Installation: Removal

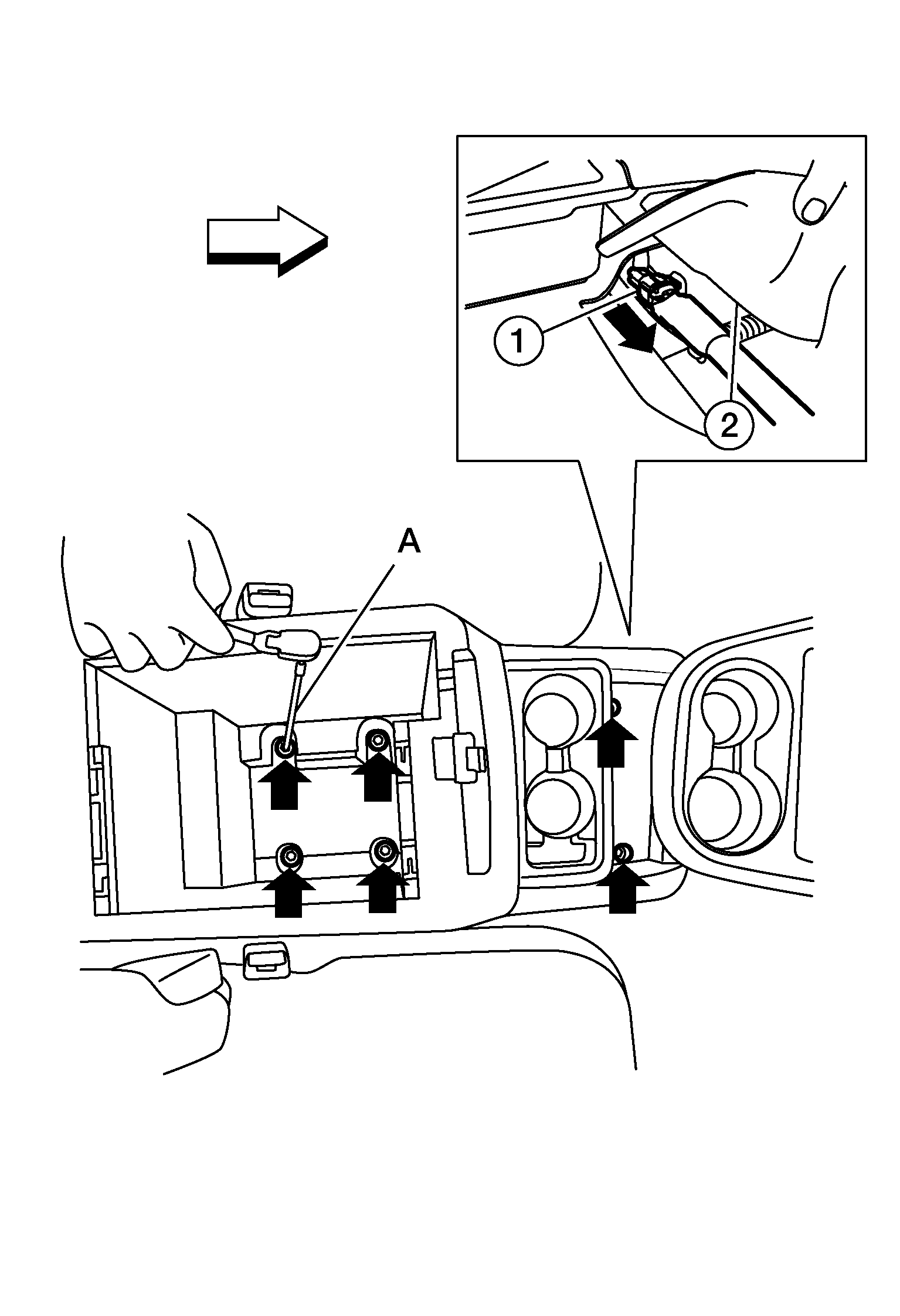

  1. Disconnect the harness connector (1) from the center console assembly located under floor trim (2) near the front edge of the driver seat.
    GNSDB112501Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  2. Open the center console lid and remove storage tray (for access). Remove the four bolts located inside the console, using a suitable tool (A).
  3. Remove the two bolts located in the front storage tray.
  4. Remove center console as an assembly from the floor.
    5. CAUTION: Always use an assistant to steady the center console assembly during removal.
