Exploded View

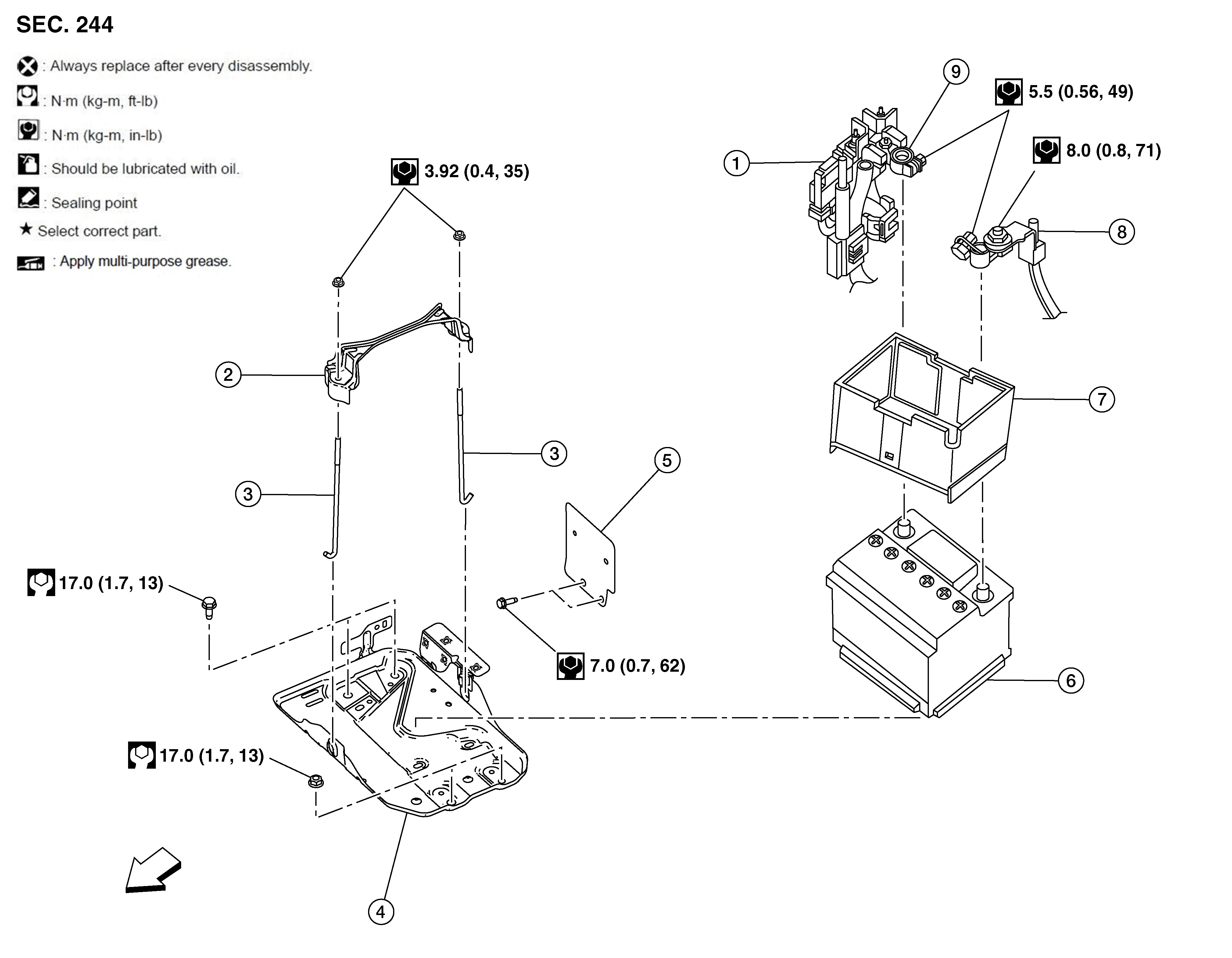

Fig 1: Battery Components With Torque Specification
GNSALMIA0271Z-271Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fusible link box (battery)

2.

Battery frame

3.

Battery rods

4.

Battery tray

5.

Battery stop plate

6.

Battery

7.

Battery cover

8.

Negative terminal

9.

Positive terminal

SYMBOL

Front
