Removal and Installation: Removal

  1. Disconnect battery terminals. Refer to Battery Disconnect .
    CAUTION: To prevent damage to the parts, disconnect the battery negative terminal first.

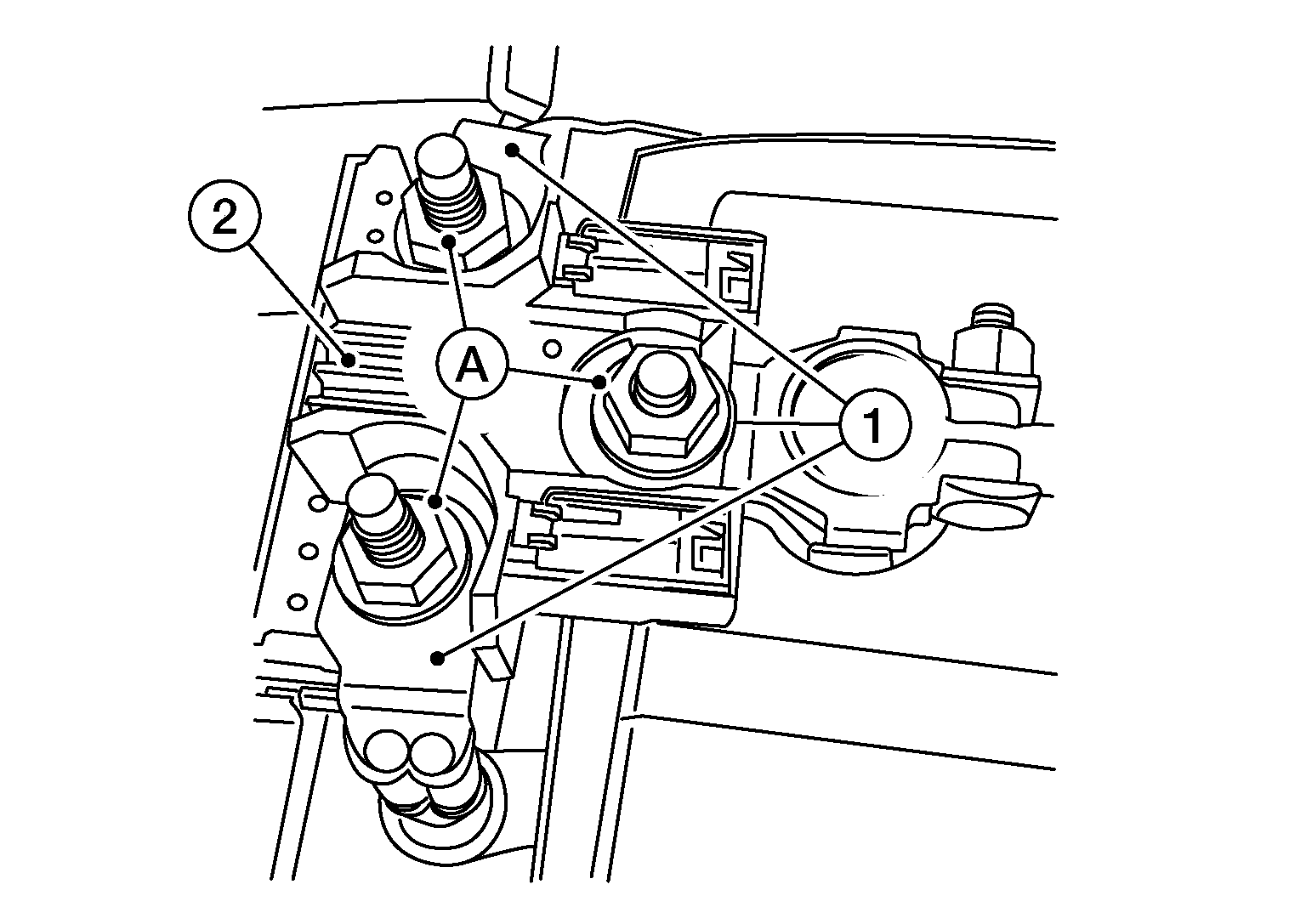

  2. Remove nuts (A) and positive cables (1) from fusible link box (2).
    GNSALMIA0266Z-266Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect harness connectors and remove fusible link box (battery).
