Exploded View

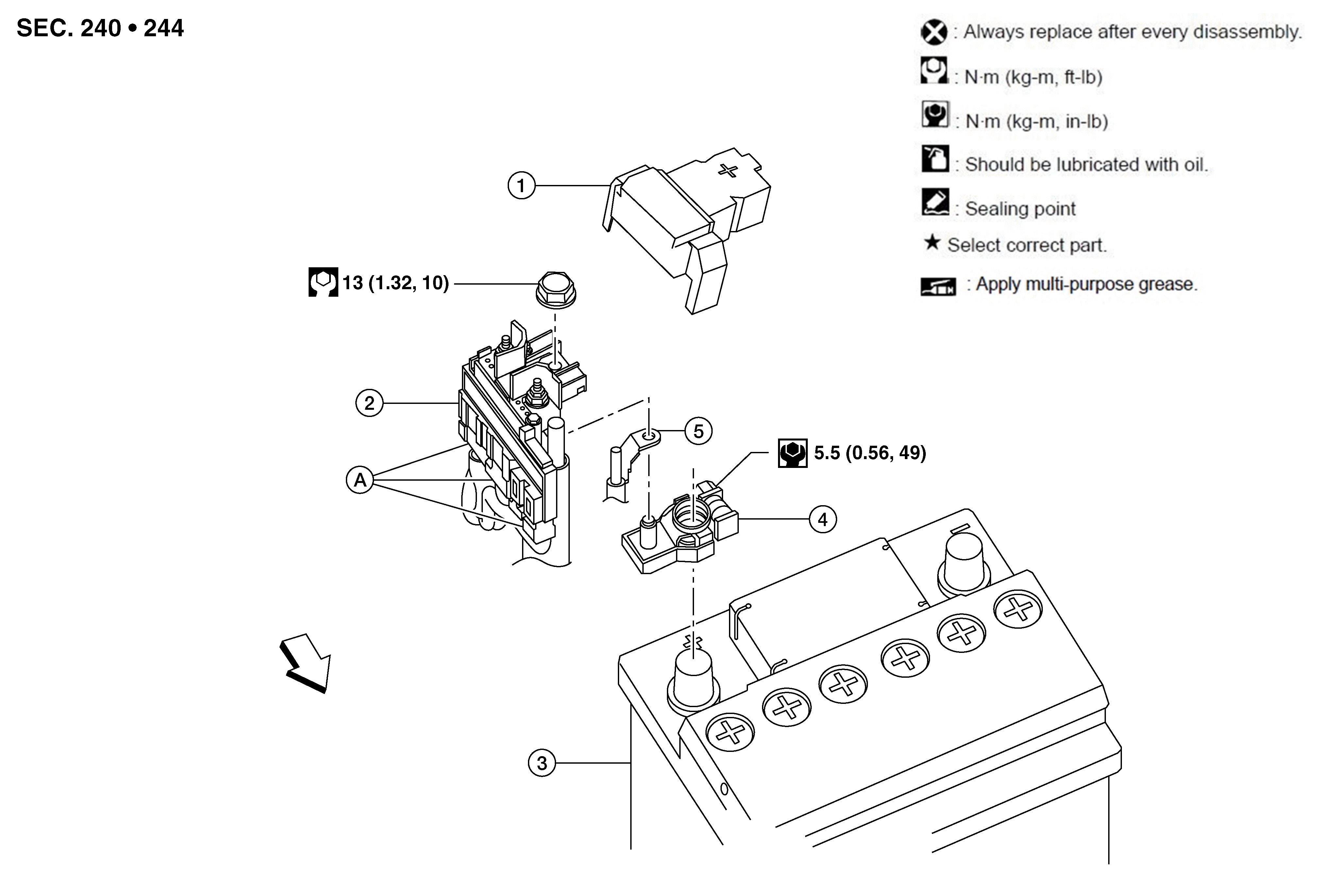

Fig 1: Battery Terminal With Fusible Link Components With Torque Specification
GNSALMIA0258Z-258Courtesy of NISSAN NORTH AMERICA, INC.

1.

Cover

2.

Fusible link box (battery)

3.

Battery

4.

Positive terminal

5.

Positive cable

A.

Harness connectors

SYMBOL

Front
