Exploded View

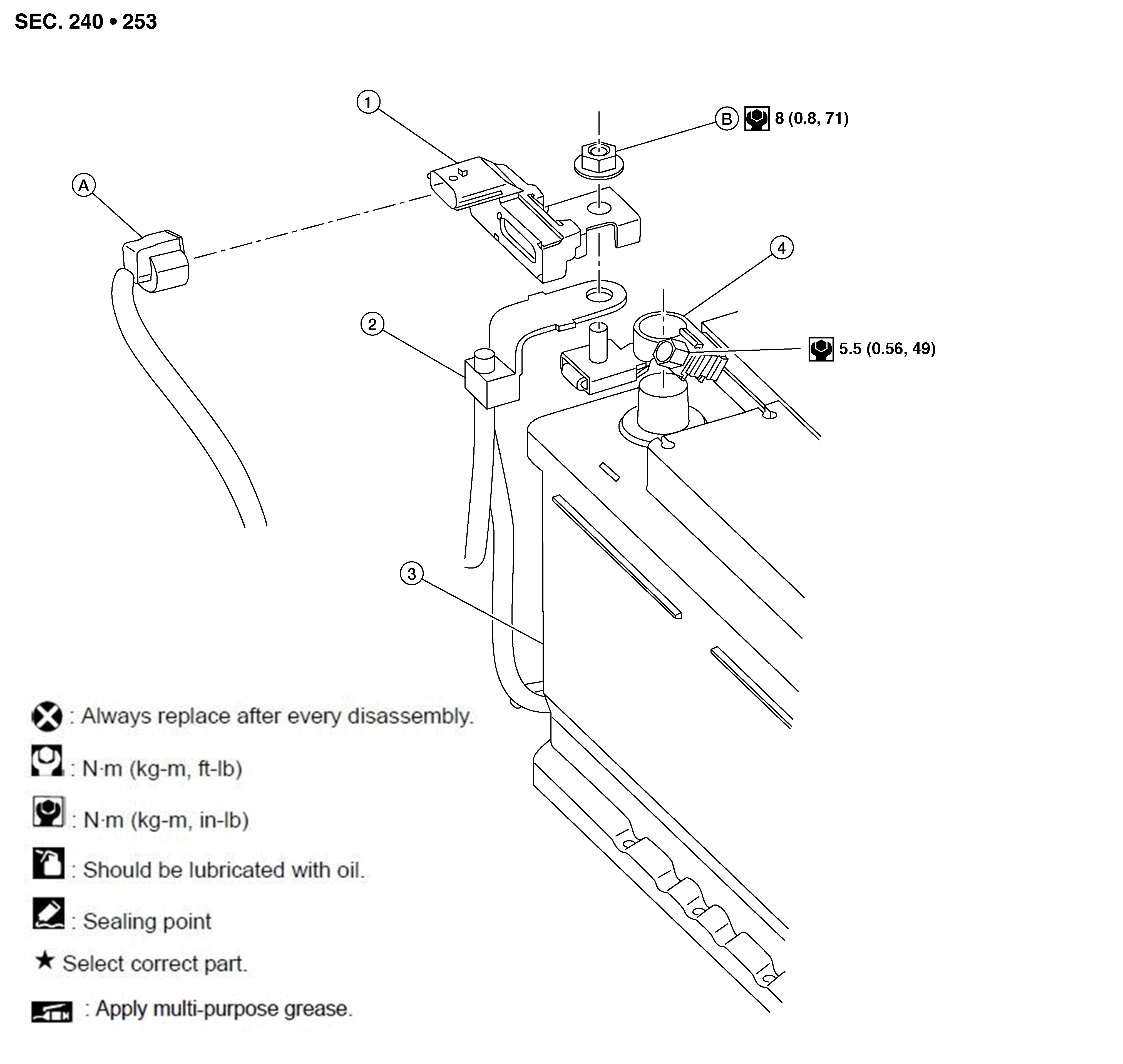

Fig 1: Battery Current Sensor Components With Torque Specification
GNSALMIA0262Z-262Courtesy of NISSAN NORTH AMERICA, INC.

1.

Battery current sensor

2.

Battery negative cable

3.

Battery

4.

Battery negative terminal

A.

Harness connector

B.

Nut
