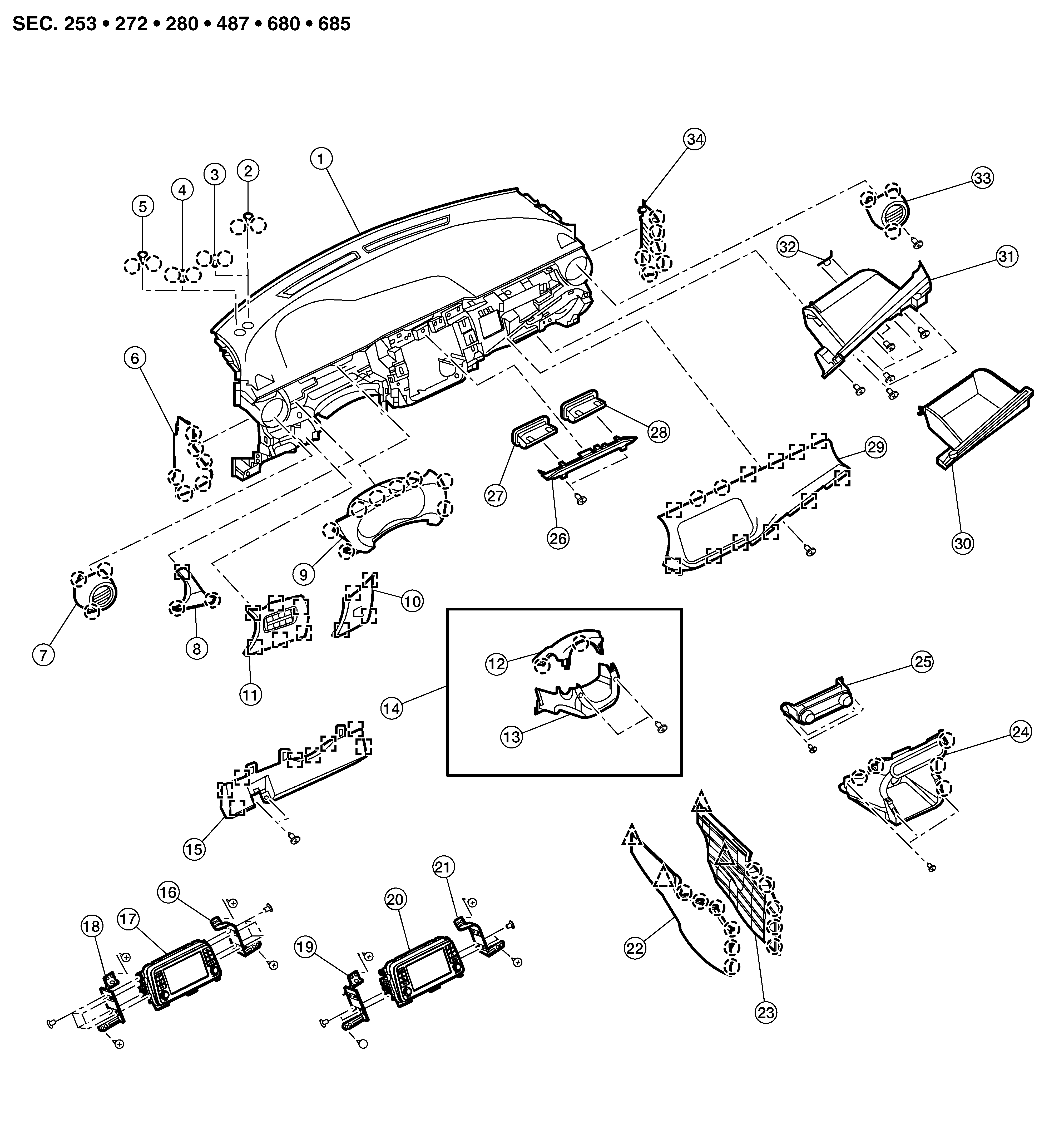

Exploded View
|
1. |
Instrument panel assembly |
2. |
Mask hole cover (without automatic air conditioning) |
3. |
Sunload sensor (with automatic air conditioning) |
|
4. |
Optical sensor (with auto light system) |
5. |
Mask hole cover (without automatic light system) |
6. |
Instrument side finisher (LH) |
|
7. |
Side ventilator grille (LH) |
8. |
Instrument finisher A |
9. |
Cluster lid A |
|
10. |
Instrument panel lower LH finisher |
11. |
Switch panel |
12. |
Steering column upper cover |
|
13. |
Steering column lower cover |
14. |
Steering column cover assembly |
15. |
Instrument panel lower LH |
|
16. |
Audio unit bracket (RH)) |
17. |
AV unit (with base audio) |
18. |
Audio unit bracket (LH) |
|
19. |
AV control unit bracket (LH) |
20. |
AV control unit (without base audio) |
21. |
AV control unit bracket (RH) |
|
22. |
Instrument lower cover (LH) |
23. |
Instrument lower cover (RH) |
24. |
Center console upper |
|
25. |
A/C switch assembly (with automatic air conditioning) |
26. |
Center ventilator grille finisher |
27. |
Center ventilator grille (LH) |
|
28. |
Center ventilator grille (RH) |
29. |
Instrument finisher B |
30. |
Glove box lid |
|
31. |
Glove box assembly housing |
32. |
Glove box striker |
33. |
Side ventilator grille (RH) |
|
34. |
Instrument side finisher (RH) |
|
Clip |
|
Pawl |
|
|
Metal clip |
