Removal and Installation: Notes

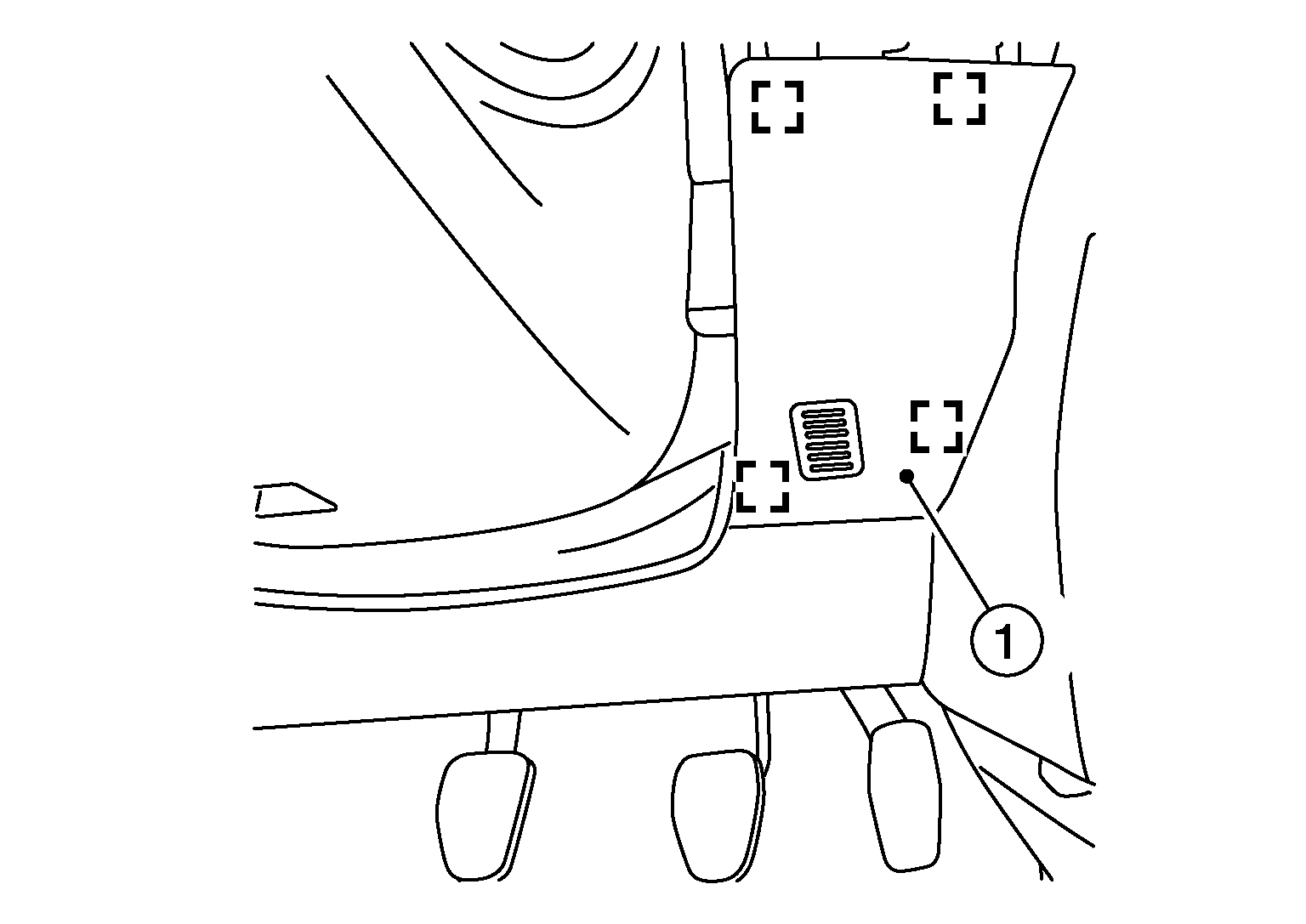

  1. Using a suitable tool, release metal clips.
    GNSALJIA0439Z-439Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip
  2. Remove instrument lower panel LH finisher (1).
