Removal and Installation: Removal

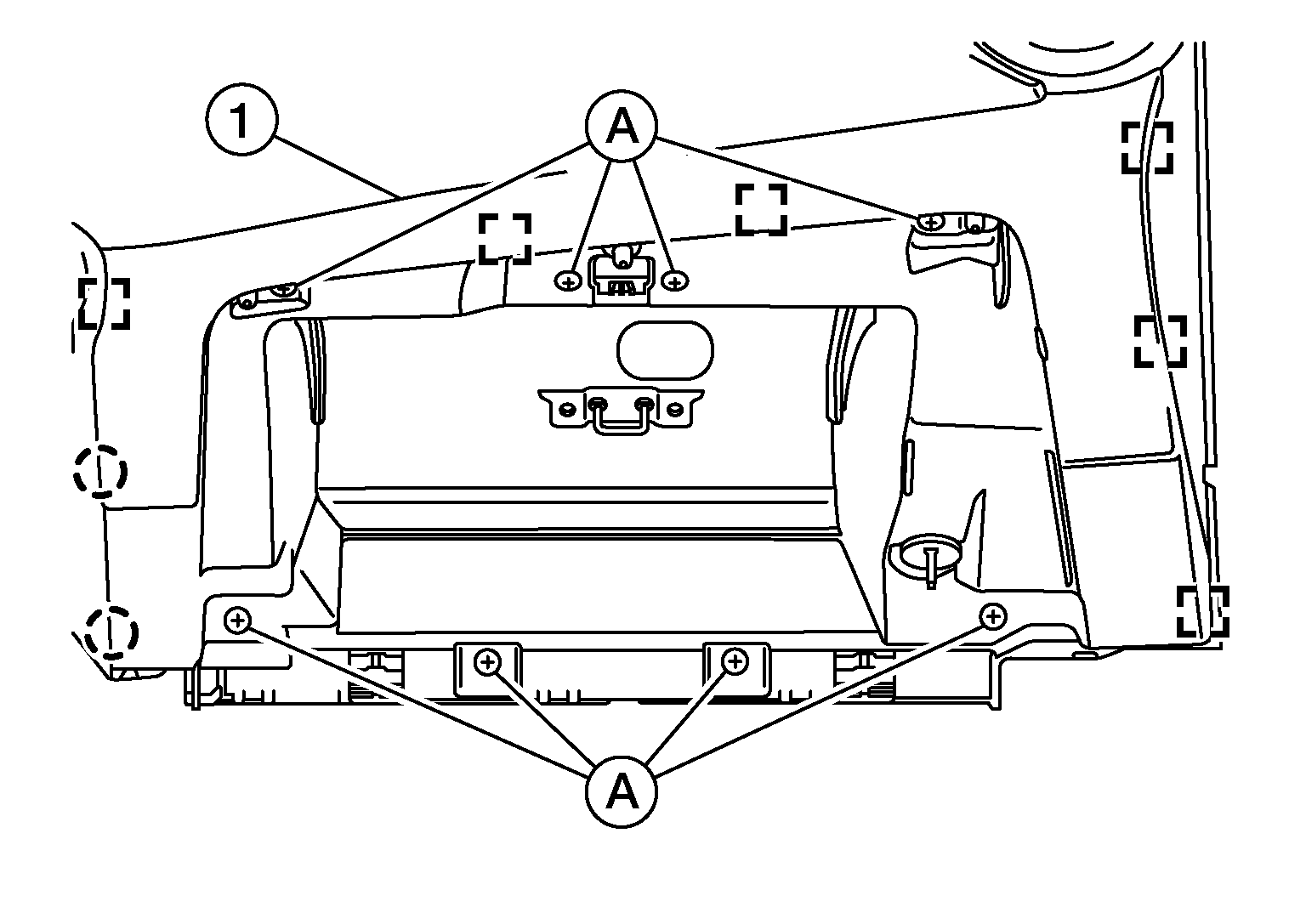

Remove screws (A).

NOTE: Glove box lid not shown in illustration, for location of screws, metal clips, and pawls.

Courtesy of NISSAN NORTH AMERICA, INC.

	: Pawl
	: Metal clip

Using a suitable tool, release metal clips and pawls.
Disconnect harness connector and remove glove box assembly housing (1).

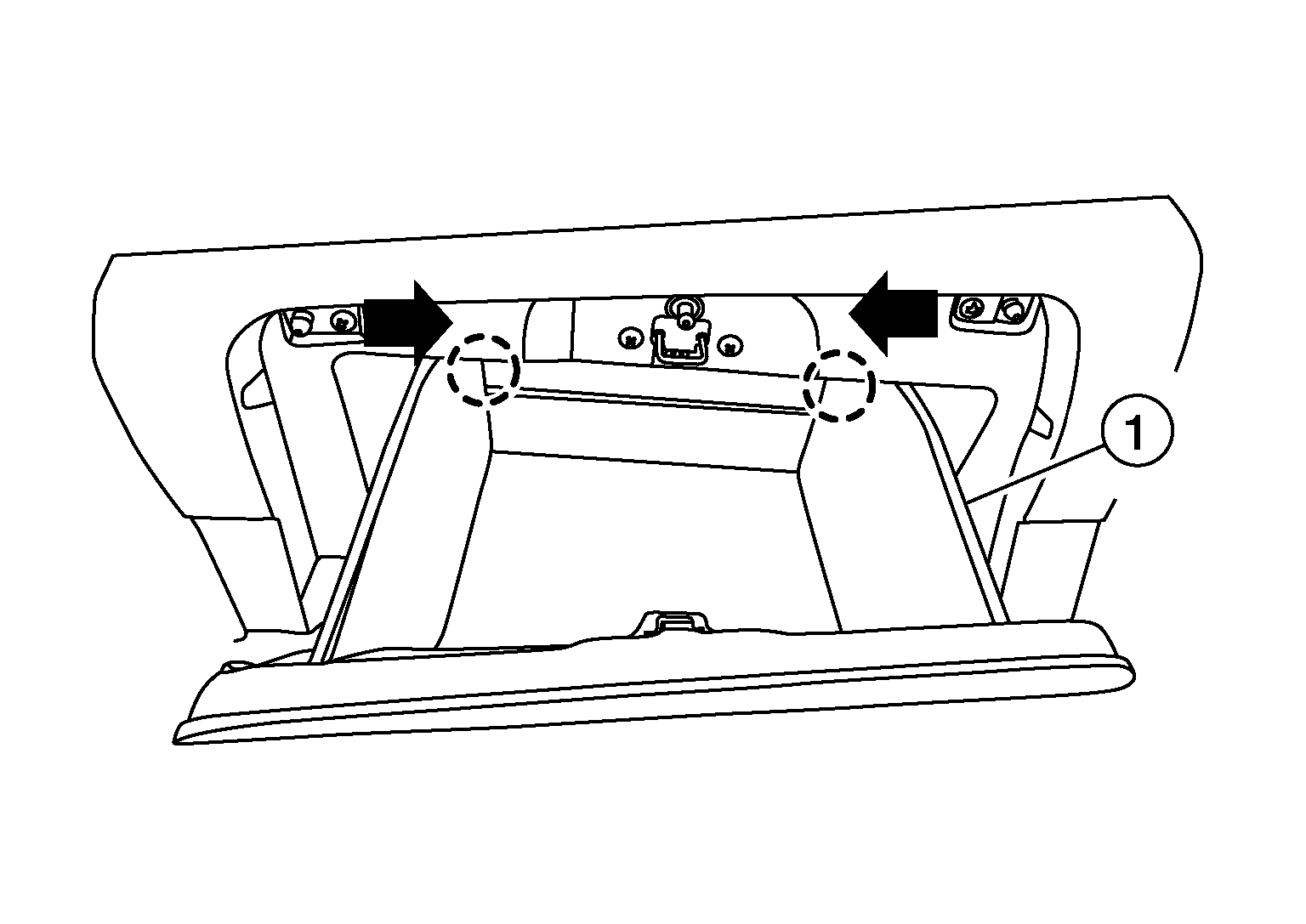

Press inward as shown in illustration and release glove box lid (1) pawls.

: Pawl

Courtesy of NISSAN NORTH AMERICA, INC.

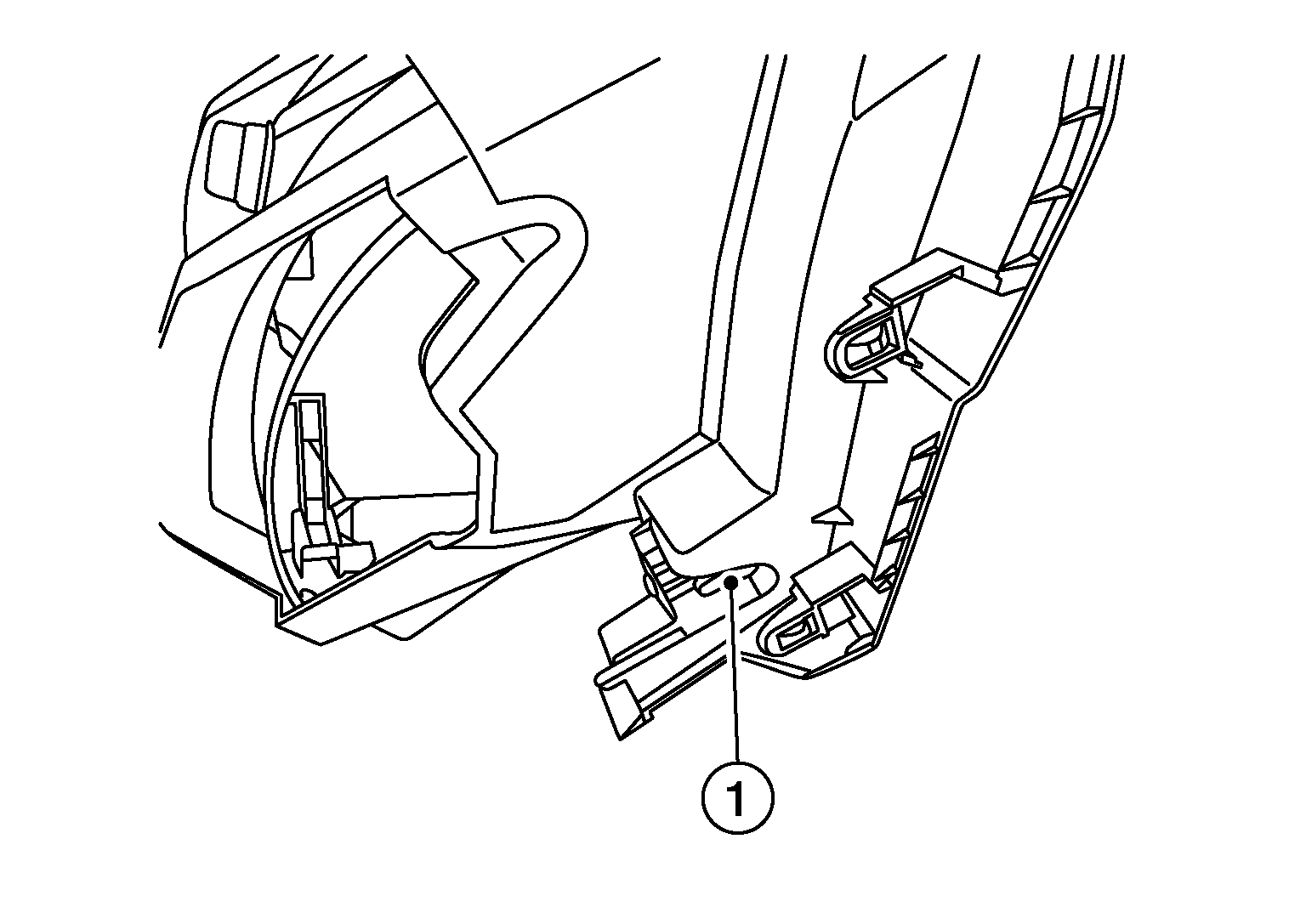

Using suitable tool, release pins (1) and remove glove box lid.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: LH shown in illustration; RH similar.
