Removal and Installation: Removal

  1. Remove instrument lower panel LH. Refer to Removal and Installation .
  2. Remove instrument finisher B. Refer to Removal and Installation .
  3. Remove instrument finisher A. Refer to Removal and Installation .

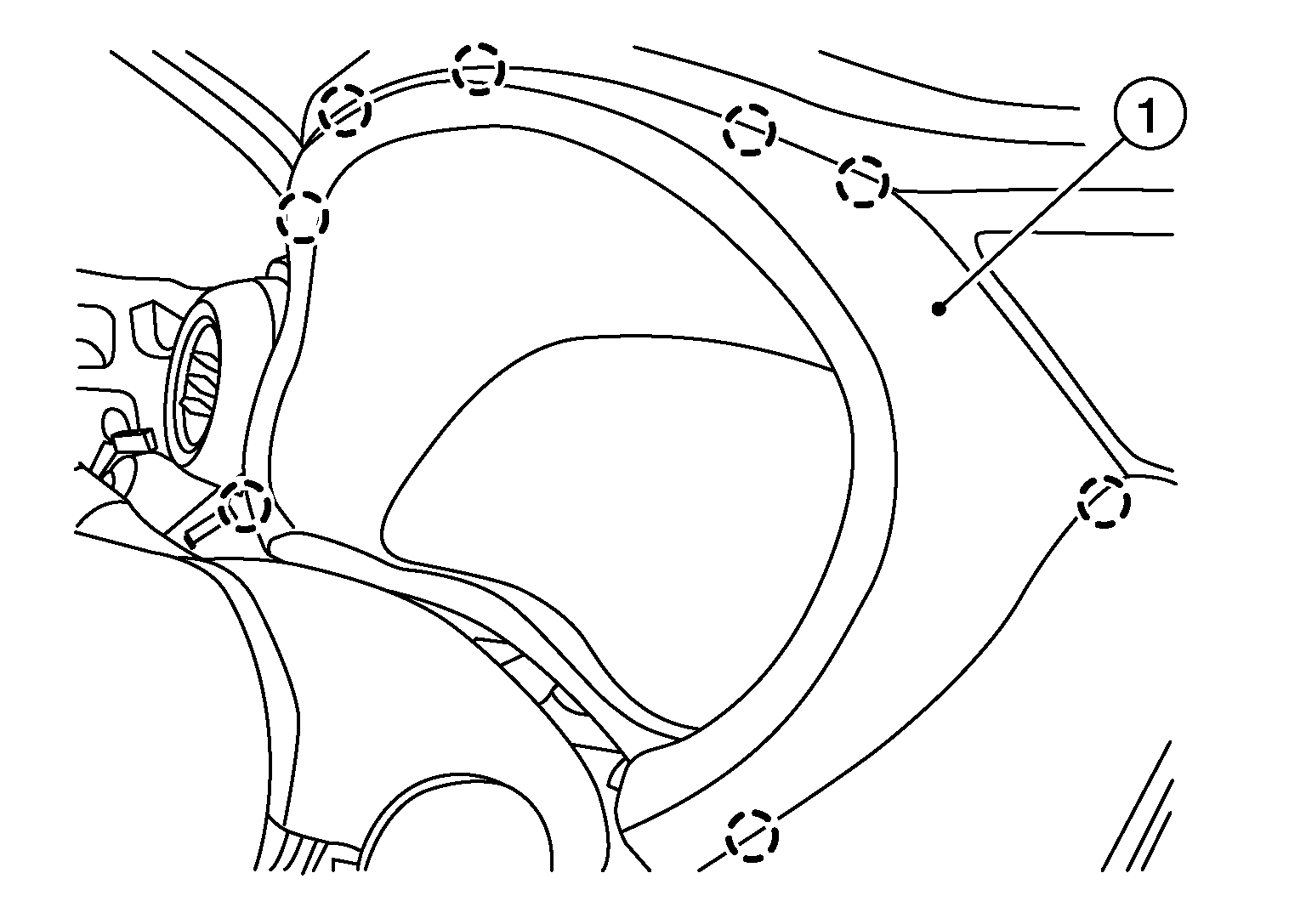

  4. Using a suitable tool, release pawls and remove cluster lid A (1).
    GNSAWJIA0359Z-359Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
