Removal and Installation: Removal
- Remove center console assembly. Refer to Removal and Installation .
- Disconnect harness connector from front auxiliary input jacks.
- Disconnect harness connector from front console power socket.
- Remove instrument finisher B. Refer to Removal and Installation .

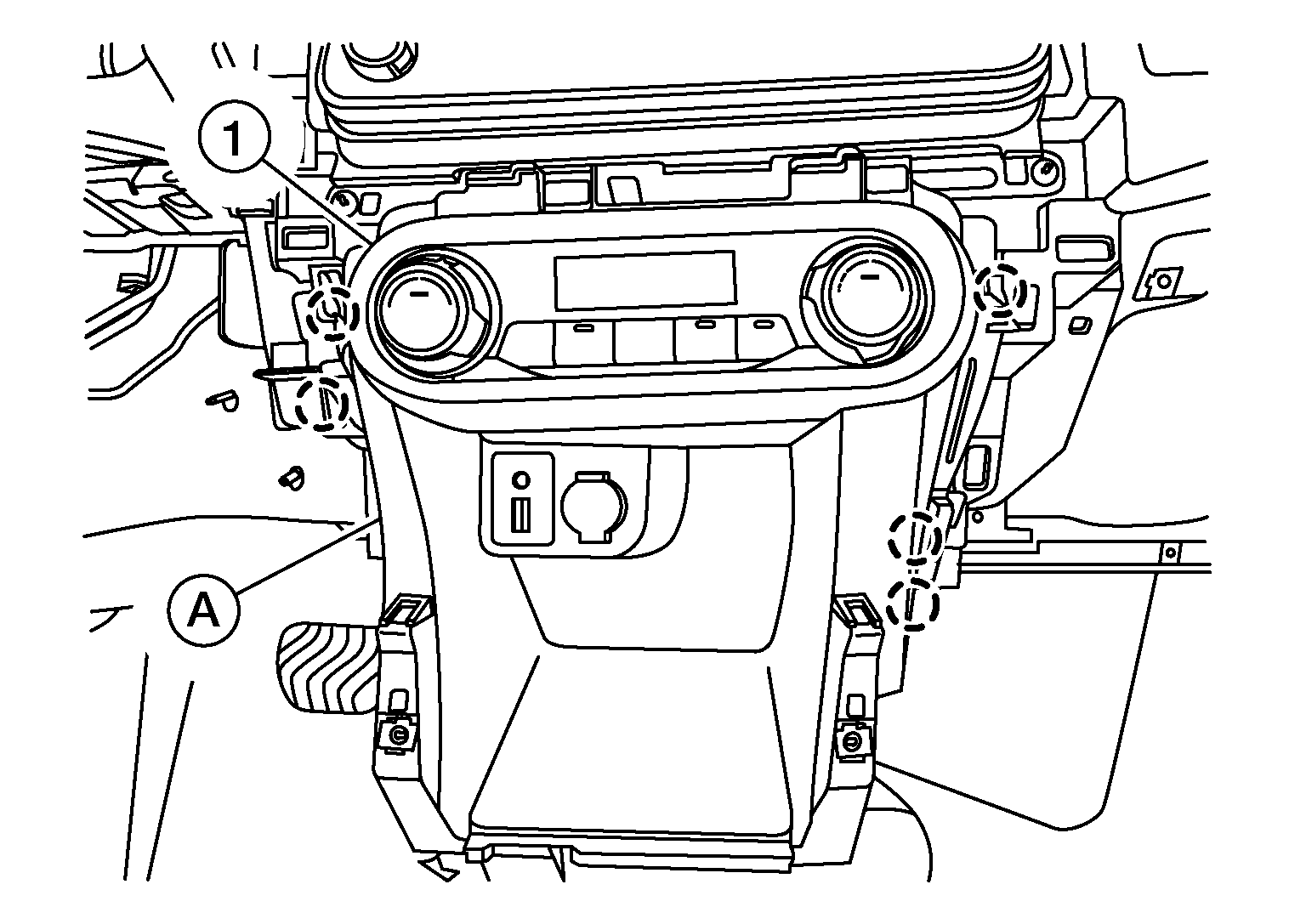

- Using a suitable tool, release pawls, remove screw (A) and remove center console upper (1).
: Pawl
