SUSPENSION ARM : Exploded View

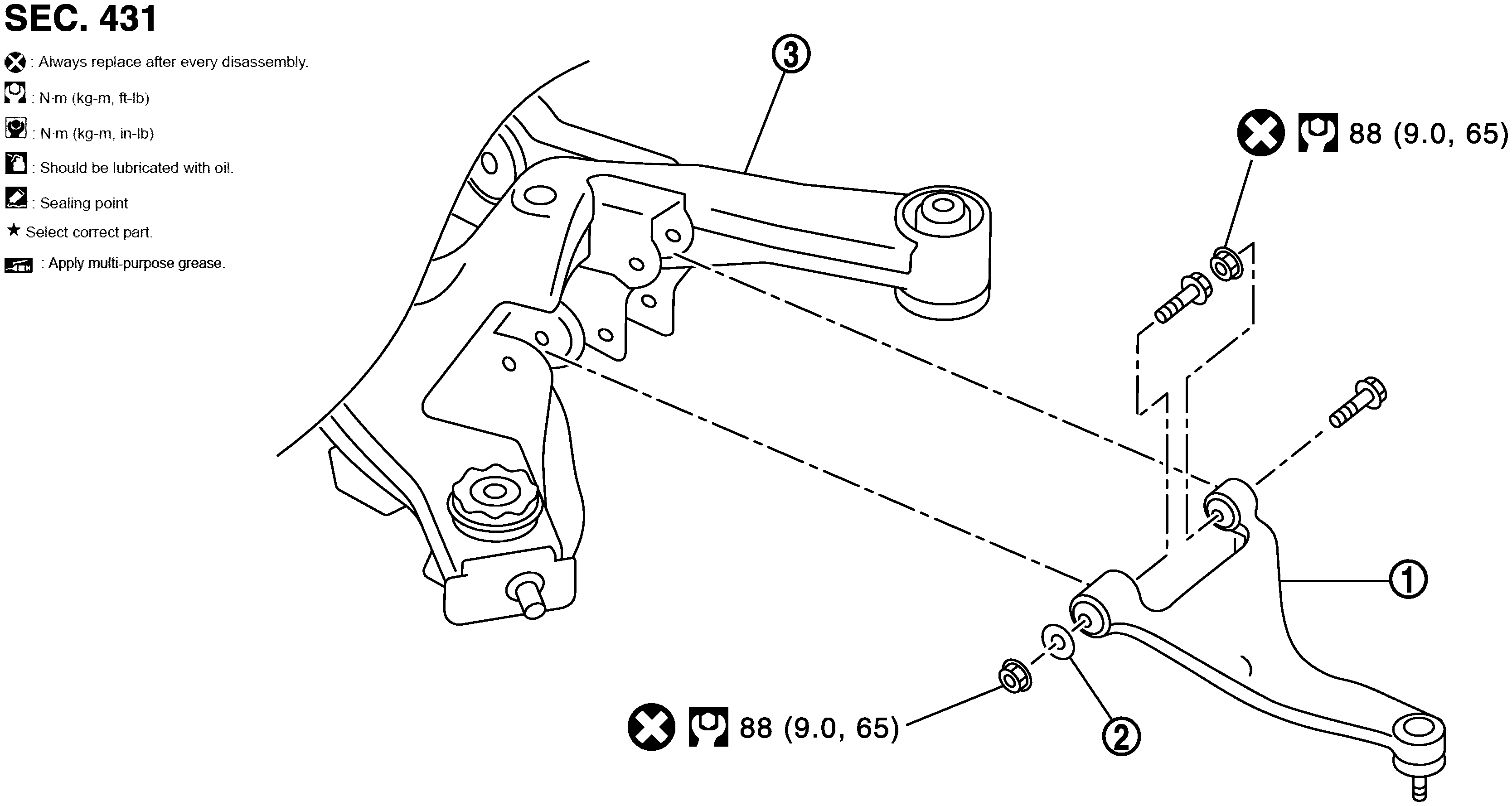

Fig 1: Suspension Arm With Torque Specifications
GNSJPEIB0191GB-191Courtesy of NISSAN NORTH AMERICA, INC.

1.

Suspension arm

2.

Stopper rubber

3.

Rear suspension member

Refer to HOW TO USE THIS INFORMATION : Repair Information . for symbols in the figure.
