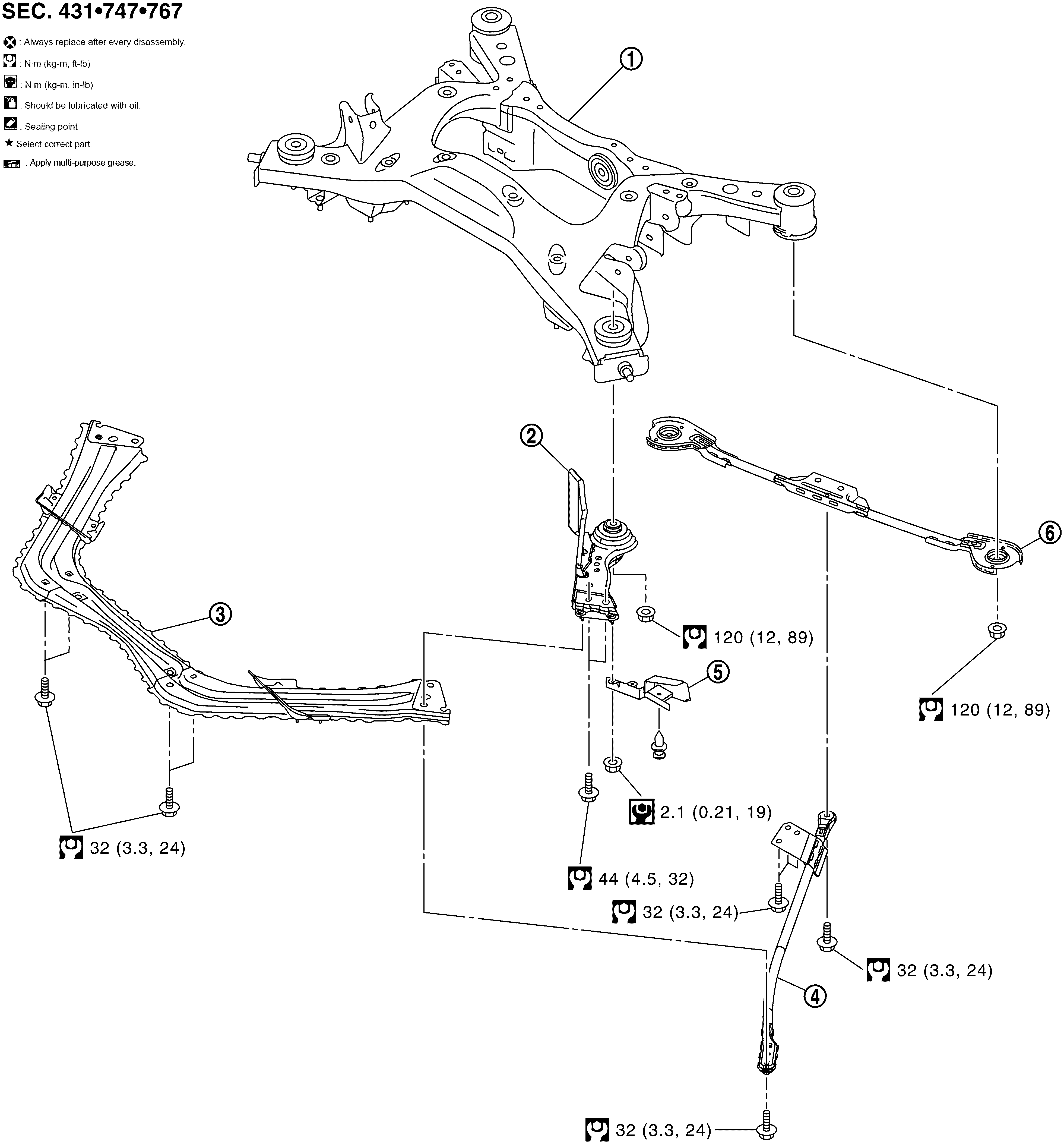

REAR SUSPENSION MEMBER : Exploded View

Fig 1: Rear Suspension Member With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear suspension member	2.	Rear suspension member stay	3.	Tunnel stay
4.	Diag brace	5.	Deflector mudguard	6.	Pin stay
Refer to HOW TO USE THIS INFORMATION : Repair Information . for symbols in the figure.
